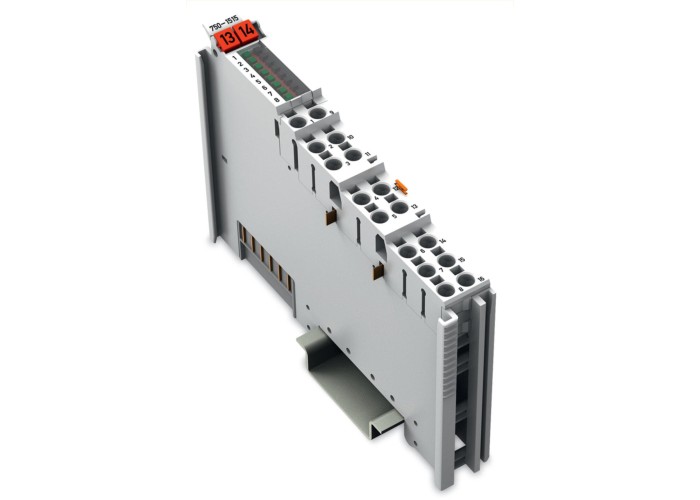

8-канален цифров изход, 24 VDC, 0,5 A, 2-проводна връзка, Wago 750-1515

Детайлна информация

Number of digital outputs8

Total number of channels (module)8

Signal typeDigital

Signal type (voltage)24 VDC

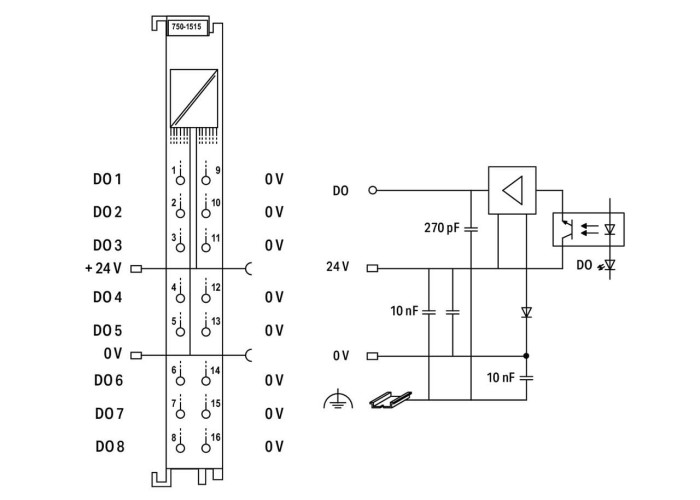

Actuator connection8 x (2-wire)

Output characteristicкомутиране по фаза

Output current per channel0,5A

Output currentзащита от късо съединение

Load typeResistive, inductive, lamp load

Switching frequency (max.)1 kHz

Output data width (internal) max.8Bit

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)20mA

Supply voltage (field)24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

Current consumption, field supply (module with no external load)15mA

Isolation500 V system/field

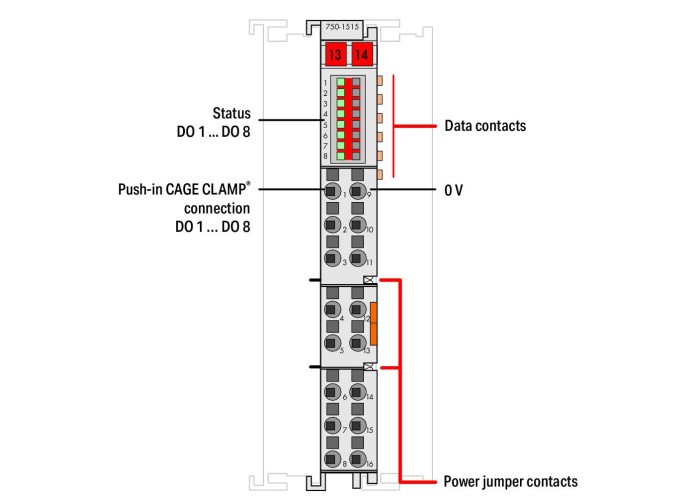

IndicatorsLED (1-8) green: Status DO 1 … DO 8

Number of incoming power jumper contacts2

Number of outgoing power jumper contacts2

Current carrying capacity (power jumper contacts)10A

Connection technology: inputs/outputs16 x Push-in CAGE CLAMP (wyjścia)

Connectable conductor materialsCopper

Connection typeOutput

Solid conductor0,08 … 1,5 mm² / 28 … 16 AWG

Fine-stranded conductor0,25 … 1,5 mm² / 22 … 16 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Width12 mm / 0.472 inches

Height100 mm / 3.937 inches

Depth69 mm / 2.717 inches

Depth from upper-edge of DIN-rail61,8 mm / 2.433 inches
