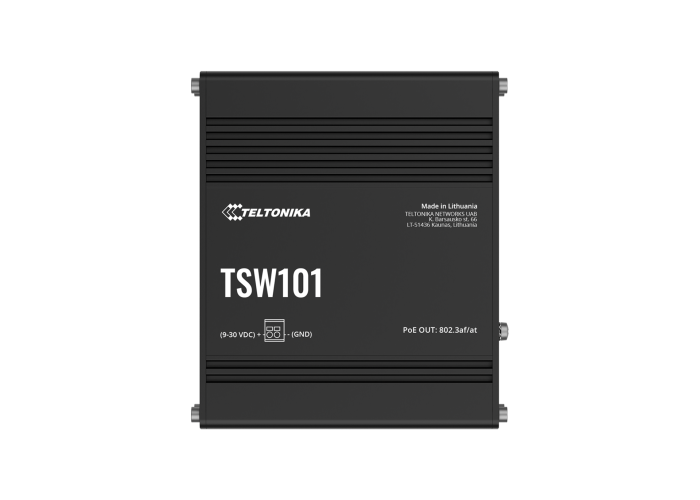

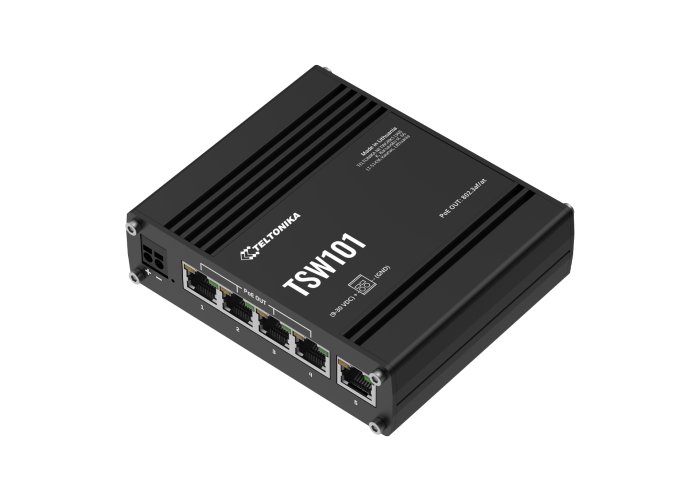

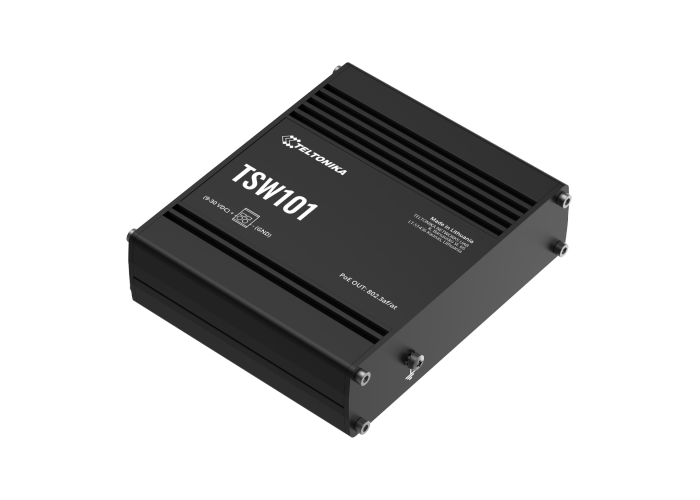

Индустриален суич, 4 x PoE+ ports, 5 x ETH ports, 4 x PoE+ ports, Teltonika TSW101

Детайлна информация

INDUSTRIAL PROTOCOLS

ProfinetProfinet Class A conformance (available with optional order code)

Ethernet

ETH5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

PoE+ portsPort 1 - 4

PoE standardsIEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A

PoE Max Power per Port (at PSE)30 W

Total PoE Power Budget (at PSE)60 W

Maximum Ethernet cable length100 m

Power

Connector2-pin industrial DC power socket

Input voltage range9 – 30 VDC

PoE-Out input voltage range9 – 30 VDC

Power consumptionIdle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W

PSU12 V or 24 V car battery-powered. No additional PSU is required.

Physical Interfaces

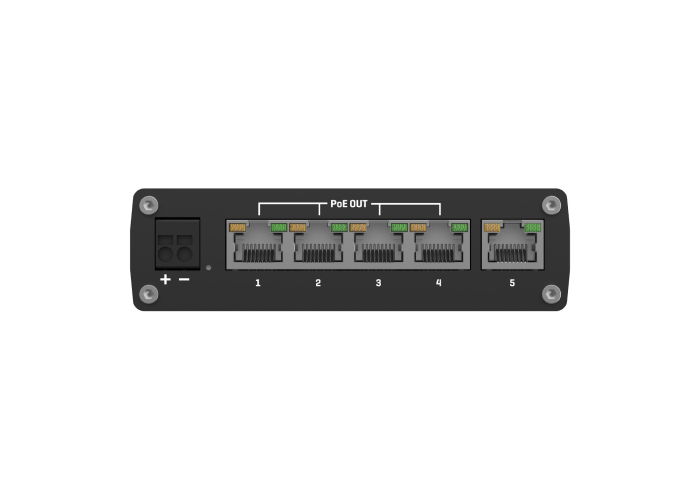

Ethernet5 x RJ45 ports, 10/100/1000 Mbps

Status LEDs1 x Power LED, 10 x ETH status LEDs

Power1 x 2-pin industrial DC power socket

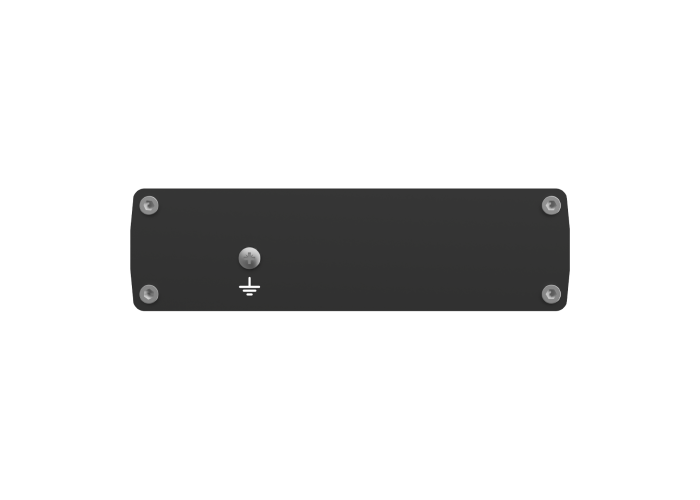

Other1 x Grounding screw

Physical Specification

Casing materialAluminium housing

Dimensions (W x H x D)115 x 32 x 95 mm

Weight384 g

Mounting optionsDIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature-40 °C to 75 °C

Operating humidity5% to 95% non-condensing

Ingress Protection RatingIP30

Regulatory & Type Approvals

RegulatoryCE, REACH, RoHS, WEEE

TSW101 CE

TSW101 UKCA

TSW101 FCC

TSW101 IC

TSW101 CB

TSW101 RCM

E-Mark

EMC Emissions & Immunity

StandardsEN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

ESDEN 61000-4-2:2009

Radiated ImmunityEN IEC 61000-4-3:2020

EFTEN 61000-4-4:2012

Surge immunity (AC Power Line)EN 61000-4-5:2014 + A1:2017

CSEN 61000-4-6:2014

Safety

StandardsCE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018

Performance Specifications

Bandwidth (Non-blocking)10 Gbps

Packer buffer128 KB

MAC address table size2K entries

Jumbo frame support9216 bytes
