Мрежов преобразувател 4G/LTE CAT M1/CAT NB1, NB2/EGPRS, 450 MHz Band, Dual SIM, RS232 / RS485, RutOS, Teltonika TRB256

Детайлна информация

Mobile

Mobile module4G LTE Cat M1 up to 588 DL/ 1119 UL kbps, Cat NB2 up to 127 DL/158.5 UL kbps, Cat NB1 up to 32 DL/70 UL kbps (simultaneous operation of cellular and GNSS connectivity is not supported)

3GPP ReleaseRelease 14

SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail

StatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Black/White listOperator black/white list (by country or separate operators)

Band managementBand lock, Used band status display

SIM idle protection serviceWhen working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

SIM PIN code managementSIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APNAuto APN

BridgeDirect connection (bridge) between mobile ISP and device on LAN

PassthroughGateway assigns its mobile WAN IP address to another device on LAN

Ethernet

Ethernet1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

FirewallPort forward, traffic rules, custom rules, TTL target customisation

Firewall status pageView all your Firewall statistics, rules, and rule counters

Ports managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topologyVisual representation of your network, showing which devices are connected to which other devices

HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNSSupported >25 service providers, others can be configured manually

DNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backupVRRP, Wired options, each of which can be used as an automatic Failover, Mobile

SSHFSPossibility to mount remote file system via SSH protocol

Traffic ManagementReal-time monitoring, wireless signal charts, traffic usage history

Security

AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

FirewallPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLANTag-based VLAN separation

Mobile quota controlMobile data limit, customizable period, start time, warning limit, phone number

WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access controlFlexible access control of SSH, Web interface, CLI and Telnet

SSL certificate generationLet's encrypt support

VPN

OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GREGRE tunnel, GRE tunnel over IPsec support

PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTPSSTP client instance support

ZeroTierZeroTier VPN client support

WireGuardWireGuard VPN client and server support

TincTinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNET

Supported modesRouter

Supported connection typesRS485, TCP

OPC UA

Supported modesClient, Server

Supported connection typesTCP

MODBUS

Supported modesServer, Client

Supported connection typesRTU (RS232, RS485), TCP

Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

ProtocolHTTP(S), MQTT, Azure MQTT, Kinesis

Data to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modesStation, Outstation

Supported connection typesRS232, RS485, TCP

DLMS

DLMS SupportDLMS - standard protocol for utility meter data exchange. Support trough serial and TCP

Supported modesClient

Supported connection typesRS232, RS485, TCP

API

Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.

Monitoring & Management

WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTAFirmware update from server, automatic notification

SSHSSH (v1, v2)

SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET

CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTTMQTT Broker, MQTT publisher

SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPCManagement API over HTTP/HTTPS

RMSTeltonika Remote Management System (RMS)

IoT Platforms

ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT CoreUtility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPUMediatek, 580 MHz, MIPS 24KEc

RAM128 MB

FLASH storage16 MB

Firmware / Configuration

WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup

FOTAUpdate FW

RMSUpdate FW/configuration for multiple devices at once

Keep settingsUpdate FW without losing current configuration

Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating systemRutOS (OpenWrt based Linux OS)

Supported languagesBusybox shell, Lua, C, C++

Development toolsSDK package with build environment provided

GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package ManagerThe Package Manager is a service used to install additional software on the device

Location Tracking

GNSSGPS. (GLONASS, BeiDou, Galileo and QZSS - under development); (simultaneous operation of GNSS and cellular connectivity is not supported)

CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS

NMEANMEA 0183

NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server softwareSupported server software TAVL, RMS

GeofencingConfigurable multiple geofence zones

Serial

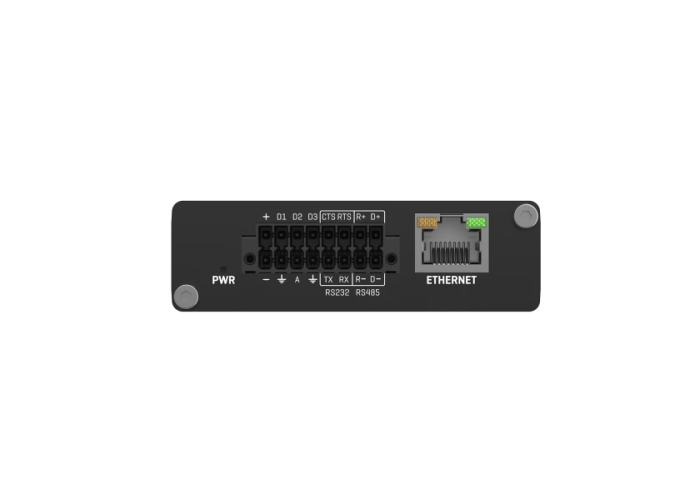

RS232Terminal block connector: TX, RX, RTS, CTS

RS485Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)

Serial functionsConsole, Serial over IP, Modem, MODBUS gateway, NTRIP Client

Input / Output

Input3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V)

Output3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA

EventsEmail, RMS, SMS

I/O jugglerAllows to set certain I/O conditions to initiate event

Power

Connector2-pin in 16-pin industrial terminal block

Input voltage range9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max

Power consumptionIdle:
