Мрежов преобразувател, 4G LTE Cat 4, Dual SIM, LTE 450 MHz, IP30, RutOS, Teltonika TRB236

Детайлна информация

Важно*

Забележка*Всички изображения и визуализации са предоставени само за илюстрация и представляват версията на продукта, съответстваща на код за поръчка TRB236 0*****

Mobile

Mobile module*4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps

*Feature availability varies by order code (TRB236 0*****)

Mobile module**4G LTE Cat 1 up to 10 DL/5 UL Mbps; 2G up to 236.8 DL/236.8 UL Kbps

**Feature availability varies by order code (TRB236 A*****)

3GPP ReleaseRelease 9

StatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMSSMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSDSupports sending and reading Unstructured Supplementary Service Data messages

Block/Allow listOperator block/allow list (by country or separate operators)

Multiple PDNPossibility to use different PDNs for multiple network access and services

Band managementBand lock, Used band status display

SIM idle protection serviceProvides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

SIM PIN code managementSIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APNAuto APN

BridgeDirect connection (bridge) between mobile ISP and device on LAN

PassthroughGateway assigns its mobile WAN IP address to another device on LAN

Ethernet

Ethernet1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

FirewallPort forward, traffic rules, custom rules, TTL target customisation

Firewall status pageView all your Firewall statistics, rules, and rule counters

Port managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topologyVisual representation of your network, showing which devices are connected to which other devices

HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNSSupported >77 service providers, others can be configured manually

DNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backupMobile, VRRP, Wired options, each of which can be used as an automatic Failover

SSHFSPossibility to mount remote file system via SSH protocol

Traffic ManagementReal-time monitoring, wireless signal charts, traffic usage history

Security

AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

FirewallPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLANTag-based VLAN separation

Mobile quota controlMobile data limit, customizable period, start time, warning limit, phone number

WEB filterBlock list for blocking out unwanted websites, allow list for specifying allowed sites only

Access controlFlexible access control of SSH, Web interface, CLI and Telnet

Certificate ManagerCertificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN

OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GREGRE tunnel, GRE tunnel over IPsec support

PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTPSSTP client instance support

ZeroTierZeroTier VPN client support

WireGuardWireGuard VPN client and server support

TincTinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BacNET

Supported modesRouter

Supported connection typesRS485

Configuration optionsSupport for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA

Supported modesClient, Server

Supported connection typesTCP

MODBUS

Supported modesServer, Client

Supported connection typesRTU (RS232, RS485), TCP

Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

ProtocolHTTP(S), MQTT, Azure MQTT

Data to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modesStation, Outstation

Supported connection typesRS232, RS485, TCP

DLMS/COSEM

DLMS SupportDLMS - standard protocol for utility meter data exchange. Support trough serial and TCP

Supported modesClient

Supported connection typesRS232, RS485, TCP

API

Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.

Monitoring & Management

WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTAFirmware update from server, automatic notification

SSHSSH (v1, v2)

SMSSMS status, SMS configuration

CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTTMQTT Broker, MQTT publisher

SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPCManagement API over HTTP/HTTPS

RMSTeltonika Remote Management System (RMS)

IoT Platforms

ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT CoreUtility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPUMediatek, 580 MHz, MIPS 24KEc

RAM128 MB

FLASH storage16 MB

Firmware/Configuration

WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup

FOTAUpdate FW

RMSUpdate FW/configuration for multiple devices at once

Keep settingsUpdate FW without losing current configuration

Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating systemRutOS (OpenWrt based Linux OS)

Supported languagesBusybox shell, Lua, C, C++

Development toolsSDK package with build environment provided

GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package ManagerThe Package Manager is a service used to install additional software on the device

Serial

RS232Terminal block connector: TX, RX, RTS, CTS

RS485Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)

Serial functionsConsole, Serial over IP, Modem, MODBUS gateway, NTRIP Client

Input/Output

Input3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V)

Output3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA

EventsEmail, RMS, SMS

I/O jugglerAllows to set certain I/O conditions to initiate event

Power

Connector2-pin in 16-pin industrial terminal block

Input voltage range9–57 VDC, overvoltage protection 60 V max, reverse polarity protection 80 V max, surge protection with 64.4 V min / 71.2 V max breakdown voltage and 93.6 V maximum reverse voltage at 4.3 A maximum reverse surge current

Power consumptionIdle: < 2 W, Max: < 5 W

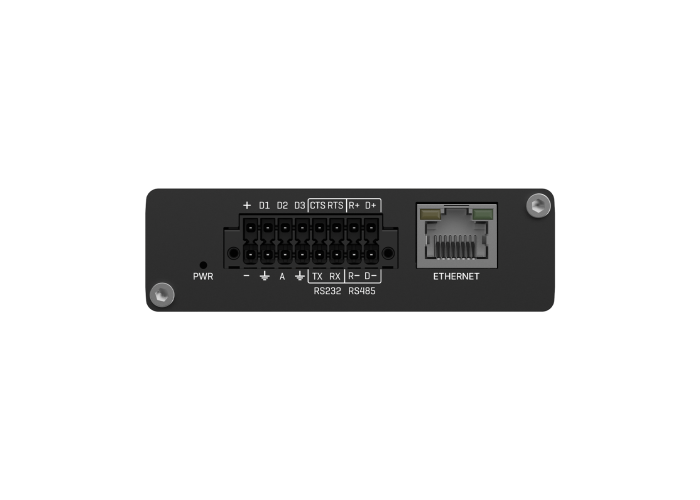

Physical Interfaces

Ethernet1 x RJ45 port, 10/100 Mbps

I/O’s3 x Configurable digital I/O in 16-pin terminal block

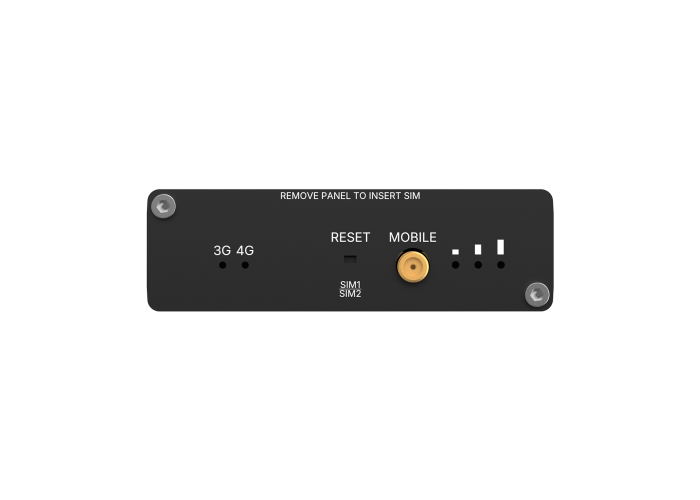

Status LEDs2 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x ETH port status LED

SIM2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray

Power1 x 16-pin terminal block

Antennas1 x SMA connector for Mobile

RS2324-pin in 16-pin terminal block (TX, RX, RTS, CTS)

RS4854-pin in 16-pin terminal block (D+, D-, R+, R-)

ResetReboot/User default reset/Factory reset button

Physical Specification

Casing materialAnodized aluminium housing and panels

Dimensions (W x H x D)83 x 25 x 79.8 mm

Weight175 g

Mounting optionsDIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature-40 °C to 75 °C

Operating humidity10% to 90% non-condensing

Ingress Protection RatingIP30

Regulatory & Type Approvals

RegulatoryCE, UKCA, EAC, UCRF, RCM, CB, WEE

EMC Emissions & Immunity

StandardsEN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2: 2019 + A1:2021

EN 61000-3-3: 2013 + A1:2019 + A2:2021

EN 301 489-1 V2.2.3

EN 301 489-19 V2.2.1

EN 301 489-52 V1.2.1

ESDEN 61000-4-2:2009

Radiated ImmunityEN IEC 61000-4-3:2020

EFTEN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 +A1:2017

CSEN 61000-4-6:2014

DIPEN 61000-4-11:2020

RF

StandardsEN 301 908-1 V15.2.1

EN 301 908-13 V13.2.1

EN 303 413 V1.2.1

Safety

StandardsCE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
