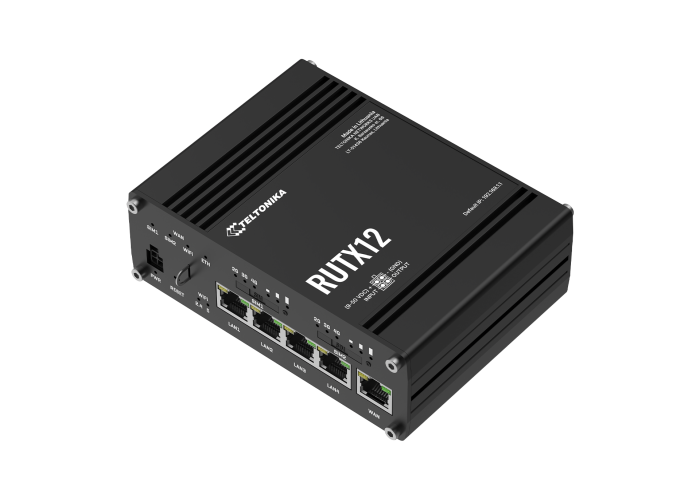

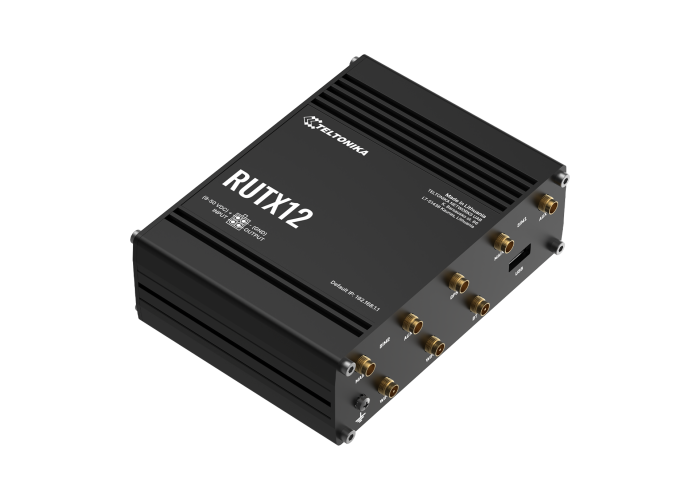

Висок клас индустриален LTE CAT 6 рутер, Dual LTE, Wi-Fi & BT 4.0, Dual SIM, VPN, RMS, Load balancing, RutOS, 600 Mbps, Teltonika RUTX12

Детайлна информация

Mobile

Mobile module2 x 4G LTE Cat 6 up to 300 DL/50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

3GPP ReleaseRelease 12

StatusIMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMSSMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSDSupports sending and reading Unstructured Supplementary Service Data messages

Block/Allow listOperator block/allow list (by country or separate operators)

Multiple PDNPossibility to use different PDNs for multiple network access and services

Band managementBand lock, Used band status display

SIM idle protection serviceProvides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

SIM PIN code managementSIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APNAuto APN

BridgeDirect connection (bridge) between mobile ISP and device on LAN

PassthroughRouter assigns its mobile WAN IP address to another device on LAN

Wireless

Wireless mode802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

Wi-Fi securityWPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSIDSSID stealth mode and access control based on MAC address

Wi-Fi usersUp to 150 simultaneous connections

Wireless Connectivity FeaturesWireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filterAllowlist, blocklist

Wireless QR code generatorOnce scanned, a user will automatically enter your network without needing to input login information

TravelMateForward Wi-Fi hotspot landing page to a subsequent connected device

Bluetooth

Bluetooth 4.0Bluetooth low energy (LE) for short range communication

Ethernet

WAN1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

FirewallPort forward, traffic rules, custom rules, TTL target customisation

Firewall status pageView all your Firewall statistics, rules, and rule counters

Port managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topologyVisual representation of your network, showing which devices are connected to which other devices

HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNSSupported >77 service providers, others can be configured manually

DNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancingBalance Internet traffic over multiple WAN connections

SSHFSPossibility to mount remote file system via SSH protocol

VRF supportInitial virtual routing and forwarding (VRF) support

Traffic ManagementReal-time monitoring, wireless signal charts, traffic usage history

Security

802.1xPort-based network access control client

AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

FirewallPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLANPort and tag-based VLAN separation

Mobile quota controlMobile data limit, customizable period, start time, warning limit, phone number

WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access controlFlexible access control of SSH, Web interface, CLI and Telnet

TPM*Identification and authentication module, TPM 2.0 standard

‎*Feature availability varies by order code

Certificate ManagerCertificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN

OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GREGRE tunnel, GRE tunnel over IPsec support

PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTPSSTP client instance support

ZeroTierZeroTier VPN client support

WireGuardWireGuard VPN client and server support

TincTinc offers encryption, authentication and compression in it's tunnels. Client and server support.

TailscaleTailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

Supported modesClient, Server

Supported connection typesTCP

MQTT Gateway

Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

MODBUS

Supported modesServer, Client

Supported connection typesTCP, USB

Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

ProtocolHTTP(S), MQTT, Azure MQTT

Data to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

DNP3

Supported modesStation, Outstation

Supported connectionTCP, USB

DLMS/COSEM

DLMS SupportDLMS - standard protocol for utility meter data exchange

Supported modesClient

Supported connection typesTCP, USB

API

Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.

Monitoring & Management

WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTAFirmware update from server, automatic notification

SSHSSH (v1, v2)

SMSSMS status, SMS configuration

CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTTMQTT Broker, MQTT publisher

SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPCManagement API over HTTP/HTTPS

RMSTeltonika Remote Management System (RMS)

IoT Platforms

ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT CoreUtility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPUQuad-core ARM Cortex A7, 717 MHz

RAM256 MB, DDR3

FLASH storage256 MB, SPI Flash

Firmware/Configuration

WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup

FOTAUpdate FW

RMSUpdate FW/configuration for multiple devices at once

Keep settingsUpdate FW without losing current configuration

Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating systemRutOS (OpenWrt based Linux OS)

Supported languagesBusybox shell, Lua, C, C++, and Python, Java in Package manager

Development toolsSDK package with build environment provided

GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package ManagerThe Package Manager is a service used to install additional software on the device

Location Tracking

GNSSGPS, GLONASS, BeiDou, Galileo and QZSS

CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS

NMEANMEA 0183

NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server softwareSupported server software TAVL, RMS

GeofencingConfigurable multiple geofence zones

USB

Data rateUSB 2.0

ApplicationsSamba share, USB-to-serial

External devicesPossibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formatsFAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input/Output

Input1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output1 x Digital Output, Open collector output, max output 30 V, 300 mA

EventsEmail, RMS, SMS

I/O jugglerAllows to set certain I/O conditions to initiate event

Power

Connector4-pin industrial DC power socket

Input voltage range9 - 50 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive)Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC

Power consumptionIdle: < 4 W, Max: < 22 W

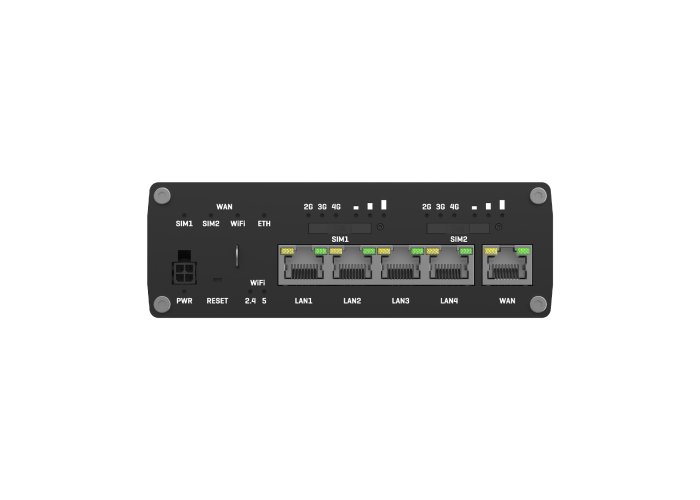

Physical Interfaces

Ethernet5 x RJ45 ports, 10/100/1000 Mbps

I/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

SIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

Power1 x 4-pin power connector

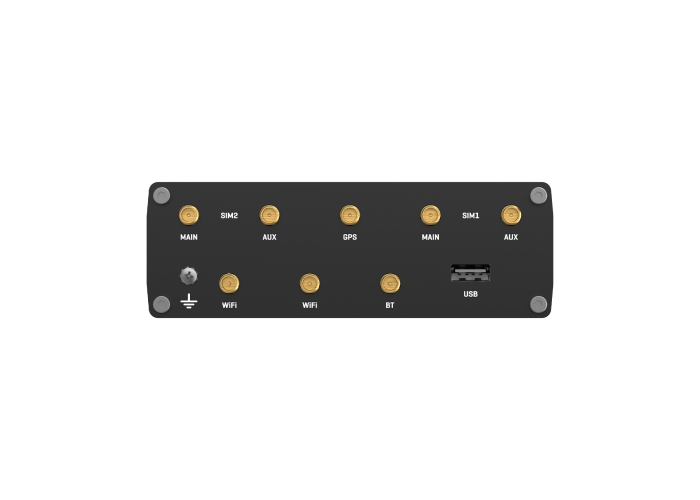

Antennas4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS

USB1 x USB A port for external devices

ResetReboot/User default reset/Factory reset button

Other1 x Grounding screw

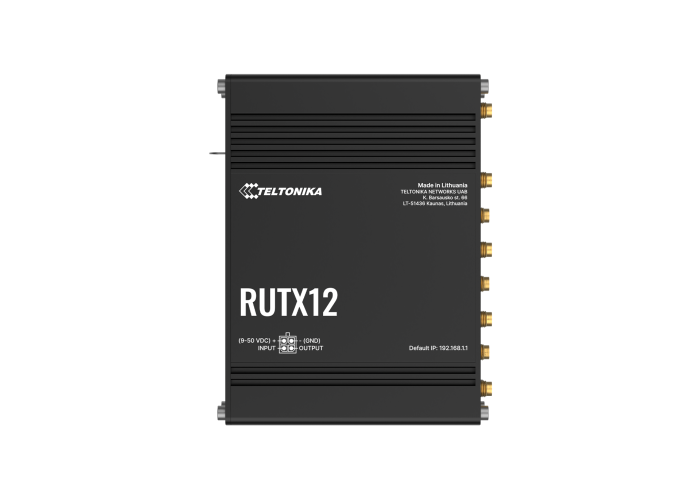

Physical Specification

Casing materialFull aluminium housing

Dimensions (W x H x D)132 x 44.2 x 95.1 mm

Weight540 g

Mounting optionsDIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature-40 °C to 75 °C

Operating humidity10% to 90% non-condensing

Ingress Protection RatingIP30

Regulatory & Type Approvals

RegulatoryCE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark

EMC Emissions & Immunity

StandardsEN 55032:2015

EN 55035:2017

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

EN 301 489-1:V2.2.3

EN 301 489-3 V2.1.1

EN 301 489-17:V3.2.4

EN 301 489-19 V2.1.1

Draft EN 301 489-52:V1.1.0

ESDEN 61000-4-2:2009

Radiated ImmunityEN IEC 61000-4-3:2006 + A1:2008 + A2:2010

EFTEN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 + A1:2017

CSEN 61000-4-6:2014

DIPEN 61000-4-11:2004 + A1:2017

RF

StandardsEN 300 328:V2.2.2

EN 300 440:V2.2.1

EN 301 893 V2.1.1

EN 301 908-1:V13.1.1

EN 301 908-2:V13.1.1

EN 301 908-13:V13.1.1

EN 303 413 V1.1.1

Safety

StandardsCE: EN IEC 62368-1:2020 + A11:2020

RCM: AS/NZS 62368.1:2018

CB: IEC 62368-1:2018
