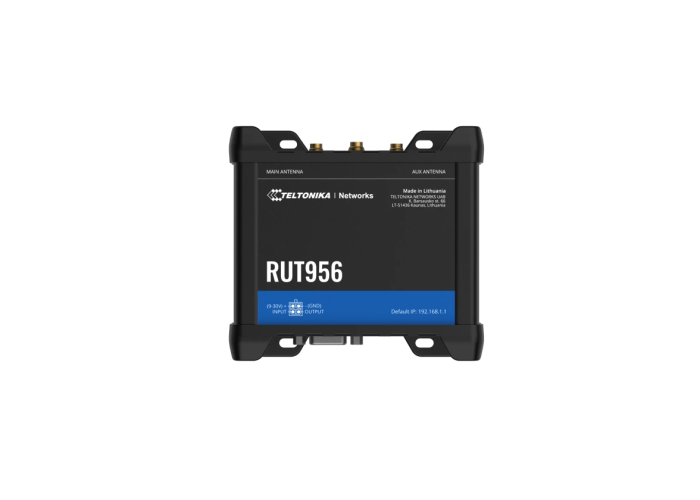

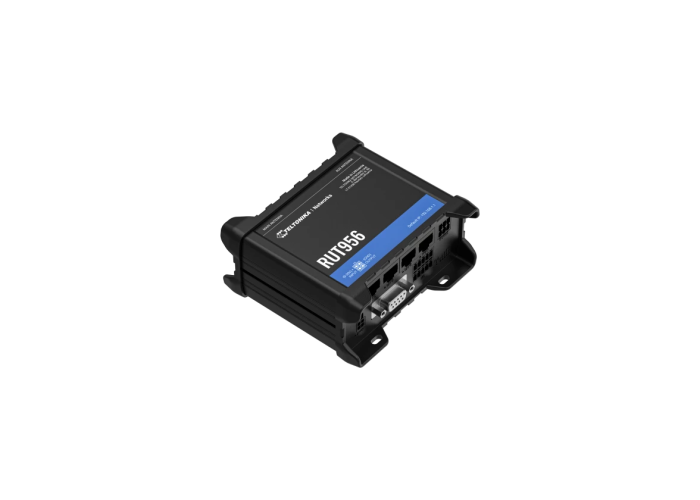

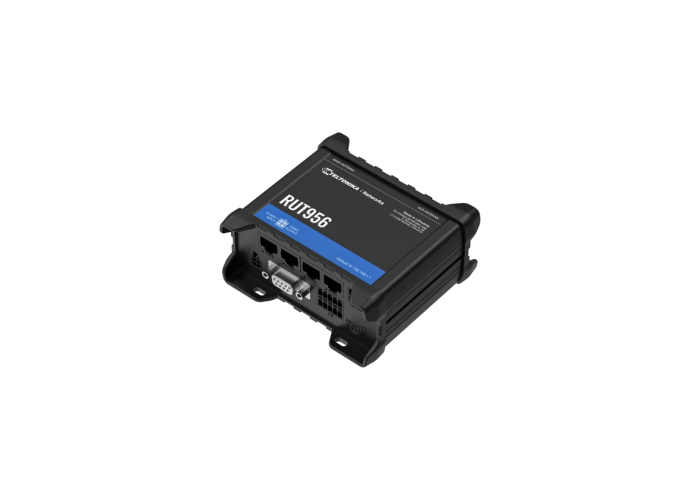

Индустриален клетъчен рутер, 4G LTE CAT 4, Dual SIM, Modbus, RS232, RS485, GNSS, RMS, Automatic WAN failover, RutOS, 4G (LTE-FDD): B1, B3, B7, B8, B20, B28A, with EU PSU, Teltonika RUT956

Детайлна информация

Mobile

Mobile module4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

3GPP ReleaseRelease 11

SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

StatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSDSupports sending and reading Unstructured Supplementary Service Data messages

Black/White listOperator black/white list (by country or separate operators)

Multiple PDNPossibility to use different PDNs for multiple network access and services

Band managementBand lock, Used band status display

SIM PIN code managementSIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APNAuto APN

BridgeDirect connection (bridge) between mobile ISP and device on LAN

PassthroughRouter assigns its mobile WAN IP address to another device on LAN

Wireless

Wireless mode802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

Wi-Fi securityWPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSIDSSID stealth mode and access control based on MAC address

Wi-Fi usersUp to 100 simultaneous connections

Wireless Connectivity FeaturesFast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filterAllowlist, blocklist

Network

HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

FirewallPort forward, traffic rules, custom rules, TTL target customisation

DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNSSupported >25 service providers, others can be configured manually

DNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancingBalance Internet traffic over multiple WAN connections

SSHFSPossibility to mount remote file system via SSH protocol

Traffic ManagementReal-time monitoring, wireless signal charts, traffic usage history

Ethernet

WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Security

AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

FirewallPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLANPort and tag-based VLAN separation

Mobile quota controlMobile data limit, customizable period, start time, warning limit, phone number

WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access controlFlexible access control of SSH, Web interface, CLI and Telnet

SSL certificate generationLet's encrypt support

VPN

OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GREGRE tunnel, GRE tunnel over IPsec support

PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTPSSTP client instance support

ZeroTierZeroTier VPN client support

WireGuardWireGuard VPN client and server support

TincTinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNET

Supported modesRouter

Supported connection typesRS485, TCP

OPC UA

Supported modesClient, Server

Supported connection typesTCP

MODBUS

Supported modesServer, Client

Supported connection typesRTU (RS232, RS485), TCP, USB

Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

ProtocolHTTP(S), MQTT, Azure MQTT, Kinesis

MQTT Gateway

Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modesStation, Outstation

Supported connection typesRS232, RS485, TCP, USB

DLMS

DLMS SupportDLMS - standard protocol for utility meter data exchange

Supported modesClient

Supported connection typesRS232, RS485, TCP

API

Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.

Monitoring & Management

WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTAFirmware update from server, automatic notification

SSHSSH (v1, v2)

SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET

CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTTMQTT Broker, MQTT publisher

SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPCManagement API over HTTP/HTTPS

RMSTeltonika Remote Management System (RMS)

IoT Platforms

ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System Characteristics

CPUMediatek, 580 MHz, MIPS 24KEc

RAM128 MB, DDR2

FLASH storage16 MB, SPI Flash

Firmware / Configuration

WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup

FOTAUpdate FW

RMSUpdate FW/configuration for multiple devices at once

Keep settingsUpdate FW without losing current configuration

Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating systemRutOS (OpenWrt based Linux OS)

Supported languagesBusybox shell, Lua, C, C++

Development toolsSDK package with build environment provided

GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package ManagerThe Package Manager is a service used to install additional software on the device

Location Tracking

GNSSGPS, GLONASS, BeiDou, Galileo and QZSS

CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS

NMEANMEA 0183

NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server softwareSupported server software TAVL, RMS

GeofencingConfigurable multiple geofence zones

Serial

RS232DB9 connector, RS232 (with RTS, CTS flow control)

RS485RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

Serial functionsConsole, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

Data rateUSB 2.0

ApplicationsSamba share, USB-to-serial

External devicesPossibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formatsFAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Input1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

Output1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

EventsEmail, RMS, SMS

I/O jugglerAllows to set certain I/O conditions to initiate event

SD CARD

Physical sizeMicro SD (internal)

ApplicationsSamba share, Storage Memory Expansion, DLNA

CapacityUp to 64 GB

Storage FormatsFAT32, NTFS, ext2, ext3, ext4

Power

Connector4-pin industrial DC power socket

Input voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

PoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption< 2 W idle, < 7 W Max

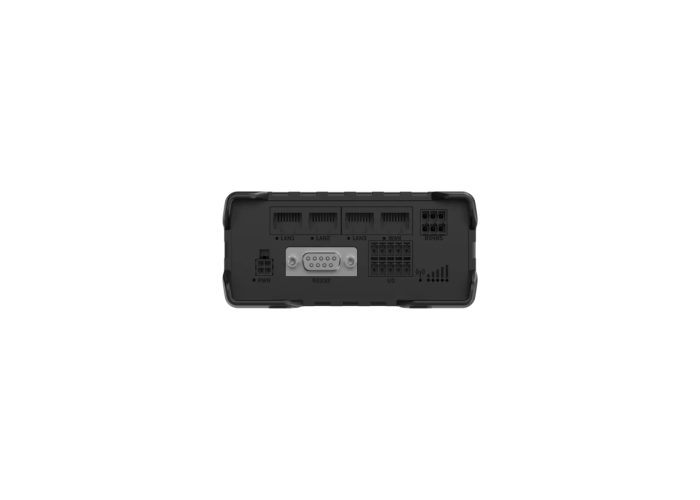

Physical Interfaces

Ethernet4 x RJ45 ports, 10/100 Mbps

I/O’s2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

Status LEDs1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)

Power1 x 4-pin power connector

Input/output1 x 10-pin industrial socket for inputs/outputs

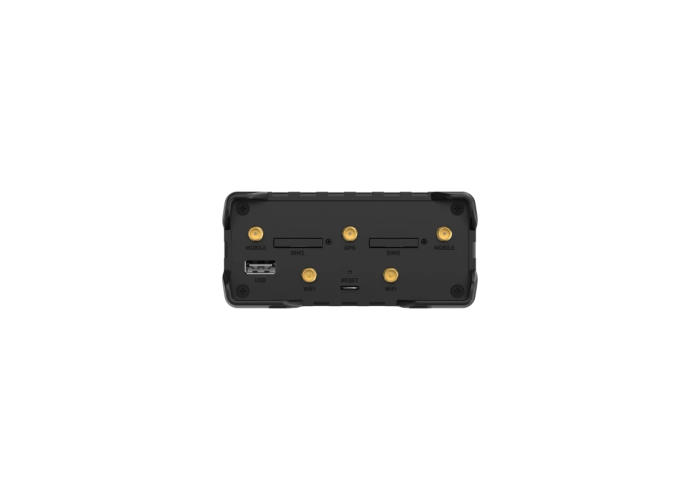

Antennas2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

USB1 x USB A port for external devices

RS2321 x DB9 socket

RS4851 x 6-pin industrial socket

ResetReboot/User default reset/Factory reset button

Physical Specification

Casing materialAluminium housing, plastic panels

Dimensions (W x H x D)110 x 50 x 100 mm

Weight287 g

Mounting optionsDIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature-40 °C to 75 °C

Operating humidity10% to 90% non-condensing

Ingress Protection RatingIP30

Regulatory & Type Approvals

RegulatoryCE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, Anatel, RCM, Giteki, IMDA, ECE R118, E-mark, UL/CSA Safety, CB, RoHS, REACH, NCC, C1D2

OperatorAT&T, Verizon, T-Mobile

EMC Emissions & Immunity

StandardsEN 55032:2015 + A11:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 301 489-19 V2.1.1

EN 301 489-52 V1.2.1

ESDEN 61000-4-2:2009

Radiated ImmunityEN 61000-4-3:2020

EFTEN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 + A1:2017

CSEN 61000-4-6:2014

DIPEN 61000-4-11:2020

RF

StandardsEN 300 328 V2.2.2

EN 301 511 V12.5.1

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 303 413 V1.1.1

Safety (Ordinary Locations)

StandardsCE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018

UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Safety (Hazardous Locations)

StandardsUL/CSA Safety: UL 121201, 9th Ed., Rev. April 1, 2021, CAN/CSA C22.2 No. 213, 3rd Ed. April 2021

Hazardous EnvironmentsClass I, Division 2, Groups A, B, C, D

Class I, Zone 2, Group IIC

-40°C ≤ Ta ≤ 75°C, T4, IP30
