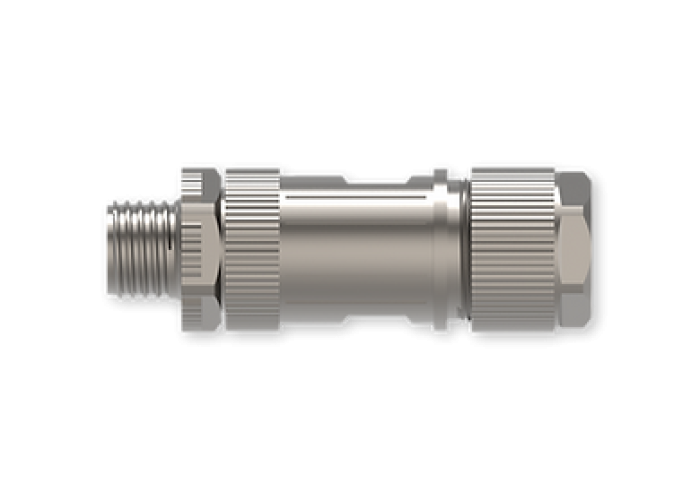

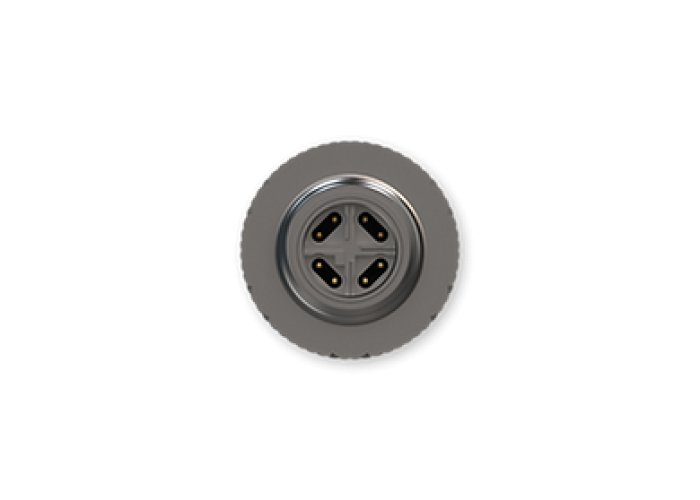

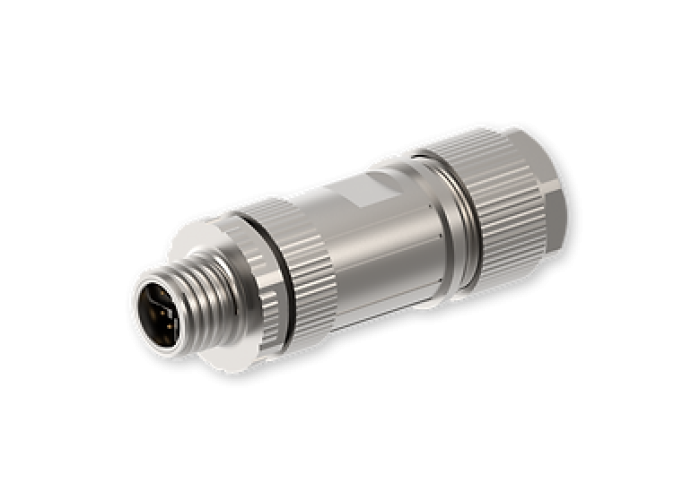

M12 X type 8-PIN male connector, Teltonika PR40118K

Детайлна информация

MECHANICAL/ENVIRONMENTAL

Voltage rating48V AC / 60V DC

Current carrying capacity0.5 A

Conductor cross section, solid wireAWG 26/1 - AWG 22/1

Conductor cross section, stranded wireAWG 26/7 - AWG 22/7

Temperature range-40 °C to +85 °C

Mounting methodScrewable (M12)

Insertion and withdrawal force≤ 30 N

Life - number of mating cycles≥ 100

IP ratingIP67 (when plugged in)

Housing materialGD-Zn (zinc die-cast)

Contact materialCuZnPb (brass)

Contact finish materialNi + Au (nickel-gold)

Shield materialCuSn (tin bronze)

Shield finish materialSn (tin)

Stuffer cap materialPA

Finish materialNi (nickel)

Weight47 g

RoHS✓ Да

REACH✓ Да
