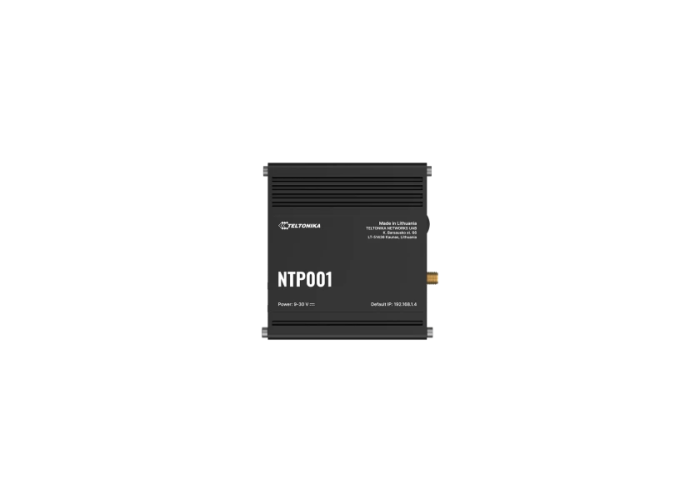

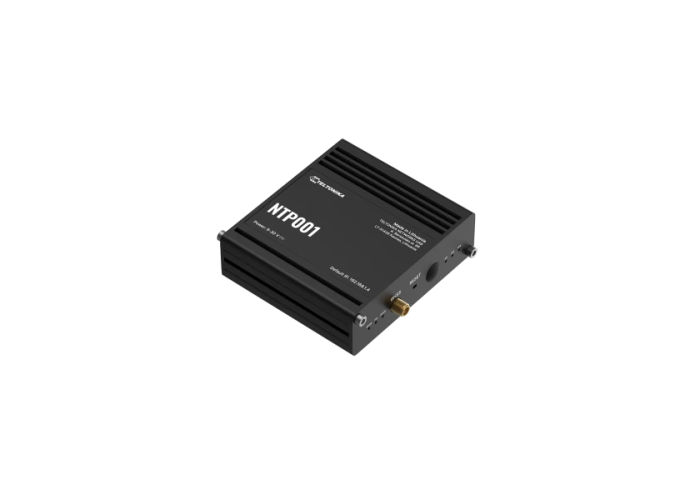

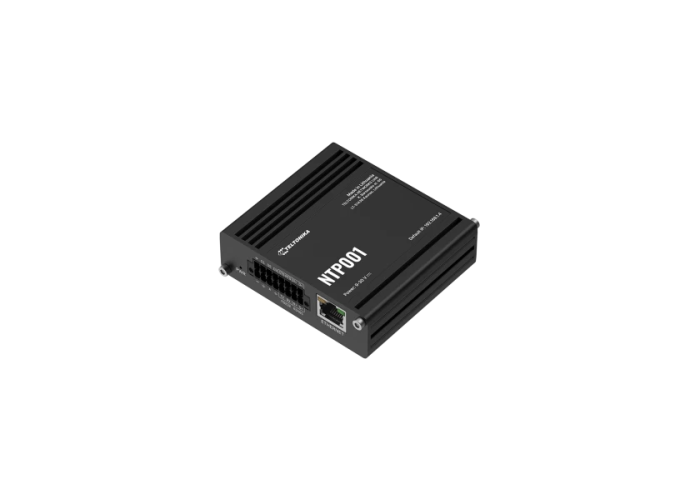

NTP Сървър, RS232, RS485, RutOS, Teltonika NTP001

Детайлна информация

Ethernet

LAN1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT

Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot

Network topologyVisual representation of your network, showing which devices are connected to which other devices

DDNSSupported >25 service providers, others can be configured manually

Security

AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access controlFlexible access control of SSH, Web interface, CLI and Telnet

802.1xPort-based network access control client

NTP

Supported modesServer - Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485)

Daytime ProtocolTCP/UDP

Date over SerialRS232/RS485

NTPNTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode

ProtocolNTP Stratum 1 Time Server (NTPv4)

NTP AccuracyEthernet NTP ±1ms overall

NTP Performance>300 NTP requests per second (wire speed)

Synchronization AccuracyLAN synchronization typically 1–10ms

MODBUS

Supported modesServer, Client

Supported connection typesRTU (RS232, RS485), TCP

Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT Gateway

Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

API

Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

SSHSSH (v1, v2)

SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPCManagement API over HTTP/HTTPS

MODBUSMODBUS TCP status/control

System Characteristics

CPUMediatek, 580 MHz, MIPS 24KEc

RAM128 MB, DDR2

FLASH storage16 MB, NOR Flash

Firmware / Configuration

WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup

Keep settingsUpdate FW without losing current configuration

Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating systemRutOS (OpenWrt based Linux OS)

Supported languagesBusybox shell (ash), Lua 5.1, C, C++

Development toolsSDK package with build environment provided

GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Location Tracking

GNSSGPS, GLONASS, BeiDou, Galileo and QZSS

Acquisition SensitivityAcquisition Sensitivity -146 dBm, Reacquisition Sensitivity -157 dBm, Tracking Sensitivity -157 dBm

AccuracyCEP-50 open sky 2.5 m

Time SourceGPS 1575.42 ±1.023 MHz, GLONASS 1597.5–1605.8 MHz, Galileo 1575.42 ±2.046 MHz, BDS 1561.098 ±2.046 MHz

StartupCold GPS acquisition in
