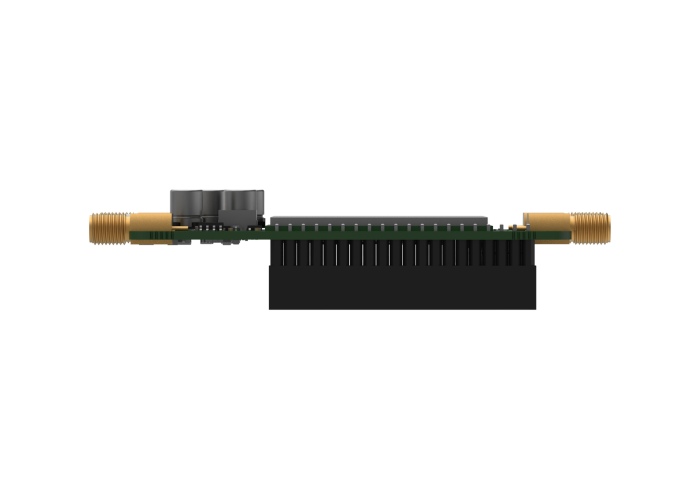

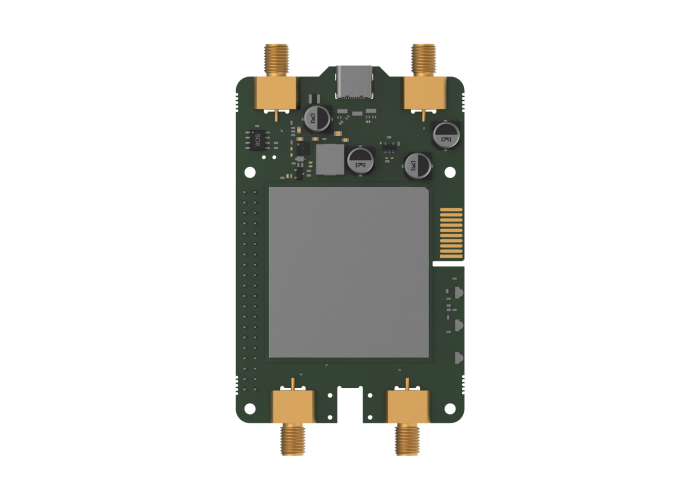

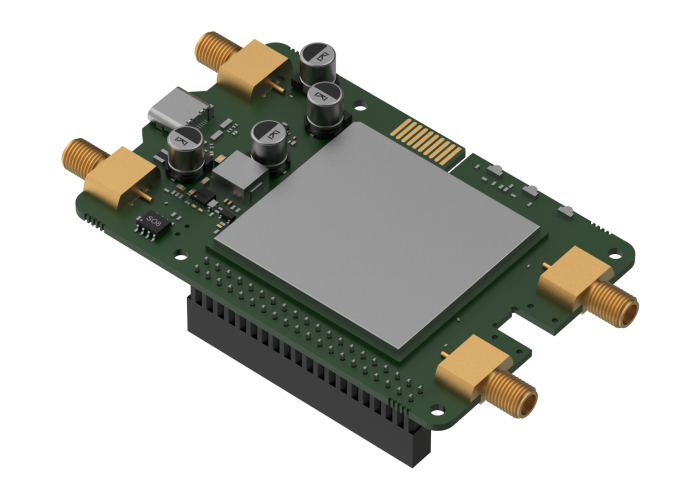

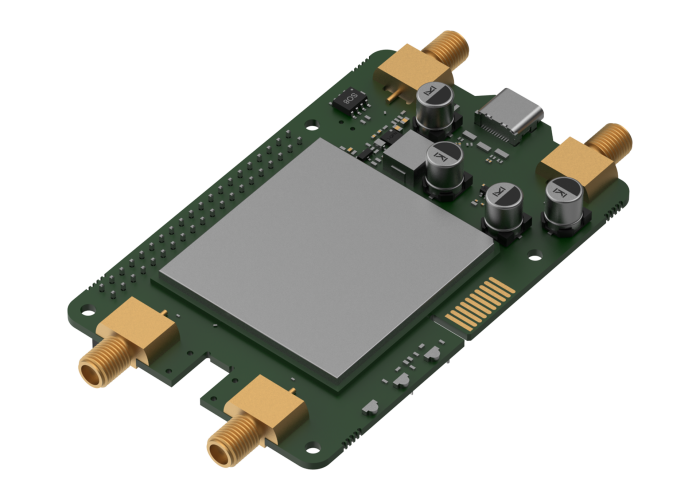

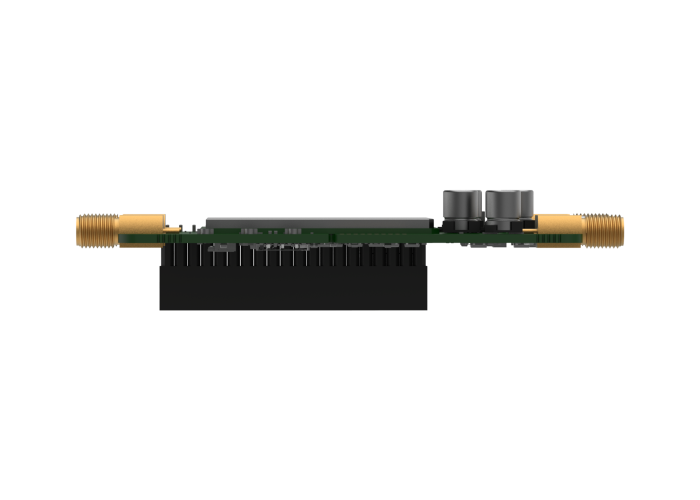

Calyx 4G Embedded Cellular Raspberry Pi HAT+, Teltonika EBD02

Детайлна информация

Calyx 4G / EBD021

Mobile module4G LTE-FDD (Cat 4) – 75Mbps DL, 50Mbps UL; LTE-TDD (Cat 4) – 65Mbps DL, 35Mbps UL; DC-HSPA+ – 42Mbps DL, 5.76Mbps UL; 3G – 384 kbps DL, 384 kbps UL, 2G – 236.8 kbps DL, 236.8 kbps UL, 2G GPRS – 85.6 kbps DL, 85.6 kbps UL

3GPP ReleaseRelease 9

Calyx 5G / EBD050

Mobile module5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE Cat 19 up to 1.6 Gbps DL/ 200 Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps

3GPP ReleaseRelease 16

Calyx 5G Red Cap / EBD070

Mobile module5G Sub-6Ghz SA 223 Mbps DL/123 Mbps UL; 4G LTE (Cat 4) up to 195 Mbps DL/105 Mbps UL

3GPP ReleaseRelease 17

USB

Data rateUSB 2.0 - Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070

USB 3.0 - Calyx 5G / EBD050

40-pin GPIO header

PWR_KEYModem turn on/off. Digital Input, 0 - 3.3 V logic level, active High, to activate use pulse (≥500 ms)

Modem wakeupWake up modem from a sleep mode.

Digital Input, 0 - 3.3 V logic level, active High - Calyx 4G / EBD021;

Digital Input, 0 - 3.3 V logic level, active Low  - Calyx 5G / EBD050; Calyx 5G Red Cap / EBD070

Modem resetResets the modem. Digital Input, 0 - 3.3 V logic level, active High

Power

USB type C5 VDC

40-pin GPIO headerOn a 40-pin header, 5 VDC and 3.3 VDC

Physical Interfaces

Status LEDs1 x Power, NET IND, NET STAT

SIM1 x SIM slot (Nano SIM - 4FF), push-pull

PowerOn a 40-pin header/USB power

USBUSB Type-C receptacle

Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070

Antennas2 x SMA for Mobile

Calyx 5G / EBD050

Antennas4 x SMA for Mobile

Physical Specification

Weight57 g

Mounting optionsWIth included mounting kit

Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070

Dimensions (W x H x D)56 x 23.11 x 95.48 mm

Calyx 5G / EBD050

Dimensions (W x H x D)56 x 23.11 x 100.8 mm

Operating Environment

Operating temperature-40 °C to 75 °C

Regulatory & Type Approvals

Calyx 4G / EBD021; Calyx 5G / EBD050

RegulatoryCE, UKCA, EAC, UCRF, RCM, CB, WEEE

Calyx 5G Red Cap / EBD070

RegulatoryCE, UKCA, EAC, UCRF, FCC, ISED (IC), RCM, CB, WEEE

EMC Emissions & Immunity

Calyx 4G / EBD021

StandardsEN 55032:2015+ A11:2020 + A1:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021+A2:2024

EN 301 489-1 V2.2.3

EN 301 489-17 V3.3.1

EN 301 489-52 V1.2.1

Calyx 5G / EBD050

StandardsEN 55032:2015+ A11:2020 + A1:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021+A2:2024

EN 301 489-1 V2.2.3

EN 301 489-3 V2.3.2

EN 301 489-17 V3.3.1

EN 301 489-19 V2.2.1

EN 301 489-52 V1.2.1

Calyx 5G Red Cap / EBD070

StandardsEN 55032:2015+ A11:2020 + A1:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021+A2:2024

EN 301 489-1 V2.2.3

EN 301 489-17 V3.3.1

EN 301 489-19 V2.2.1

EN 301 489-52 V1.2.1

47 CFR Part 15, Subpart B

RF

Calyx 4G / EBD021; Calyx 5G / EBD050

StandardsEN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 301 908-25 V15.1.1

Calyx 5G Red Cap / EBD070

StandardsEN 301 908-1 V15.2.1

EN 301 908-13 V13.2.1

EN 301 908-25 V15.1.1

Safety

StandardsCE: EN IEC 62311:2020

RCM: AS/NZS 62368.1:2022

CB: EN IEC 62368-1:2020+A11:2020
