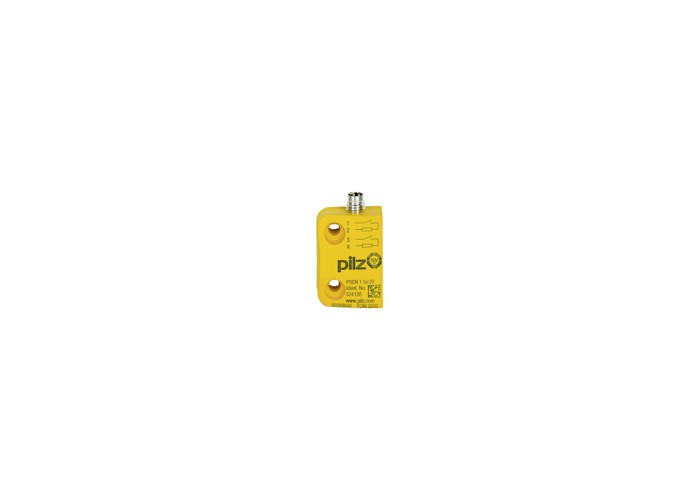

Сензор PSEN ma1.1p-12/3mm/ix1/1switch, 506410

Детайлна информация

Type

Electrical data

Supply voltage (V)24  V

Type of supply voltage U1DC

Switching voltage24V

Environmental data

Ambient temperature-25 - 70°C

Max. ambient temp. at Hmax

Max. ambient temp. at 2000 m+70 °C

Perm. operating height ASL4000 m

EMC to standard ...EN 60947-5-3

Vibration to standard ...EN 60947-5-2

Acc. shock to standard130g

Pollution degree clear.&creep.3

Protection type, housing

Mechanical data

Type 1 actuatorPSEN 1.1-10

Sensor can be flush-mountedYes, follow installation guide

Connection typeM8, 4-pin male

Housing material upper partPBT

Height dimension36mm

Width dimension26mm

Depth dimension13mm

Net weight19g

Gross weight27g
