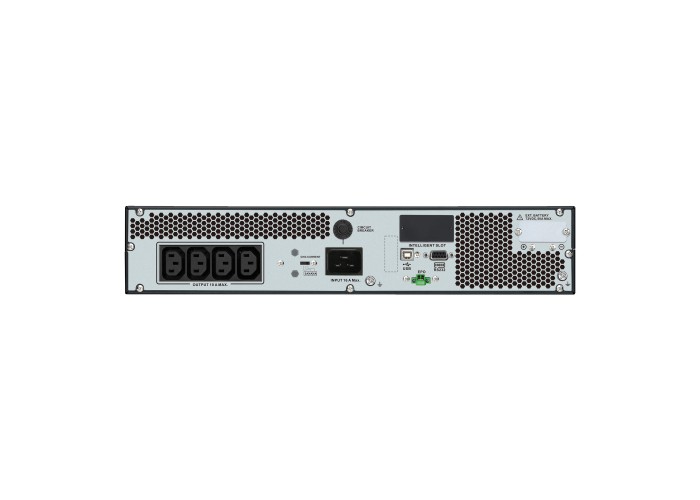

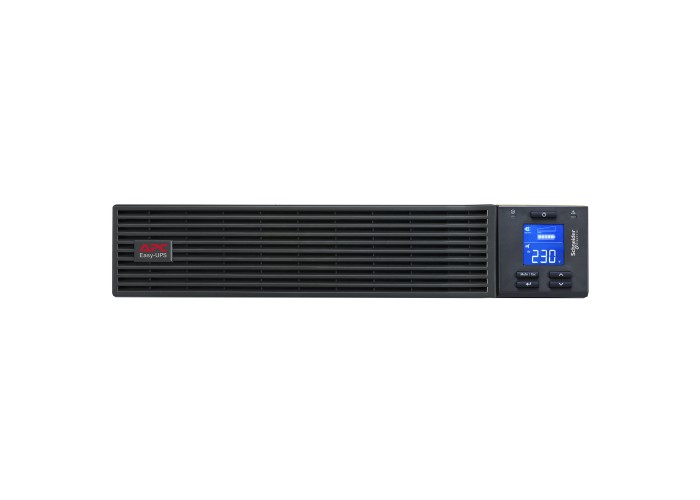

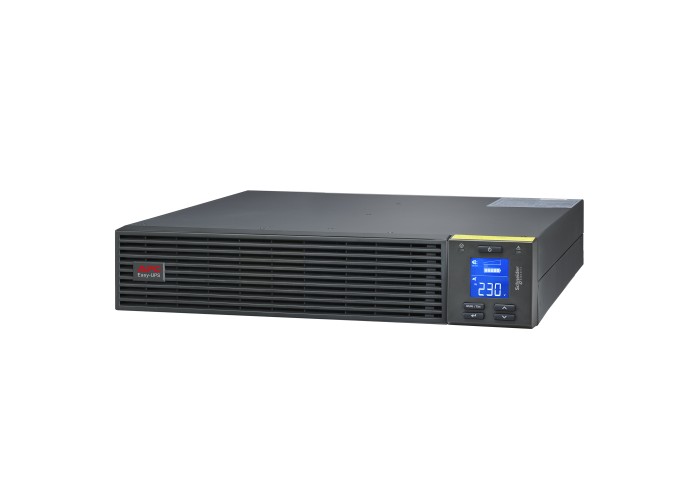

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery, W/O rail kit, Schneider Electric SRVPM2KRIL-E

Детайлна информация

Main input voltage230 V AC 1 фаза

Other input voltage220 V; 240 V

Input connectionIEC 60320 C14

Efficiency at full load105…300 V 40% load; 180...285 V пълен товар

Input frequency40...70 Hz автоматичен сензор

Output voltage230 V AC 1 фаза

Other output voltage220 V; 240 V

Rated power in W1800 W

Rated power in VA2000 VA

Output connection4 IEC 60320 C13

Bypass typeВътрешен байпас (автоматичен и ръчен)

Crest factor3 : 1

Maximum configurable power in VA2000 VA

Maximum configurable power in W1800 W

UPS topologyOn-Line

Waveform typeСинусова вълна

Efficiency88 % (пълен товар)

Output frequency50/60 Hz +/- 3 Hz синхронизиране със захранването

Battery typeLead-acid external sold separately

Control panelМултифункционален lcd статус и контролна конзола

AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivitySerial port; USB port; Available expansion slot

Surge energy rating600 J

Number of rack unit2U

Number of cables1

ColorЧерен (RAL 7010)

Height86 mm

Width438 mm

Depth462 mm

Product weight8,9 kg

Mounting locationПреден панел

Mounting preferenceLower

Mounting modeRack-mounted with kit

USB compatibleNo

Mounting positionХоризонтален

Mounting modeМонтиран в рак with kit sold separately

Number of power module filled slots0

Number of power module free slots0

RedundantNo

Range of productEasy UPS On-Line

Product or component typeUninterruptible power supply (UPS)

Product certificationCE; UKCA; TISI

StandardEN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation0…40 °C

Ambient air temperature for storage-20…50 °C

Storage altitude0…15000 m

Relative humidity0…95 % без кондензация

Storage relative humidity0…95 % без кондензация

Acoustic level53 dBA

Heat dissipation759 Btu/h

Operating altitude0...3000 m

Battery typeВъншна система с батерия

Battery voltage72 V

Extendable runtime1

Included battery module0

Empty battery slot0

Battery charging power525 W rated

Тип пакет 1PCE

Брой единици в пакет 11

Височина на пакет 124 cm

Широчина на пакет 154,5 cm

Дължина на пакет 170 cm

Тегло на пакет 113,1 kg

Гаранция (в месеци)24
