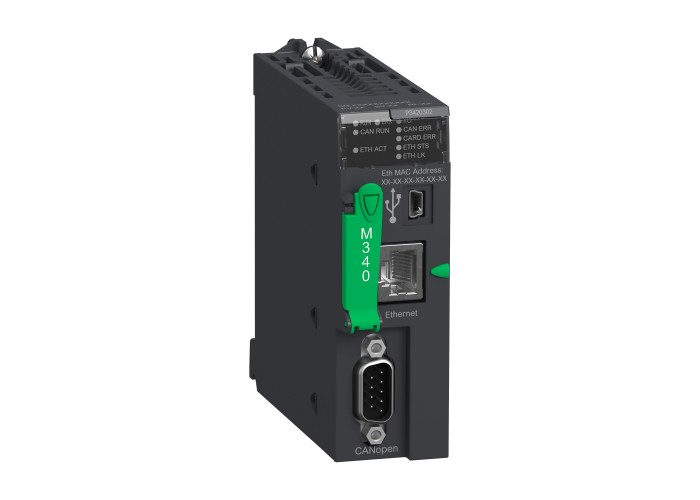

Modicon M340 M340 контролер ETHERNET CANOPEN2, Schneider Electric BMXP3420302

Основни

Гама на продуктаModicon M340 automation platform

Тип продукт или компонентмодул за процесор

Analogue I/O processor capacity256 I/O multi-rack configuration

66 I/O single-rack configuration

ConceptCANopen

Transparent Ready

Discrete I/O processor capacity1024 I/O multi-rack configuration

704 I/O single-rack configuration

Number of application specific channel36

Number of racks4

Брой слотове11

Допълнителни устройства

Тип интегрирана връзкаUSB порт при 12 Mbit/s

CANopen master bus SUB-D 9 2 twisted shielded pairs при 20 kbit/s...1 Mbit/s

Ethernet TCP/IP RJ45 1 twisted pair при 10/100 Mbit/s

Тип шинаCANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA

CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA

CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA

Нето тегло на продукта0.215 kg

Communication module processor capacity2 Ethernet communication module

4 AS-Interface module

Control channelsprogrammable loops

Default size of object areas1024 %MWi internal words located internal data

256 %KWi constant words located internal data

512 %Mi located internal bits

Motion controlindependent axis CANopen

Number of instructions per ms6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic

8.1 Kinst/ms 100 % Boolean

Number of slave63 CANopen

System overhead0.13 ms за fast task

0.7 ms за master task

Брой устройства на сегмент0-16 за < 205 m (CANopen)

0-32 за < 185 m (CANopen)

0-64 за < 160 m (CANopen)

Време за изпълнение при инструкция0.12 µs Двоичен

0.17 µs double-length words

0.25 µs single-length words

1.16 µs floating points

Захранванеinternal power supply via rack

Комуникационни услугиNetwork management (NMT) CANopen

Process Data Object (PDO) CANopen

Service Data Object (SDO) CANopen

special functions (SYNC, EMCY, TIME) CANopen

bandwidth management, Ethernet TCP/IP

Data Editor, Ethernet TCP/IP

Modbus TCP messaging, Ethernet TCP/IP

Rack Viewer, Ethernet TCP/IP

SNMP network administrator, Ethernet TCP/IP

Консумация на ток135 mA при 24 V DC

Макс размер на повърхностите256 kB unlocated internal data

32634 %Mi located internal bits

МаркировкаCE

описание на паметтаsupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data

internal RAM 4096 kB

internal RAM 256 kB data

internal RAM 3584 kB program constants and symbols

supplied memory card (BMXRMS008MP) activation of standard web server, class B10

Порт Ethernet10BASE-T/100BASE-TX

Скорост на предаване1 Mbit/s 0-20 m 0-0.6 m

125 kbit/s 0-500 m 0-10 m

20 kbit/s 0-2500 m 0-300 m

250 kbit/s 0-250 m 0-10 m

50 kbit/s 0-1000 m 0-120 m

500 kbit/s 0-100 m 0-10 m

800 kbit/s 0-40 m 0-6 m

Статус LED1 LED (зелен) activity on Ethernet network (ETH ACT)

1 LED (зелен) integrated machine/installation bus operational (CAN RUN)

1 LED (зелен) processor running (RUN)

1 LED (зелен) status of Ethernet network (ETH STS)

1 LED (червен) data rate (ETH 100)

1 LED (червен) I/O module fault (I/O)

1 LED (червен) integrated machine/installation bus fault (CAN ERR)

1 LED (червен) memory card fault (CARD ERR)

1 LED (червен) processor or system fault (ERR)

1 LED (жълт) activity on Modbus (SER COM)

Структура на приложението1 cyclic/periodic master task

1 periodic fast task

no auxiliary task

64 event tasks

Околна среда

IP степен на защитаIP20

product certificationsCE

UL

CSA

RCM

EAC

Merchant Navy

Директиви2014/35/ЕС - директива за ниско напрежение

2014/30/EU - електромагнитна съвместимост

Защитни меркиTC

Относителна влажност10-95 % без кондензация

СтандартиEN 61131-2

EN/IEC 61010-2-201

UL 61010-2-201

CSA C22.2 No 61010-2-201

IACS E10

EN/IEC 61000-6-5, interface type 1 and type 2

EN/IEC 61850-3, location G

Температура на околния въздух при работа0-60 °C

Характеристики на околната средаhazardous location class I division 2
