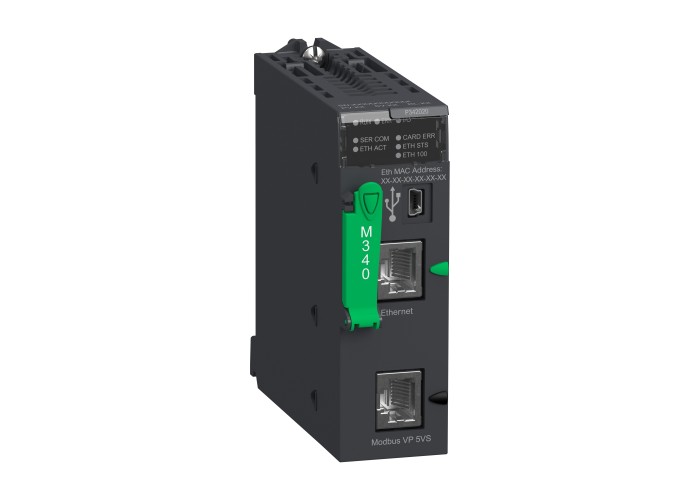

Modicon M340 Процесор CPU340-20 MODBUS етернет, Schneider Electric BMXP342020

Основни

Гама на продуктаModicon M340 automation platform

Тип продукт или компонентмодул за процесор

Analogue I/O processor capacity256 I/O multi-rack configuration

66 I/O single-rack configuration

ConceptTransparent Ready

CANopen

Discrete I/O processor capacity1024 I/O multi-rack configuration

704 I/O single-rack configuration

Monitoringdiagnostic counters Modbus

event counters Modbus

Number of application specific channel36

Number of racks4

Брой слотове11

Допълнителни устройства

Тип интегрирана връзкаНе изолирана серийна връзка RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs при 0.3...19.2 kbit/s full duplex

Не изолирана серийна връзка RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair при 0.3...19.2 kbit/s half duplex

Не изолирана серийна връзка RJ45, главен/подчинен Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair при 0.3...19.2 kbit/s half duplex

Не изолирана серийна връзка RJ45, главен/подчинен Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair при 0.3...19.2 kbit/s half duplex

USB порт при 12 Mbit/s

Ethernet TCP/IP RJ45 1 twisted pair при 10/100 Mbit/s

Communication module processor capacity2 Ethernet communication module

4 AS-Interface module

Control channelsprogrammable loops

Control parameterone CRC on each frame (RTU) Modbus

one LRC on each frame (ASCII) character mode

one LRC on each frame (ASCII) Modbus

Default size of object areas1024 %MWi internal words located internal data

256 %KWi constant words located internal data

512 %Mi located internal bits

Maximum tap links length < 15 m serial link non isolated character mode segment

< 15 m serial link non isolated Modbus segment

< 40 m serial link isolated character mode segment

< 40 m serial link isolated Modbus segment

Number of instructions per ms6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic

8.1 Kinst/ms 100 % Boolean

Requests1 K data bytes per request character mode

252 data bytes per RTU request Modbus

504 data bytes per ASCII request Modbus

System overhead0.13 ms за fast task

0.7 ms за master task

Брой адреси0-248 за character mode

0-248 за Modbus

Брой устройства2 point-to-point character mode

2 point-to-point Modbus

Брой устройства на сегмент0-32 (character mode)

0-32 (Modbus)

Време за изпълнение при инструкция0.12 µs Двоичен

0.17 µs double-length words

0.25 µs single-length words

1.16 µs floating points

Дължина на шината0-10 m serial link non isolated character mode segment

0-10 m serial link non isolated Modbus segment

0-1000 m serial link isolated character mode segment

0-1000 m serial link isolated Modbus segment

0-15 m character mode point-to-point

0-15 m Modbus point-to-point

Захранванеinternal power supply via rack

Комуникационни услугиbandwidth management, Ethernet TCP/IP

Data Editor, Ethernet TCP/IP

Modbus TCP messaging, Ethernet TCP/IP

Rack Viewer, Ethernet TCP/IP

SNMP network administrator, Ethernet TCP/IP

Консумация на ток95 mA при 24 V DC

Макс размер на повърхностите256 kB unlocated internal data

32634 %Mi located internal bits

МаркировкаCE

описание на паметтаsupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data

internal RAM 4096 kB

internal RAM 256 kB data

internal RAM 3584 kB program constants and symbols

supplied memory card (BMXRMS008MP) activation of standard web server, class B10

Порт Ethernet10BASE-T/100BASE-TX

Статус LED1 LED (зелен) activity on Ethernet network (ETH ACT)

1 LED (зелен) processor running (RUN)

1 LED (зелен) status of Ethernet network (ETH STS)

1 LED (червен) data rate (ETH 100)

1 LED (червен) I/O module fault (I/O)

1 LED (червен) memory card fault (CARD ERR)

1 LED (червен) processor or system fault (ERR)

1 LED (жълт) activity on Modbus (SER COM)

Структура на приложението1 cyclic/periodic master task

1 periodic fast task

no auxiliary task

64 event tasks

Нето тегло на продукта0.205 kg

Околна среда

IP степен на защитаIP20

product certificationsCE

UL

CSA

RCM

EAC

Merchant Navy

Директиви2014/35/ЕС - директива за ниско напрежение

2014/30/EU - електромагнитна съвместимост

Защитни меркиTC

Относителна влажност10-95 % без кондензация

СтандартиEN 61131-2

EN/IEC 61010-2-201

UL 61010-2-201

CSA C22.2 No 61010-2-201

IACS E10

EN/IEC 61000-6-5, interface type 1 and type 2

EN/IEC 61850-3, location G

Температура на околния въздух при работа0-60 °C

Характеристики на околната средаhazardous location class I division 2
