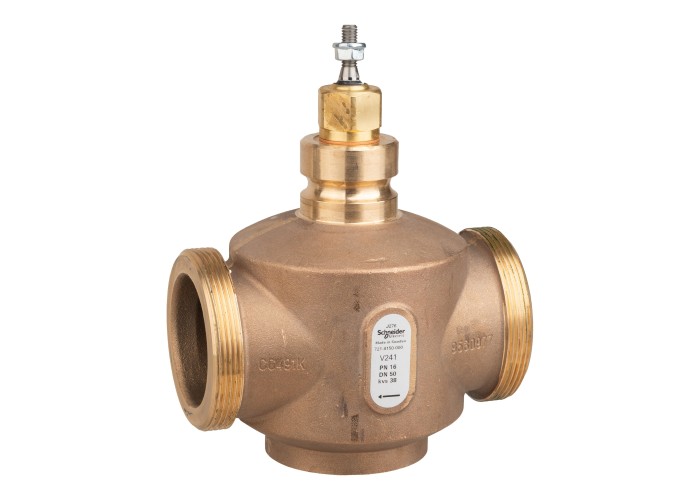

Globe Valves and Actuators Venta V241 Globe Valve, 2-Way, PN16, G 2-3/4 External Thread, DN50, Kvs 38, Bronze Body, Stainless Trim, Stem Up Closed, Schneider Electric 7214150000

Основни

Тип продукт или компонентvalve

Body size50 mm (2 in)

Control valve rangeabilitygreater than 100:1

Flow characteristicequal percentage

Flow coefficient43.94 cv

38 kvs

Medium compatibilityGlycol 25 %

Glycol 30 %

Glycol 50 %

Water

Operating fluid temperature-20-150 °C

Packing materialEPDM (ethylene propylene diene monomer)

Pipe size50 mm

Plug materialstainless steel AISI 303

Pressure classPN16

Pressure fluid max delta P normal life87 psi

Seat leakagePort A: Less than 0.02 % of kvs

Seat materialPort A: stainless steel AISI 303

Seating seal materialPort A:metal to metal

Stem flow actionStem up closed

Stem materialstainless steel AISI 303

Stem movementlinear

Stem seal materialEPDM (ethylene propylene diene monomer)

Stroke length20 mm

Trim materialstainless steel

Valve configuration2-Way

Valve connection sizeG 2-3/4B

Valve connection typeG External

Valve modelV241/50/38

Valve product rangeVenta

Valve product seriesV241

Valve typeglobe

Материал за основатаbronze Rg5

Целева странаEurope

Asia Pacific.

Australia.
