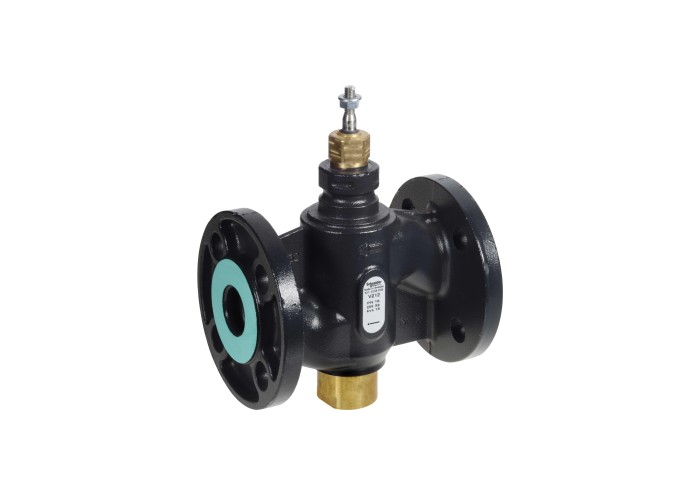

Globe Valves and Actuators Venta V212 Globe Valve, 2-Way, PN16, Flanged, Balanced Plug, DN50, 38 Kvs, Nodular Iron, Brass Plug, Stem Up Closed, Schneider Electric 7211244000

Основни

Тип продукт или компонентvalve

Body size50 mm (2 in)

Control valve rangeabilitygreater than 50:1

Flow characteristicequal percentage

Flow coefficient43.94 cv

38 kvs

Medium compatibilityWater

Glycol 25 %

Glycol 30 %

Glycol 50 %

Operating fluid temperature-20-120 °C

Packing materialEPDM (ethylene propylene diene monomer)

Pipe size50 mm

Plug materialCW602N brass

Pressure classPN16

Pressure fluid max delta P normal life58 psi

Seat leakagePort A: Class IV-S1 (0.005 %)

Seat materialPort A: nodular cast iron EN-JS 1030

Seating seal materialPort A:EPDM (ethylene propylene diene monomer)

Stem flow actionStem up closed

Stem materialstainless steel AISI 303

Stem seal materialEPDM (ethylene propylene diene monomer)

Stroke length20 mm

Trim materialbrass

Valve configuration2-Way

Valve connection sizeDN50 (ISO 7005-2)

Valve connection typeflanged

Valve modelV212/50/38

Valve product rangeVenta

Valve product seriesV212

Valve typeglobe

Материал за основатаnodular cast iron EN-JS 1030

Целева странаEurope

Asia Pacific.

Australia.
