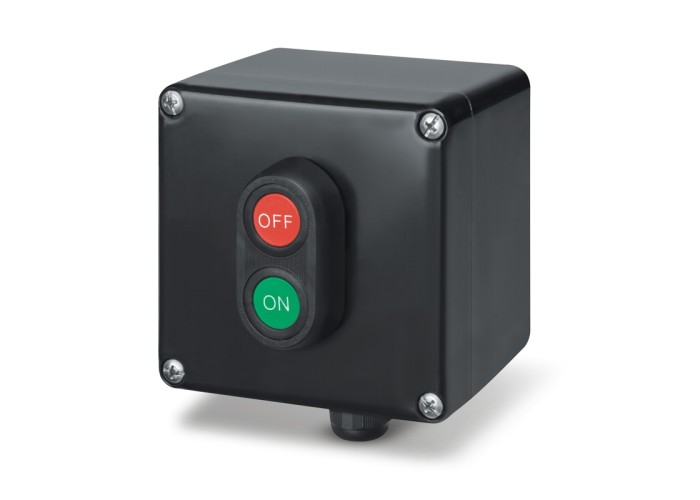

EX контролна станция 122x120x90mm, Scame 644.0345-OF

Детайлна информация

Commercial Series ZENITH-P Series

Synthetical description SURFACE MOUNTING BOX

Protection degree Splash proof

Protection degree IP IP66

Material THERMOSETTING

Equipment Control station

Function ON/OFF 1NO+1NC PUSH BUTTON

Dimensions 122x120x90mm

Cable entry 1xM20

Rated current (value) 16 A

Category of use AC12

Rated Sizing Voltage (Value) 250 V

Maximum power dissipation 1,660 W

Group and categories EX II 2GD

Modo protezione gas Ex db eb IIC T6 Gb

Dust protection Ex tb IIIC T80°C Db IP66

Ambient temperature Ta min -30 °C

Ambient temperature Ta max 40 °C

Catalogue notesThe enclosures in heat-hardening material of the ZENITH-P Series are mainly used for the following purpose:
- Command and control of equipment such as motors, fans, pumps, lighting systems, etc.
- Reading of physical quantities such as flow rate, level, pressure, temperature, current, voltage, frequency, number of revolutions, etc.

The arrangement of ATEX-certified accessories, terminals and actuators of the ZENITH-P enclosure can be made according to different configurations, based on the customer’s specific needs and always in compliance with the limits of the ATEX & IECEx certification.

SCAME can rely on an in-house design department (CIT) to perform quick feasibility analyses at the customer’s request. It also has equipment and qualified personnel for the construction and assembly of the ZENITH-P Series control stations.

The components and actuators found on the cover are suited for use in these enclosures and are covered by relevant component certificate; they were selected depending on brand and model based on the ATEX certification in force for the European Community, and IEC-Ex for the international market., ATEX [ATmosphères EXplosibles]: por applications in potentially explosive atmospheres.
