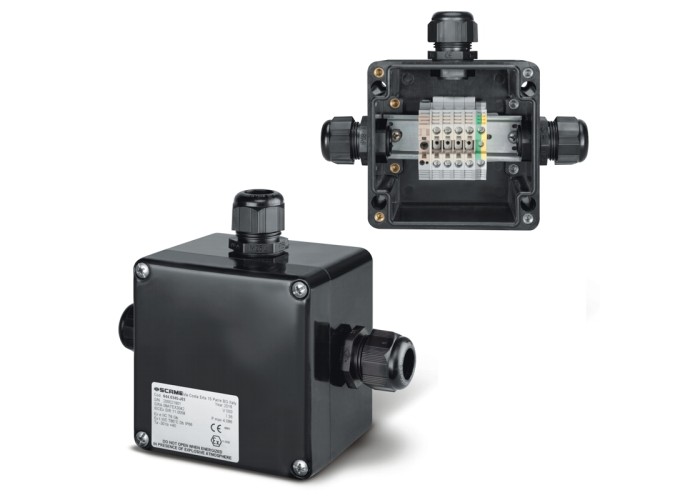

EX клемна кутия 122x120x90mm 4xWDU, Scame 644.0345-J03

Детайлна информация

Commercial Series ZENITH-P Series

Synthetical description SURFACE MOUNTING BOX

Protection degree Splash proof

Protection degree IP IP66

Material THERMOSETTING

Equipment Junction box

Terminal block 4xWDU 6,0mm²

Dimensions 122x120x90mm

Cable entry 3xM20

Rated current (value) 30 A

Rated Sizing Voltage (Value) 550 V

Maximum power dissipation 2,180 W

Group and categories EX II 2GD

Modo protezione gas Ex eb IIC T6 Gb

Dust protection Ex tb IIIC T80°C Db IP66

Ambient temperature Ta min -30 °C

Ambient temperature Ta max 40 °C

Catalogue notesScame can supply these enclosures as empty components or after performing the following operations:
- Drilling entries
- Tapping holes
- Fitting terminals
- Supplying suitable cable glands, ATEX [ATmosphères EXplosibles]: por applications in potentially explosive atmospheres.
