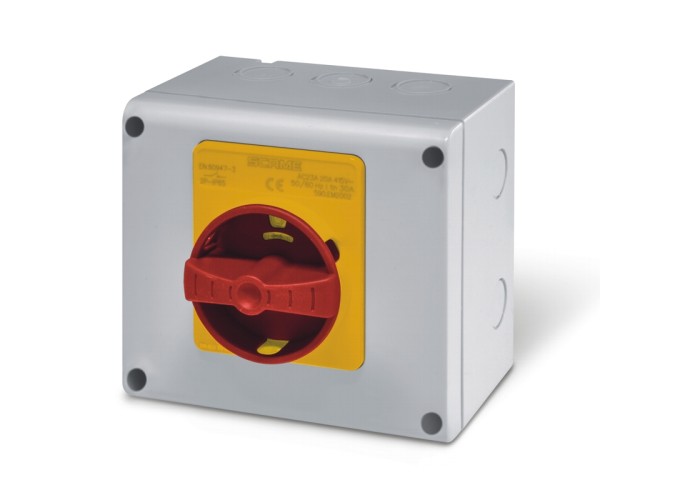

Авариен пакетен прекъсвач в кутия 40A, 3P, Scame 590.EM4003

Детайлна информация

Commercial Series ISOLATORS-TP Series

Synthetical description SWITCH DISCONNECTOR

Construction type Enclosed

Mounting version SURFACE MOUNTING

Material ENGINEERING PLASTIC

Protection degree IP IP65

Installation temperature -25°C/+60°C

Type EMERGENCY

Colour YELLOW/RED

Rated current 40A

Poles 3P

Switch size Y1

Rated voltage 690V

Dimensions 136x125x84mm

GLOW WIRE GW 650°C

Protection degree IK IK09

Flange 136X125MM_PAR

Rated insulation voltage (Ui) 690VAC

Rated impulse voltage (Uimp) 4kV

Thermal current (Ithe) 40A

Current (Ie) in AC21A (415V) 40A

Current (Ie) in AC21A (500V) 32A

Current (Ie) in AC21A (690V) 32A

Current (Ie) in AC22A (415V) 40A

Current (Ie) in AC22A (500V) 32A

Current (Ie) in AC22A (690V) 32A

Current (Ie) in AC23A (415V) 35A

Current (Ie) in AC23A (500V) 25A

Current (Ie) in AC23A (690V) 25A

Current (Ie) in AC3 (415V) 28.5A

Current (Ie) in AC3 (690V) 20A

Current (Ie) in DC22A (250V) 32A

Current (Ie) in DC22A (600V) 10A

Power AC23A (415V) 18.5kW

Short-time current 400A Icw(1s)

Conditional short circuit cur. 10kAeff

Associate fuse - type gG 40A

Terminals - Flexible wires 1.5-10mm²

Terminals - Rigid wires 1.5-16mm²

Catalogue notesOMNIA Series enclosure, Equipped with door interlock, Blank side with drilling point marks, Handle padlockable in OFF position only (3 padlocks)
