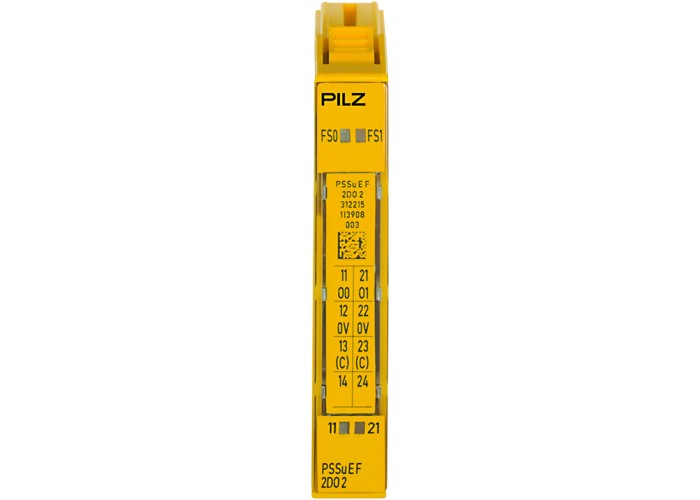

Разширителен модул PSSu E F 2DO 2, 312215

Детайлна информация

Type

Electrical data

Terminal V ind. loads offU2 - 50 V

Permitted loadsResistiveInductiveCapacitive

Semiconductor outputs

DC voltage at output24 V DC

Potential isolation S/C OYes

S/C output short circuit proofYes

Environmental data

Climatic suitability to ...EN 60068-2-30EN 60068-2-2EN 60068-2-1EN 60068-2-78EN 60068-2-14

Ambient temperature standardEN 60068-2-14

Ambient temperature0 - 60°C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-78

Humidity rating93 % r. h. at 40 °C

Condensation permitted?Not permitted

Perm. operating height ASL2000 m

EMC to standard ...EN 12015EN 12016EN 61000-6-2EN 61000-6-4EN 61131-2 (Zone B)

Vibration to standard ...EN 60068-2-6

Acc. shock to standard1150 m/s²

Acc. shock to standard2

Clearance & creepage dist. toEN 61131-2

Overvoltage categoryII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, mounting

Protection type, housing

Terminal protection type

Mechanical data

Housing material lower sectionPC

Housing material front platePC

Housing material codePA

Terminal styleplug-in

Height dimension76mm

Width dimension12.6mm

Depth dimension60.2mm

Net weight35g

Gross weight44g

Name of coding elementF

Colour of coding elementYellow
