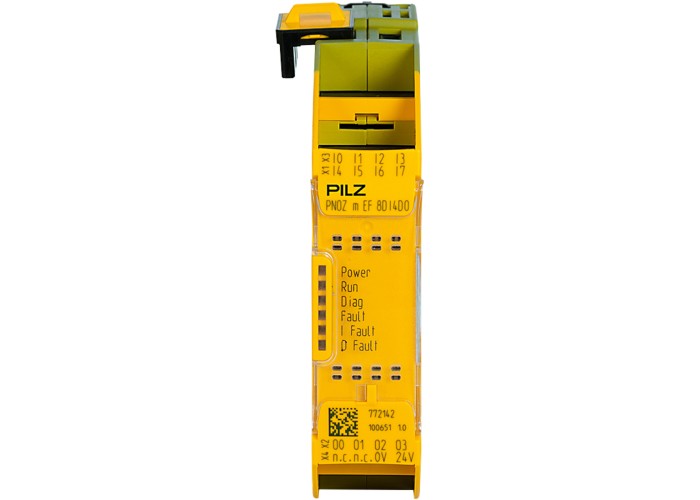

Разширителен модул PNOZ m EF 8DI4DO, 772142

Детайлна информация

Type

Electrical data

Purpose of U2Supply of SC outputs

Supply voltage 2 (V)24  V

Type of supply voltage U2DC

Tolerance of U2

Potential isolation U2Yes

Purpose of UINT1Module supply

Source of internal voltageVia base unit

Voltage type of UINT1DC

Permitted loadsResistiveInductiveCapacitive

Inputs

Number of digital inputs8

U input to EN 61131-2 Type 124 V DC

Potential isolation inputNo

Semiconductor outputs

Potential isolation of S/C OYes

S/C output short circuit proofYes

Environmental data

Ambient temperature standardEN 60068-2-14

Ambient temperature0 - 60°C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-30EN 60068-2-78

Condensation permitted?Not permitted

Perm. operating height ASL2000 m

EMC to standard ...EN 61131-2

Vibration to standard ...EN 60068-2-6

Acc. shock to standard115g

Clearance & creepage dist. toEN 61131-2

Overvoltage categoryII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, mounting

Protection type, housing

Terminal protection type

Potential separation

Potential isolation 1 betweenSC output and system voltage

Type of potential isolation 1Basic insulation

Mechanical data

Mounting positionhorizontal on top hat rail

DIN-rail dimensions

Housing material lower sectionPC

Housing material front platePC

Housing material upper partPC

Connection terminalSpring-loaded terminalScrew terminal

Terminal styleplug-in

Flex. cond. c/s AWG info24 - 12 AWG

Height dimension101.4mm

Width dimension22.5mm

Depth dimension120mm

Net weight105g

Gross weight115g
