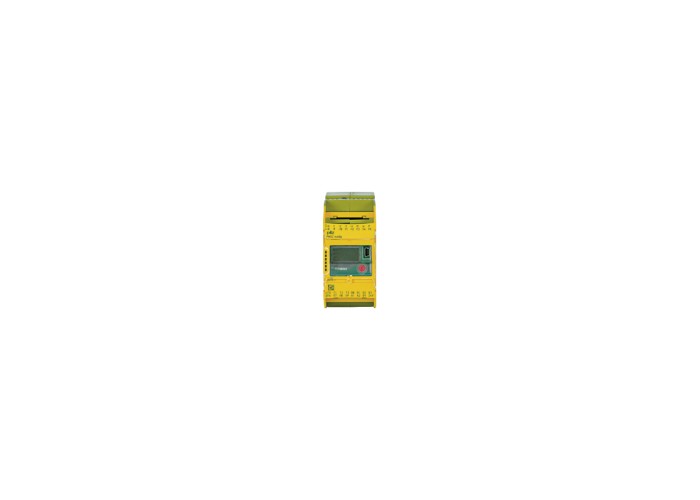

PNOZ mm0p 24VDC, 772000

Детайлна информация

Electrical data

Purpose of U1System supply

Supply voltage (V)24  V

Type of supply voltage U1DC

Power consumption DC35W

Purpose of U2Supply of SC outputs

Supply voltage 2 (V)24  V

Type of supply voltage U2DC

Tolerance of U2

Configurable inputs/outputs

Number of configurable I/Os8

Galv. isol. config. I/ONo

Signal level at input at 115 ... 30 V DC

Signal level at input at 0-3 ... +5 V DC

Short circ. prot. n/safe S/C OYes

Voltage at 1 n/safe S/C OUB - 2 V at 0.1 A

Inputs

Number of digital inputs12

Signal level at input at 0-3 - +5 VDC

U input to EN 61131-2 Type 124 V DC

Potential isolation inputNo

Semiconductor outputs

Number of semicond. outputs4

Potential isolation of S/C OYes

S/C output short circuit proofYes

Test clock outputs

Number of test pulse outputs4

Environmental data

Ambient temperature standardEN 60068-2-14

Ambient temperature0 - 60  °C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-30EN 60068-2-78

Humidity rating93 % r. h. at 40 °C

Condensation permitted?Not permitted

Perm. operating height ASL2000 m

EMC to standard ...EN 61131-2

Vibration to standard ...EN 60068-2-6

Acc. shock to standard115g

Clearance & creepage dist. toEN 61131-2

Overvoltage categoryII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, mounting

Protection type, housing

Terminal protection type

Potential separation

Potential isolation 1 betweenSC output and system voltage

Type of potential isolation 1Basic insulation

Mechanical data

Mounting positionhorizontal on top hat rail

DIN-rail dimensions35 x 7.5 EN 50022

Housing material lower sectionPC

Housing material front platePC

Housing material upper partPC

Connection terminalScrew terminalSpring-loaded terminal

Flex. cond. c/s AWG info24 - 12 AWG

Height dimension100mm

Width dimension45mm

Depth dimension120mm

Net weight226g

Gross weight244g
