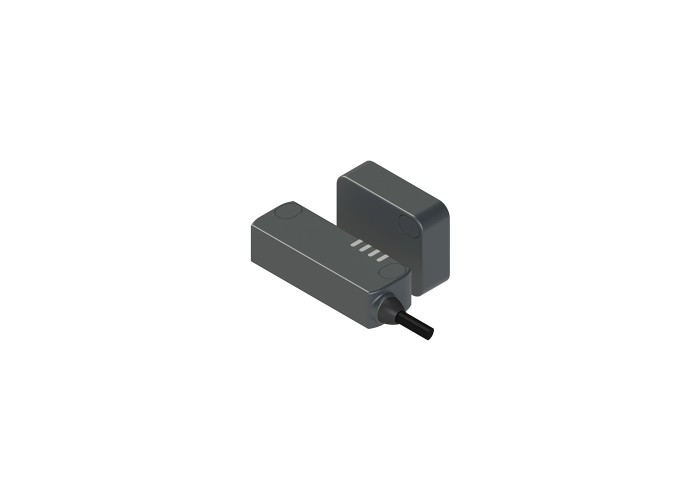

Safety sensor, Pizzato ST DD310N2-E1T ST D series

Детайлна информация

Housing:Technopolymer housing with output connection from right

Inputs and outputs:2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3

Power:24 Vdc

Type of cable or connector:PVC cable

Actuator coding level:High coding level, all different actuators (1T)

Actuator actuation distance:Actuation distance 20 mm

Actuator design:Dimensions 40x50x16 mm, front fixing (E)

Ambient temperature:From -25 to +70°C

Protection degree:IP67 according to EN 60529 and IP69K according to ISO 20653.
