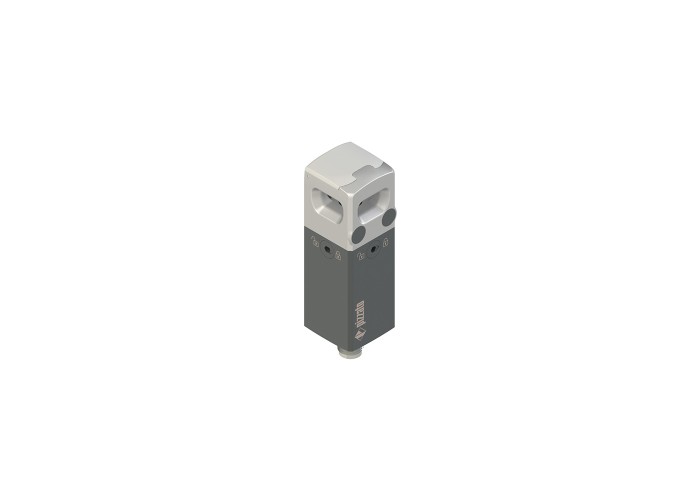

RFID Safety switch with lock, Pizzato NX B42CZ1SPK NX series

Детайлна информация

Type of operation:Mode 1 of bistable solenoid. Activation of OS1 and OS2 with inserted and locked actuator.

Inputs and outputs:2 safety inputs IS1

OS2; 1 signalling output O3:actuator inserted; 1 signalling output O4: actuator locked; 2 inputs for solenoid activation IE1

Actuator recognition:Reprogrammable actuator

Auxiliary release:Release with hexagonal key on 3 sides

Type of integrated cable or connector:8-pole connector, for stand-alone connection

Actuator:Without actuator

Protection degree:IP67 according to EN 60529 and IP69K according to ISO 20653

Cover:RGB-LED (illuminated) cover with multicolour signalling.
