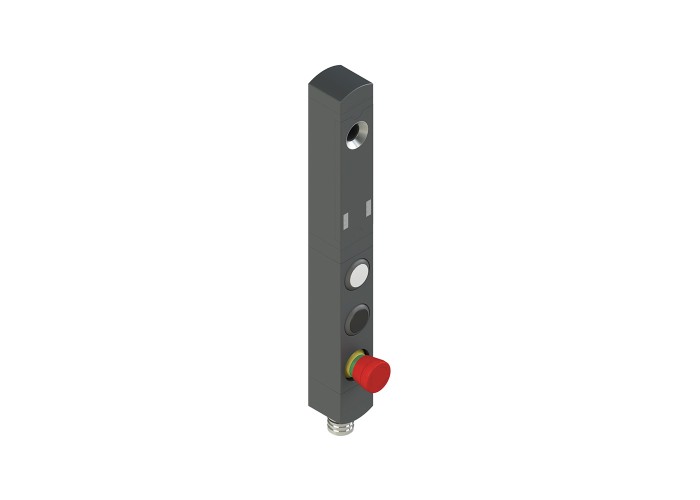

Safety switch with lock and integrated control devices, Pizzato NS E4ZZ1STK-N003 NS series

Детайлна информация

Actuator:Without actuator

Housing:Technopolymer housing

Working method:E working method, locked actuator with energised solenoid; Mode 1: OS safety outputs active with locked protection

Inputs and outputs:2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; 2 solenoid activation inputs IE1-IE2, ; 1 programming / reset input I3

Auxiliary release with variable orientation:Without release

Output connection direction:Cable or connector at bottom

Type of connection:M23 connector, 19-pole

Protection degree:IP65 according to EN 60529

Button configuration:3 devices

Position 1:1 pushbutton white 1NO

Position 2:1 pushbutton black 1NO

Position 3:1 red emergency stop button, turn to release, 2NC.
