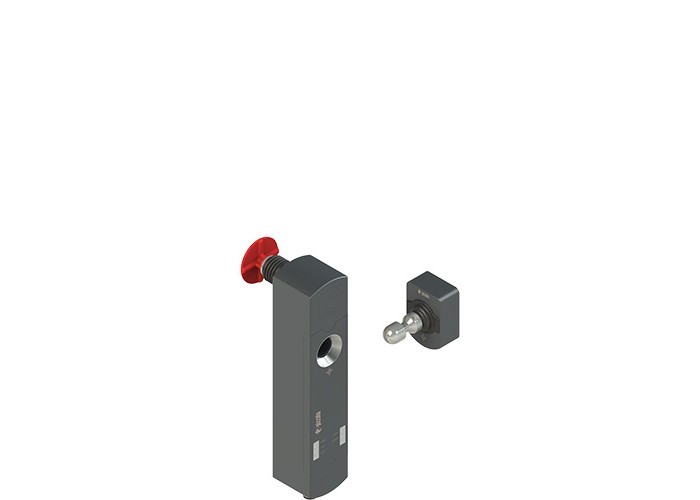

Ключалка за безопасност със соленоидно заключване и RFID актуатор, Pizzato NS E3TE1SMK-F40 NS series

Детайлна информация

Actuator:Complete with universal actuator with low coding level VN NS-F40

Housing:Technopolymer housing

Working method:E working method, locked actuator with energised solenoid; Mode 1: OS safety outputs active with locked protection

Inputs and outputs:2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked,; 2 solenoid activation inputs IE1-IE2, ; 1 reset input I3

Auxiliary release with variable orientation:Without front release and with rear emergency pushbutton

Output connection direction:Cable or connector at bottom

Type of connection:M12 connector, 12-pole

Protection degree:IP67 according to EN 60529 and IP69K according to ISO 20653

Button configuration:No device.
