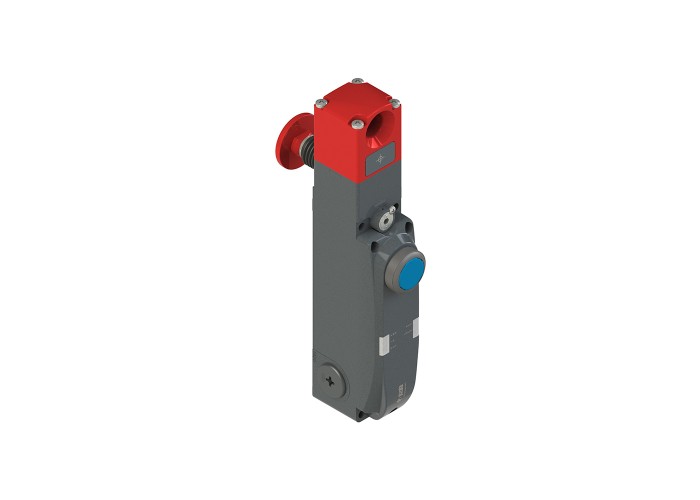

Safety switch with lock and integrated control devices, Pizzato NG 2D7D413G NG series

Детайлна информация

Cover configuration:1 device

Protection degree:IP65 according to EN 60529

Cover, position 1:1 pushbutton blue 1NO+1NC

Housing:Metal housing, three threaded M20x1,5 conduit entries

Head:Rotating head with escape pushbutton

Working method:D working method, locked actuator with de-energized solenoid

Inputs and outputs:2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; I4 or IE1-IE2 inputs for solenoid activation, ; 1 input I3: actuator programming / reset;

Safety output activation OS:Activation mode 1: safety outputs active with actuator inserted and locked

Actuator:Without actuator

Type of connection:Without connector.
