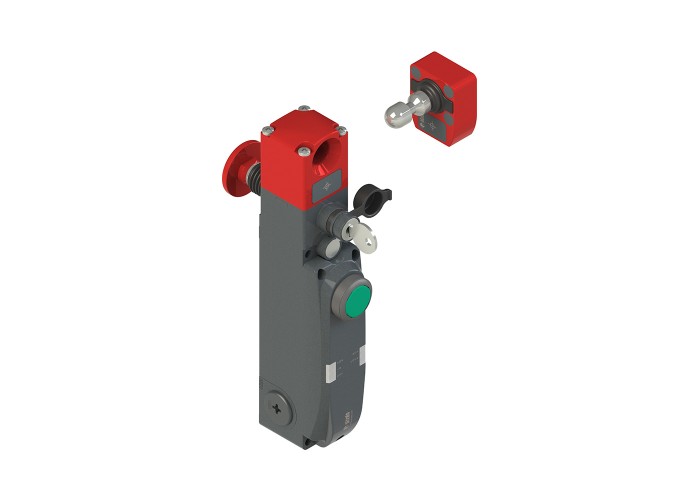

Ключалка за безопасност със соленоидно заключване, вградени бутони и RFID актуатор, Pizzato NG 2D6D311G-F31 NG series

Детайлна информация

Protection degree:IP65 according to EN 60529

Cover, position 1:1 pushbutton green 1NO+1NC

Cover configuration:1 device

Housing:Metal housing, three threaded M20x1,5 conduit entries

Head:Rotating head with lock auxiliary release device and escape pushbutton

Working method:D working method, locked actuator with de-energized solenoid

Inputs and outputs:2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; I4 or IE1-IE2 inputs for solenoid activation, ; 1 reset input I3

Safety output activation OS:Activation mode 1: safety outputs active with actuator inserted and locked

Actuator:Complete with actuator with high coding level VN NG-F31

Type of connection:Without connector.
