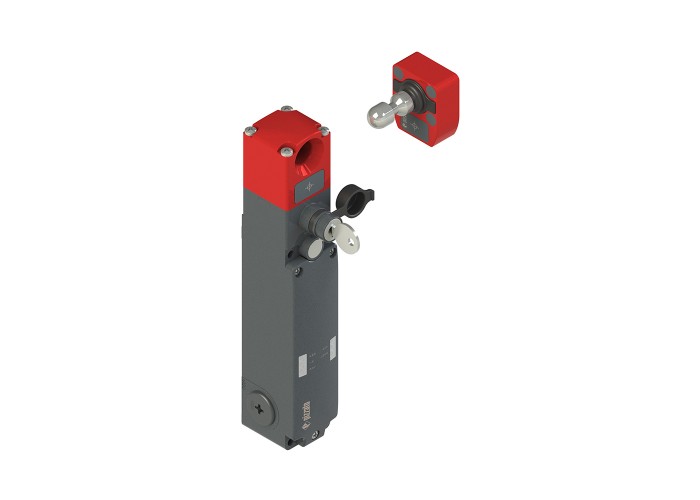

Safety switch with lock, with actuator, Pizzato NG 2D5D311A-F30 NG series

Детайлна информация

Protection degree:IP67 according to EN 60529 and IP69K according to ISO 20653

Cover configuration:No device

Housing:Metal housing, three threaded M20x1,5 conduit entries

Head:Rotating head with lock auxiliary release device

Working method:D working method, locked actuator with de-energized solenoid

Inputs and outputs:2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; I4 or IE1-IE2 inputs for solenoid activation, ; 1 reset input I3

Safety output activation OS:Activation mode 1: safety outputs active with actuator inserted and locked

Actuator:Complete with universal actuator with low coding level VN NG-F30

Type of connection:Without connector.
