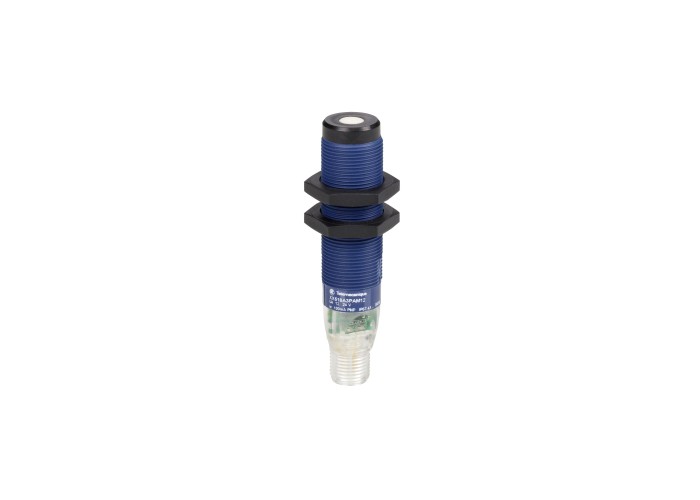

Telemecanique XX918A3C2M12 - OsiSense XX - Ултразвуков датчик цилиндричен м18 SN0,5 ultrasonic sensor cylindrical M18, Sn 0.5 m, 4...20 mA, M12 connector

Детайлна информация

Range of productTelemecanique Ultrasonic sensors XX

Sensor typeUltrasonic sensor

Series nameGeneral purpose

Sensor nameXX9

Sensor designCylindrical M18

Detection systemDiffuse

MaterialPlastic

Type of output signalAnalogue

Wiring technique4-wire

Analogue output function4...20 mA

[Us] rated supply voltage12...24 V DC with reverse polarity protection

Electrical connectionMale connector M12 4 pins

Enclosure materialValox

Front materialEpoxy

Thread typeM18 x 1

Voltage drop1 VOLT

Minimum size of detected objectCylinder diameter 1.6 mm

Delay first up100 MILLISECOND

Current consumption40 mA

Status LEDSetting-up assistance: 1 LED (dual colour), supply on: 1 LED (green), output state: 1 LED (yellow)

Maximum switching capacity10...500 Ohm overload and short-circuit protection

Setting-upSlope selection using teach button

Delay response25 MILLISECOND

Delay recovery25 MILLISECOND

Environment

IP degree of protectionIP67 conforming to IEC 60529

MarkingCE

StandardsIEC 60947-5-2

Product certificationsCCSAusUL

Vibration resistance+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)

Shock resistance30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
