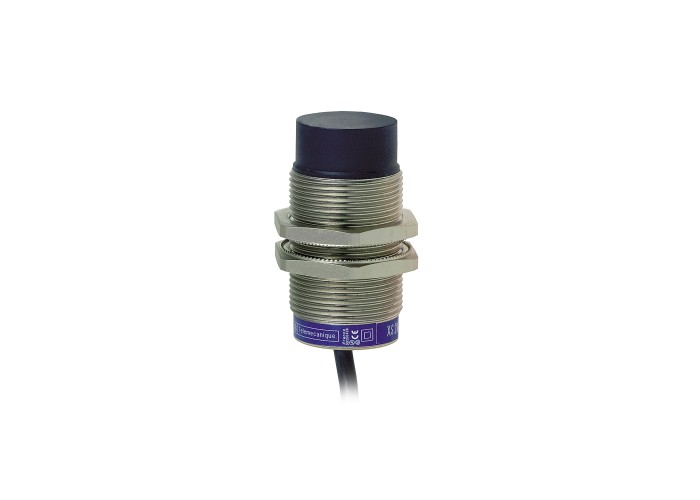

Индуктивен сензор XS6 M30, L66mm, месинг, Sn22mm, 24...240VAC/DC, кабел 2 m, Telemecanique XS630B4MBL2 - Osisense XS & XT

Детайлна информация

Виж продукта в 360°

Range of productTelemecanique Inductive proximity sensors XS

Series nameGeneral purpose

Sensor typeInductive proximity sensor

Sensor nameXS6

Sensor designCylindrical M30

Size66 mm

Body typeFixed

Type of output signalDiscrete

Wiring technique2-wire

Discrete output function1 NC

Detector flush mounting acceptanceNon flush mountable

MaterialMetal

Electrical connectionCable

[Us] rated supply voltage24...240 V AC/DC 50/60 Hz

Output circuit typeAC/DC

Switching capacity in mA5...200 mA DC, 5...300 mA AC

IP degree of protectionIP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050

Enclosure materialNickel plated brass

Detection faceFrontal

Thread typeM30 x 1.5

Front materialPPS

Sensing range> 15...40 mm

Differential travel1...15 % of Sr

Cable composition2 x 0.34 mm²

Residual current0.8 mA open state

Status LEDOutput state: 1 LED (yellow)

Wire insulation materialPVC

Switching frequency
