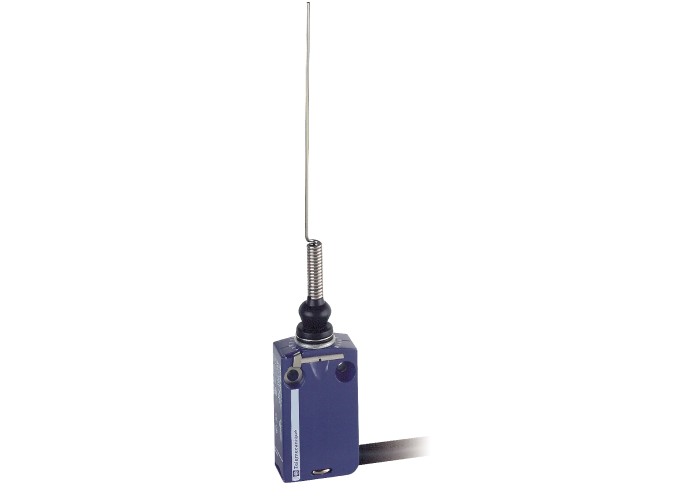

Краен изключвател с пружинен прът, 1NC+1NO бързодействащи, 1 m кабел, Telemecanique XCMD2106L1 - OsiSense XC Standard

Детайлна информация

Виж продукта в 360°

Range of productTelemecanique Limit switches XC Standard

Series nameStandard format

Product or component typeLimit switch

Device short nameXCMD

Sensor designMiniature

Body typeFixed

Head typeMulti-directional head

MaterialMetal

Body materialZamak

Head materialZamak

Fixing modeBy the body

Movement of operating headMulti-directional

Type of operatorSpring return cat''s whisker

Type of approachMulti-directional approach

Contacts type and composition1 NC + 1 NO

Contact operationSnap action

Switch actuationBy any moving part

Electrical connectionRemovable cable connector

Cable composition5 x 0.75 mm²

Wire insulation materialPvR

Contacts insulation formZb

Positive openingWithout

Contact code designationB300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

Resistance across terminals25 mOhm conforming to IEC 60255-7 category 3

Environment

Shock resistance25 gn for 18 ms conforming to IEC 60068-2-27

Vibration resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protectionIP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529

IK degree of protectionIK06 conforming to IEC 62262

Overvoltage categoryClass I conforming to IEC 61140, class I conforming to NF C 20-030

Protective treatmentTC

Product certificationsCSACCCUL

StandardsCSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
