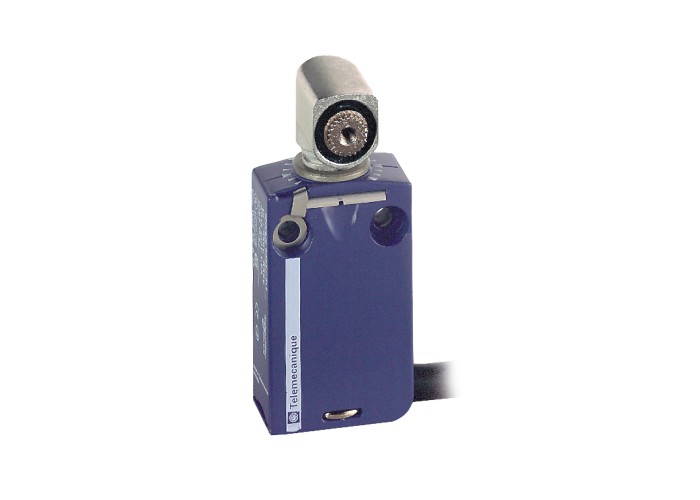

Краен изключвател с въртяща глава без управляващ лост, 1NC+1 NO бързодействащи, 1 m кабел, Telemecanique XCMD2101L1 - OsiSense XC Standard

Детайлна информация

Виж продукта в 360°

Range of productTelemecanique Limit switches XC Standard

Series nameStandard format

Product or component typeLimit switch

Device short nameXCMD

Sensor designMiniature

Body typeFixed

Head typeRotary head

MaterialMetal

Body materialZamak

Head materialZamak

Fixing modeBy the body

Movement of operating headRotary

Type of operatorSpring return without operating lever

Type of approachLateral approach, 2 directions

Contacts type and composition1 NC + 1 NO

Contact operationSnap action

Electrical connectionRemovable cable connector

Cable composition5 x 0.75 mm²

Contacts insulation formZb

Wire insulation materialPvR

Positive openingWith

Contact code designationB300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

Resistance across terminals25 mOhm conforming to IEC 60255-7 category 3

Environment

Shock resistance25 gn for 18 ms conforming to IEC 60068-2-27

Vibration resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protectionIP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529

IK degree of protectionIK06 conforming to IEC 62262

Overvoltage categoryClass I conforming to IEC 61140, class I conforming to NF C 20-030

Protective treatmentTC

Product certificationsCSACCCUL

StandardsCSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
