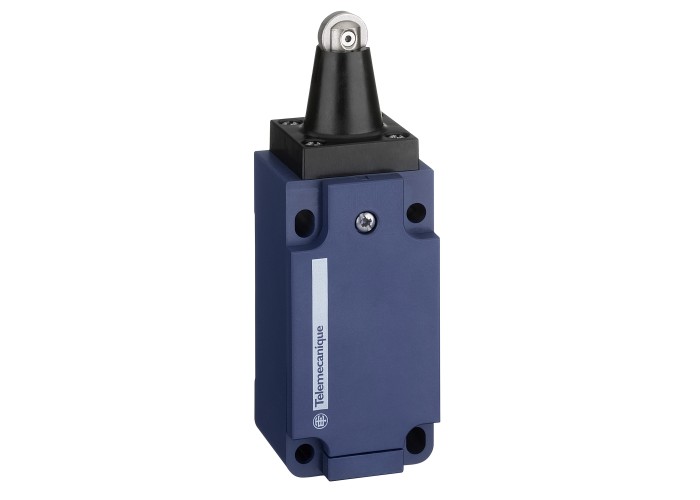

Краен изключвател с ролково бутало, 1NC+1 NO бързодействащи, Pg13, Telemecanique XCKS102 - OsiSense XC Standard

Детайлна информация

Виж продукта в 360°

Range of productTelemecanique Limit switches XC Standard

Series nameStandard format

Product or component typeLimit switch

Device short nameXCKS

Sensor designForm C conforming to CENELEC EN 50041

Body typeFixed

Head typePlunger head

MaterialPlastic

Body materialPlastic

Head materialPlastic

Fixing modeBy the body

Movement of operating headLinear

Type of operatorSpring return roller plunger metal

Type of approachLateral approach, 2 directions

Cable entry1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm

Contacts type and composition1 NC + 1 NO

Contact operationSnap action

Switch actuationBy 30° cam

Electrical connectionScrew-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Contacts insulation formZb

Positive openingWith

Contact code designationA300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

Resistance across terminals25 MOhm conforming to IEC 60255-7 category 3

Terminals description ISO n°1(21-22)NC(13-14)NO

Environment

Shock resistance40 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protectionIP67 conforming to IEC 60529, IP66 conforming to IEC 60529

IK degree of protectionIK05 conforming to IEC 62262

Electrical shock protection classClass II conforming to IEC 61140, class II conforming to NF C 20-030

Overvoltage categoryClass II conforming to IEC 61140, class II conforming to NF C 20-030

Protective treatmentTC

Product certificationsCSACCCUL

StandardsCSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1
