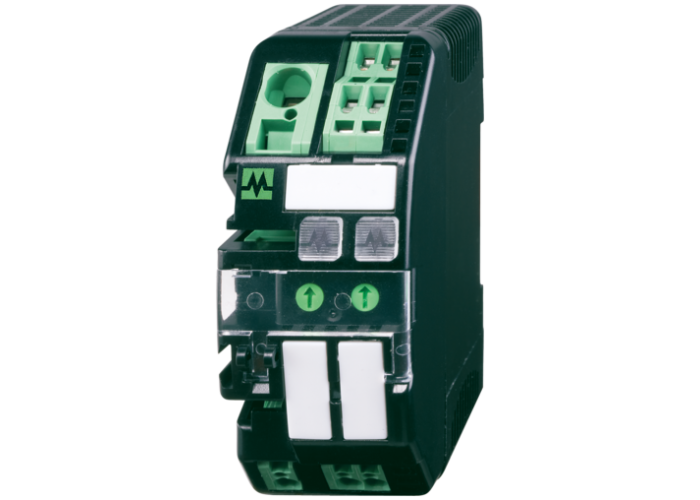

MICO electronic circuit protection, 2 CHANNELS / IN: 24 V DC OUT: 24 V DC / 1-2-4-6 A, Murrеlektronik 9000-41042-0100600

Детайлна информация

Electrical data | Input

Input voltage DC24 V

Input voltage DC min.18 V

Input voltage DC max.30 V

ON input voltage control inputs min.10 V

ON input voltage control inputs max.30 V

ON pulse length control inputs high min.20 ms

Total current bridge set max.40 A

Switch-on capacity per channel max.20 mF

Switching voltage AC max.30 V

Switching voltage DC max.30 V

Switching current max.100 mA

Connection cross-section inputs max.16 mm²

Connection cross-section outputs max.4 mm²

Connection cross-section control inputs / control outputs max.2,5 mm²

Mounting methodgeschnappt

Suitable for mounting typeMounting rail TH35, (EN 60715)

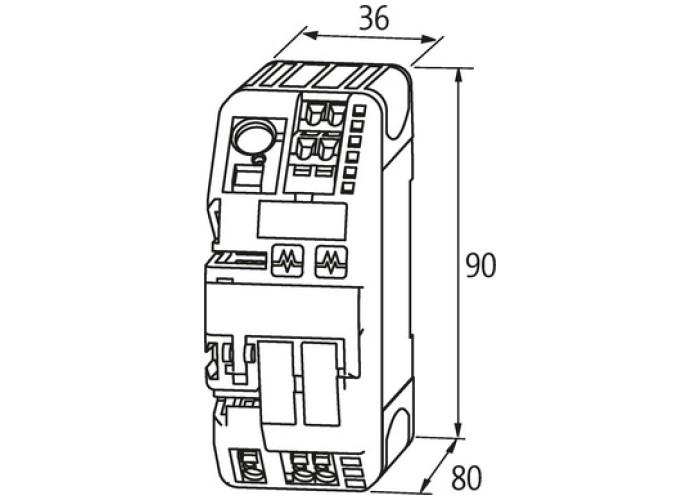

Height90 mm

Width36 mm

Depth80 mm

Operating temperature min.0 °C

Operating temperature max.55 °C

Storage temperature min.-40 °C

Storage temperature max.80 °C
