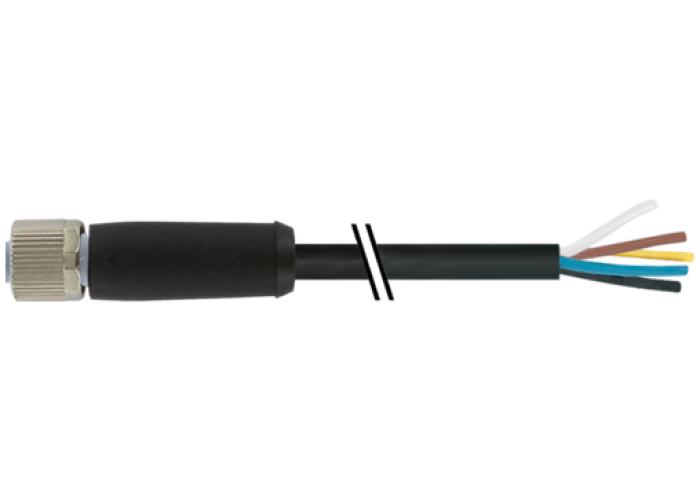

M12 Power female 0° L-cod. with cable / PUR 5x2.5 bk UL/CSA+drag ch. 10m, Murrelektronik 7000-P4221-P341000

Детайлна информация

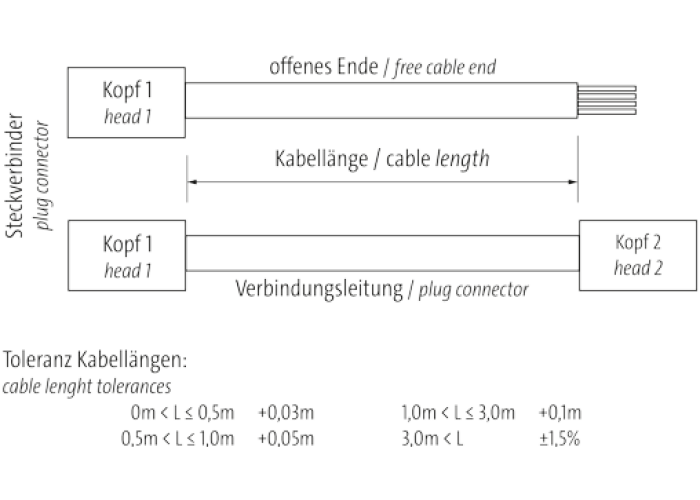

Cable length10 m

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Coating contactgold plated

Family construction formM12P

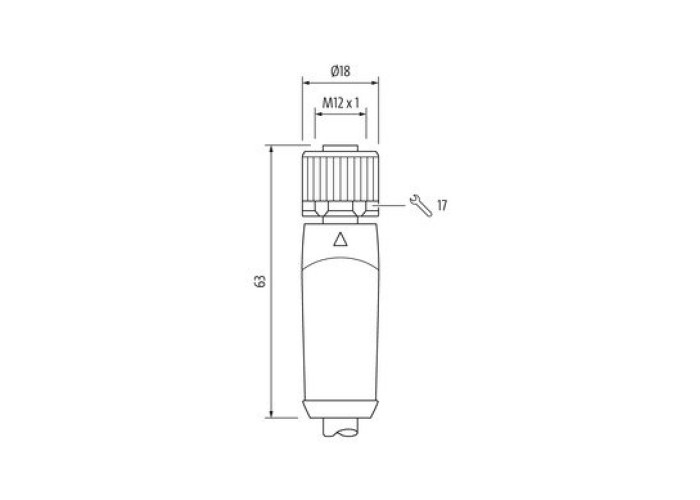

ThreadM12 x 1

suitable for corrugated tube (internal Ø)16,4 mm

Cable outletstraight

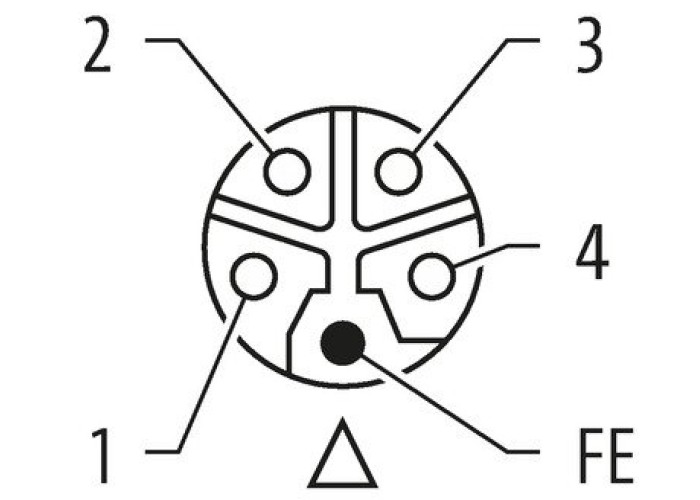

CodingL

Material contactCopper alloy

MaterialPUR

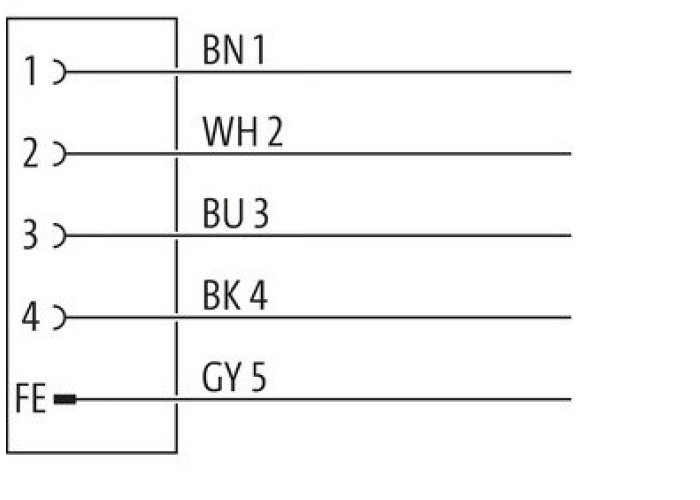

No. of poles5

Width across flatsSW17

Degree of protection (EN IEC 60529)IP65, IP67

Stripping length (jacket)100 mm

Family construction formfree cable end

Operating voltage DC max.63 V

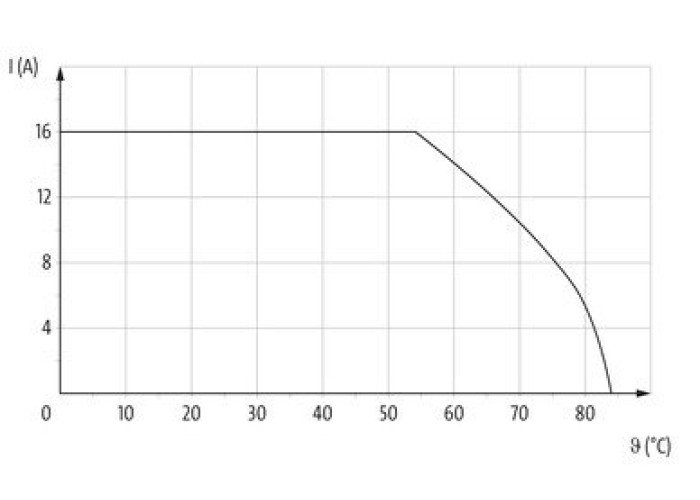

Current operating per contact max.16 A

Stripping length (jacket)100 mm

Width across flatsSW17

Mating cycles min.100

Degree of protection (EN IEC 60529)IP65, IP67

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage1,5 kV

Material group (IEC 60664-1)I

Coating lockingNickeled

Material gasketFKM

Material housingPUR

Locking materialZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Operating temperature min.-25 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Product standardIEC 61076-2-111
