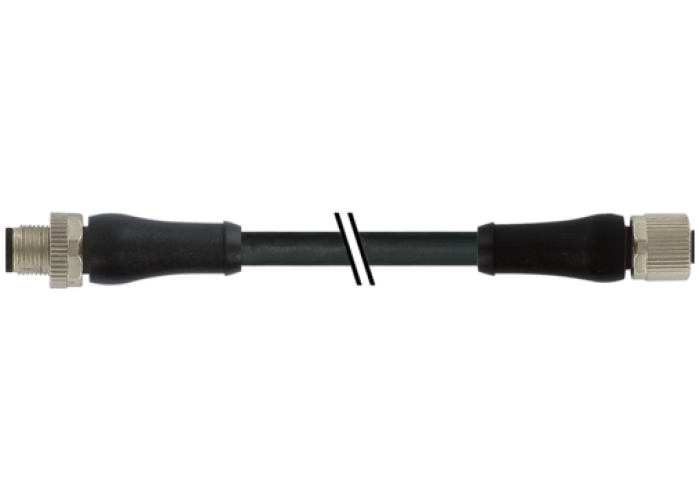

M12 Power male 0° / female 0° L-cod. / PUR 4x1.5 bk UL/CSA+drag ch. 10m, Murrelektronik 7000-P4141-P071000

Детайлна информация

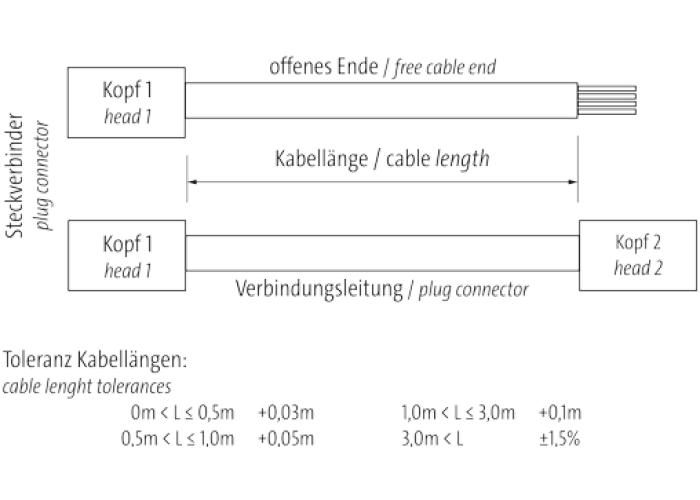

Cable length10 m

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Coating contactgold plated

Family construction formM12P

ThreadM12 x 1

suitable for corrugated tube (internal Ø)12 mm

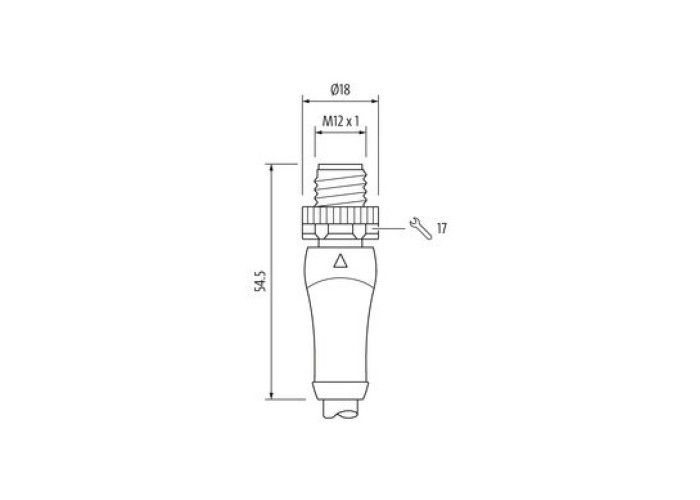

Gendermale

Cable outletstraight

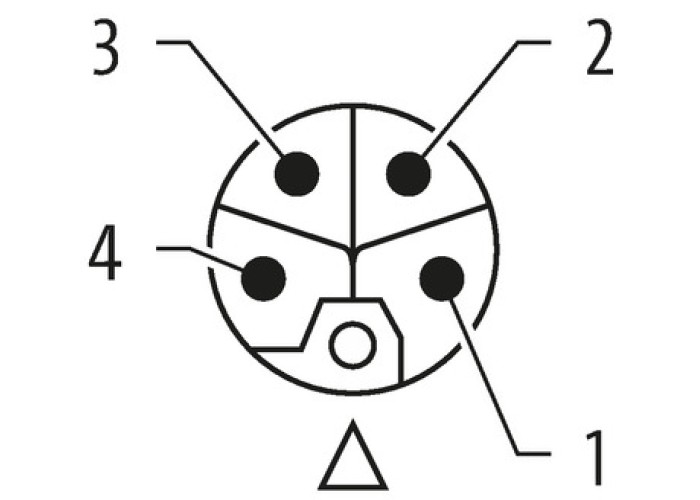

CodingL

Material contactCopper alloy

MaterialPUR

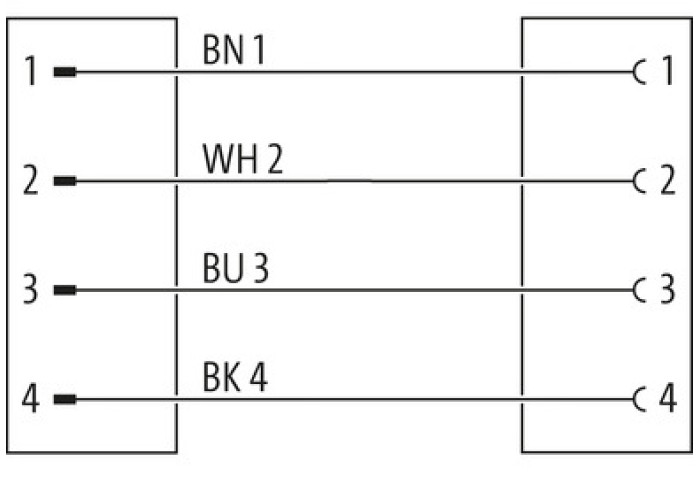

No. of poles4

Width across flatsSW17

Degree of protection (EN IEC 60529)IP65, IP67

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Coating contactgold plated

Family construction formM12P

ThreadM12 x 1

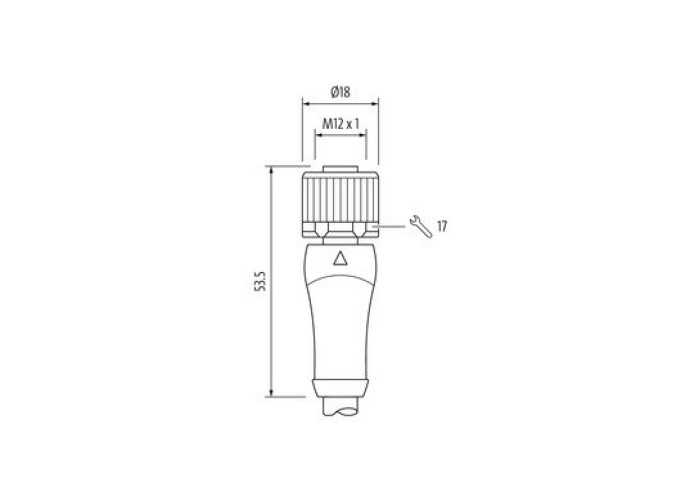

Genderfemale

suitable for corrugated tube (internal Ø)12 mm

Cable outletstraight

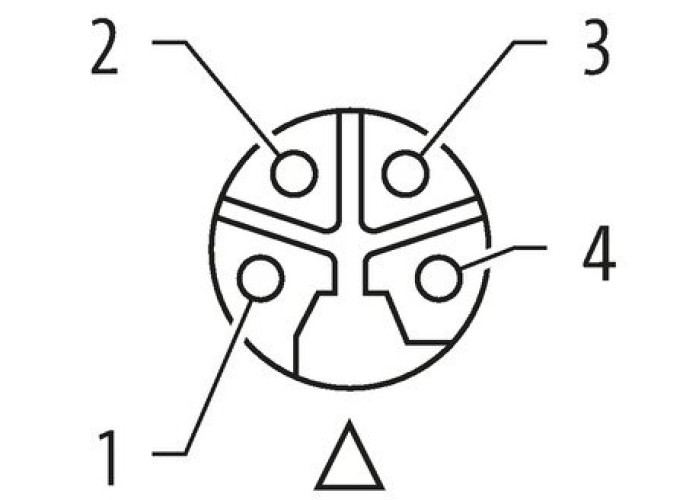

CodingL

Material contactCopper alloy

MaterialPUR

No. of poles4

Width across flatsSW17

Degree of protection (EN IEC 60529)IP65, IP67

Operating voltage DC max.63 V

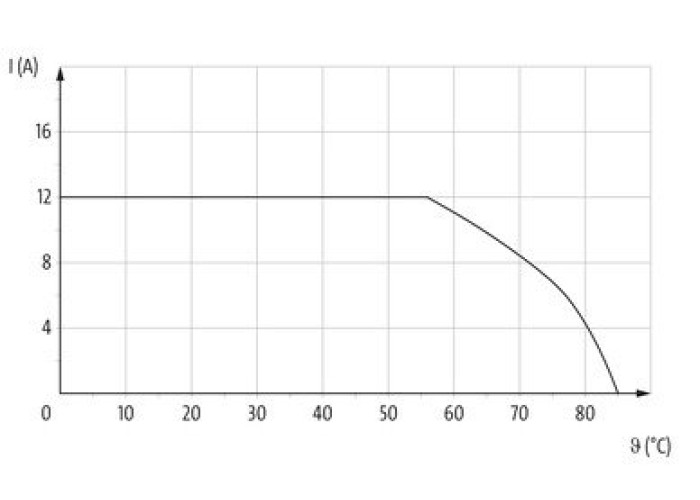

Current operating per contact max.12 A

Status indication LEDno

Width across flatsSW17

Degree of protection (EN IEC 60529)IP65, IP67

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage1,5 kV

Material group (IEC 60664-1)I

Coating lockingNickeled

Material gasketFKM

Material housingPUR

Locking materialZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Operating temperature min.-25 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Product standardIEC 61076-2-111
