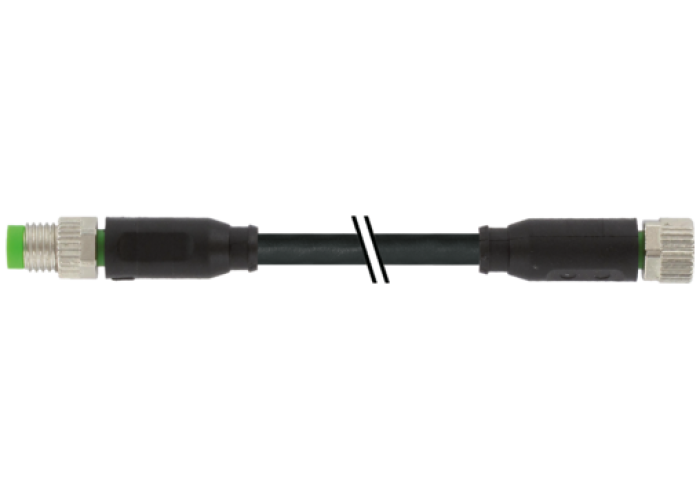

M8 male 0° / M8 female 0° A-cod. / PUR 4x0.25 bk UL/CSA+drag ch. 1m, Murrelektronik 7000-88011-6310100

Детайлна информация

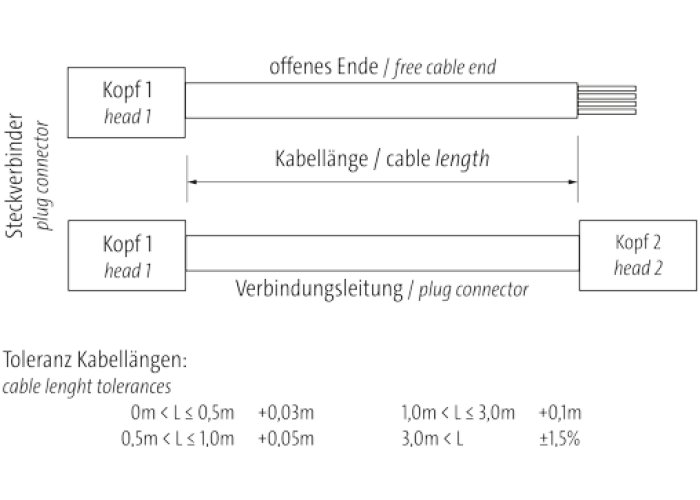

Cable length1 m

Tightening torque0,4 Nm

Mounting methodinserted, screwed

Coating contactgold plated

Family construction formM8

ThreadM8 x 1

suitable for corrugated tube (internal Ø)6,5 mm

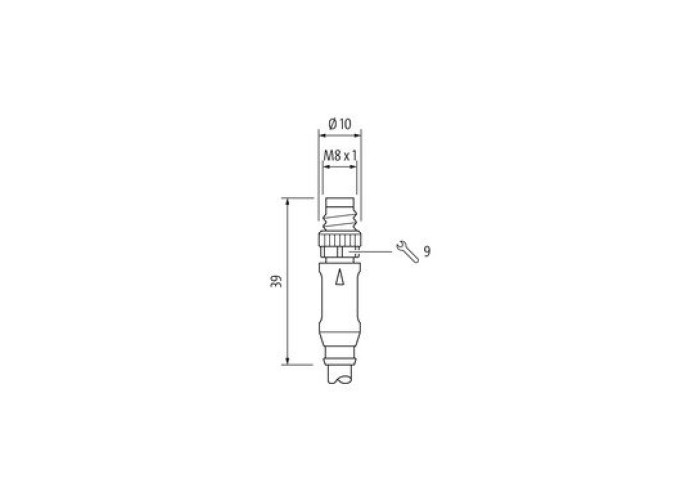

Gendermale

Cable outletstraight

CodingA

Material contactCopper alloy

MaterialPUR

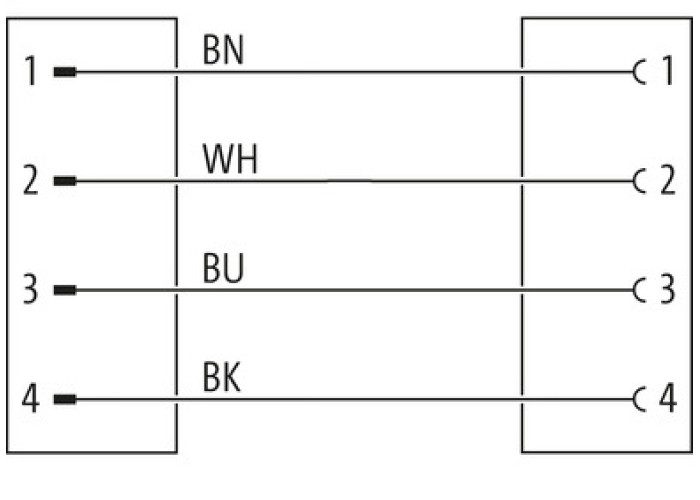

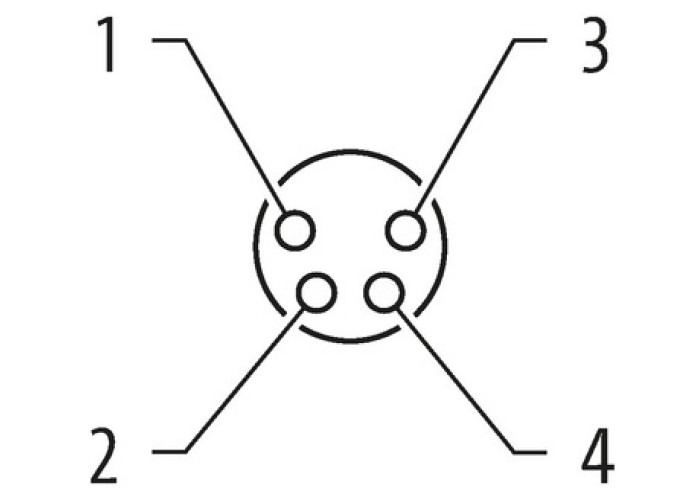

No. of poles4

Width across flatsSW9

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Tightening torque0,4 Nm

Mounting methodinserted, screwed

Coating contactgold plated

Family construction formM8

ThreadM8 x 1

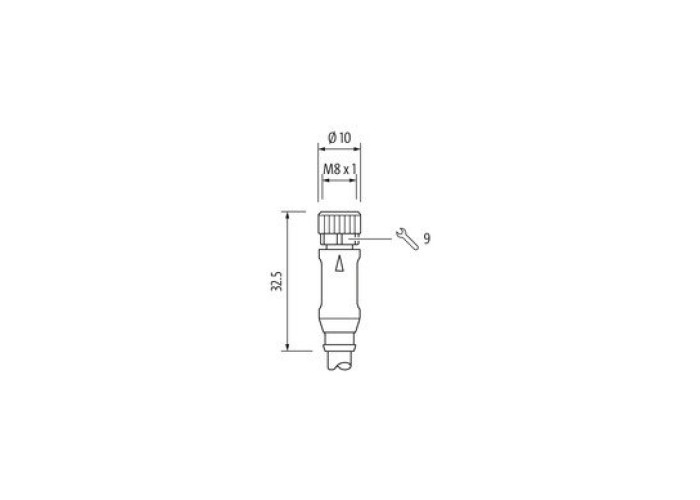

Genderfemale

suitable for corrugated tube (internal Ø)6,5 mm

Cable outletstraight

CodingA

Material contactCopper alloy

MaterialPUR

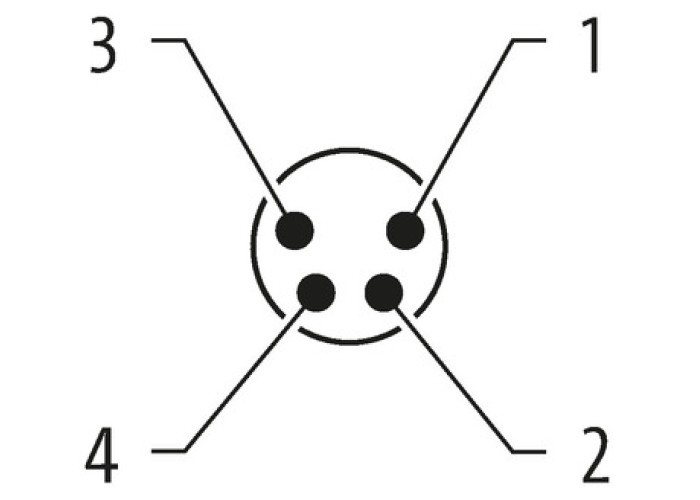

No. of poles4

Width across flatsSW9

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Operating voltage AC max.50 V

Operating voltage DC max.60 V

Current operating per contact max.4 A

Status indication LEDno

Degree of protection (EN IEC 60529)IP65, IP67, IP68, IP66K

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage1,5 kV

Material group (IEC 60664-1)I

Coating lockingNickeled

Material gasketFKM

Material housingPUR

Locking materialZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Operating temperature min.-30 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Product standardDIN EN 61076-2-114 (M8)
