RJ45 male 0° with cable shielded / PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 15m, Murrelektronik 7000-74101-7961500

Детайлна информация

Cable length15 m

Family construction formRJ45

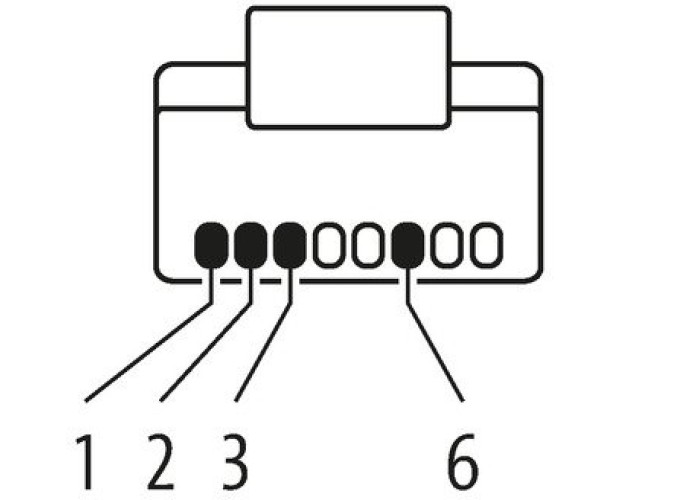

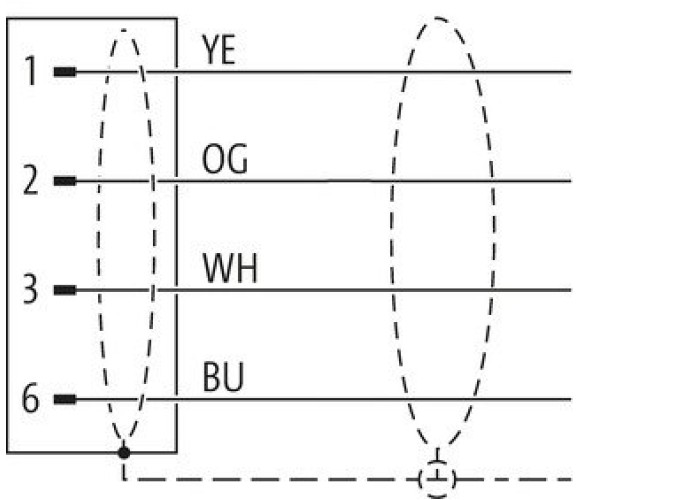

No. of poles4

Operating voltage DC max.60 V

Operating voltage DC max. (UL-listed)30 V

Current operating per contact max.1,5 A

Transfer parametersCAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)

Data transmission rate max.100 MBit/s

duplexFull duplex

Degree of protection (EN IEC 60529)IP20

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage1 kV

Material group (IEC 60664-1)I

Contour for corrugated hosewithout

Material housingPUR

Operating temperature min.-25 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
