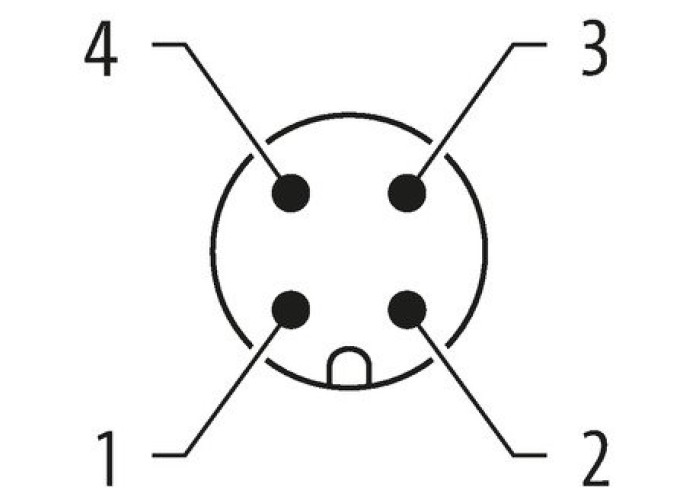

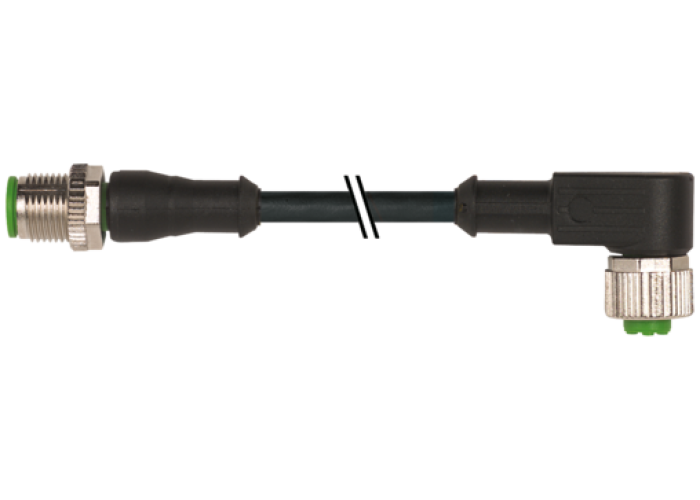

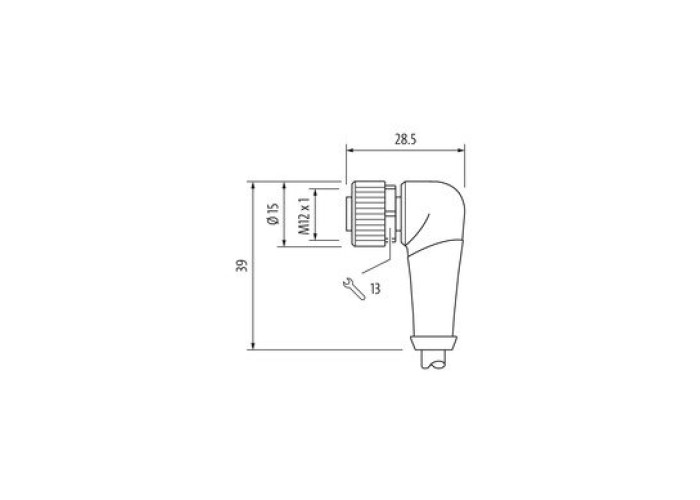

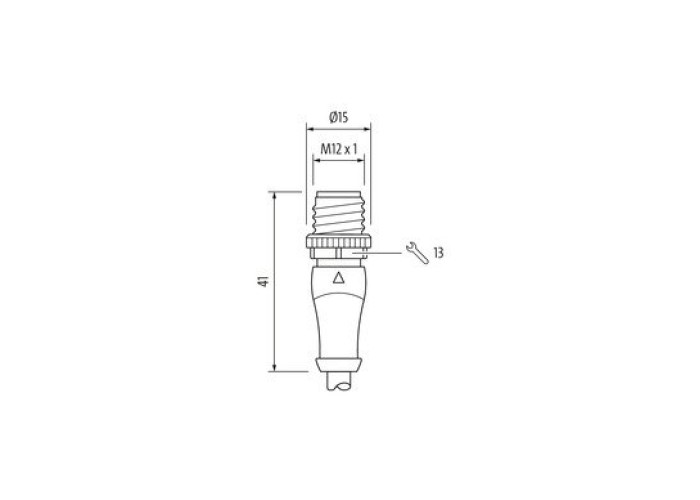

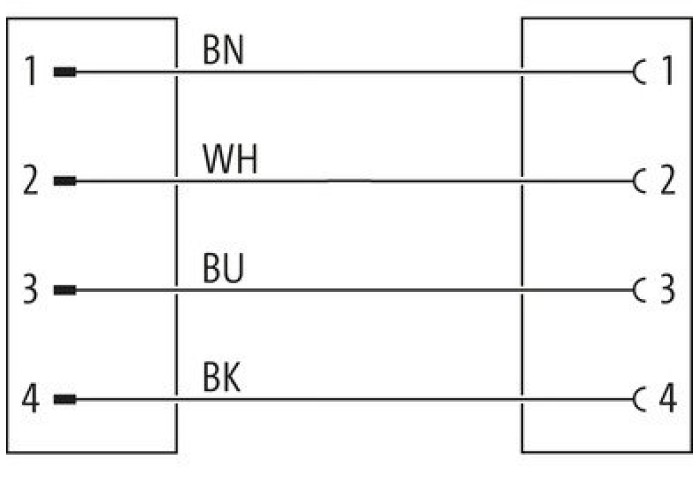

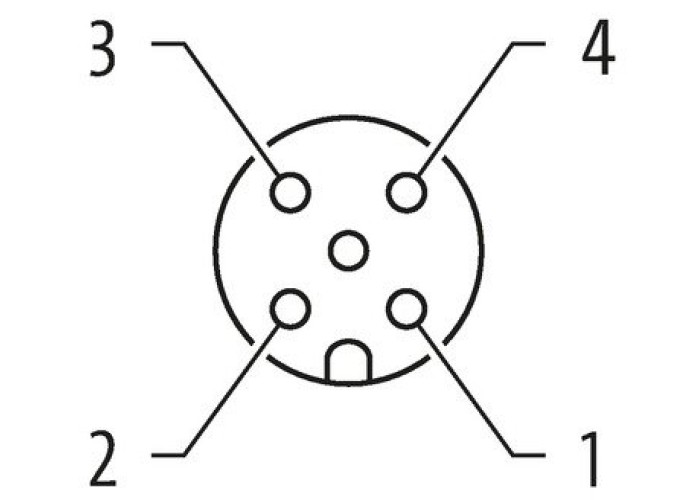

M12 male 0° / M12 female 90° A-cod. / PUR 4x0.34 bk UL/CSA+drag ch. 3m, Murrelektronik 7000-40121-6340300

Детайлна информация

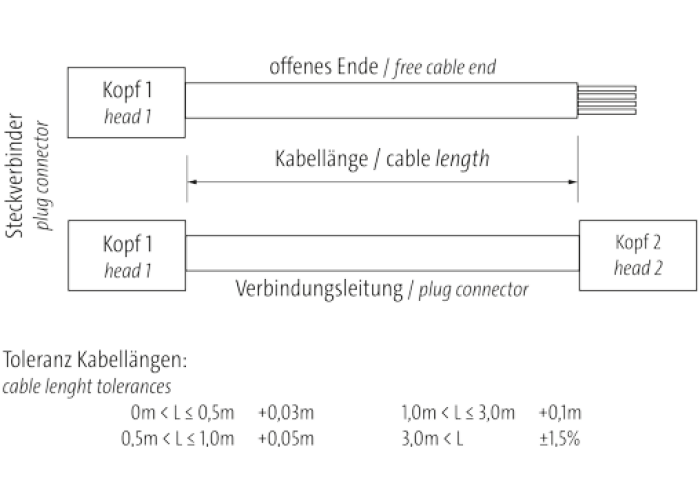

Cable length3 m

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Family construction formM12

ThreadM12 x 1

suitable for corrugated tube (internal Ø)10 mm

MaterialPUR

Width across flatsSW13

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Family construction formM12

ThreadM12 x 1

suitable for corrugated tube (internal Ø)10 mm

MaterialPUR

Width across flatsSW13

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Operating voltage AC max.250 V

Operating voltage DC max.250 V

Current operating per contact max.4 A

Mounting setM12 x 1

Additional condition protection degreeinserted, screwed

Pollution Degree3

Material group (IEC 60664-1)I

Coating lockingNickeled

Coating of fittingnickel plated

Locking materialZinc die-casting

Material screw connectionZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Operating temperature min.-30 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Product standardDIN EN 61076-2-101 (M12)
