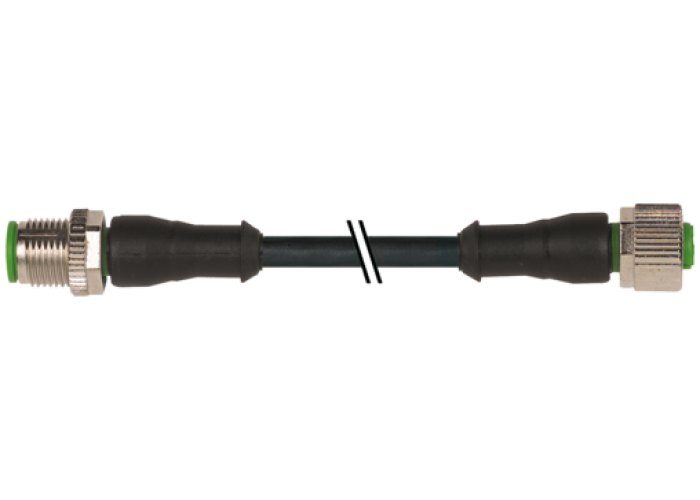

M12 male 0° / M12 female 0° A-cod. / PUR 5x0.34 bk UL/CSA+drag ch. 2m, Murrelektronik 7000-40041-6350200

Детайлна информация

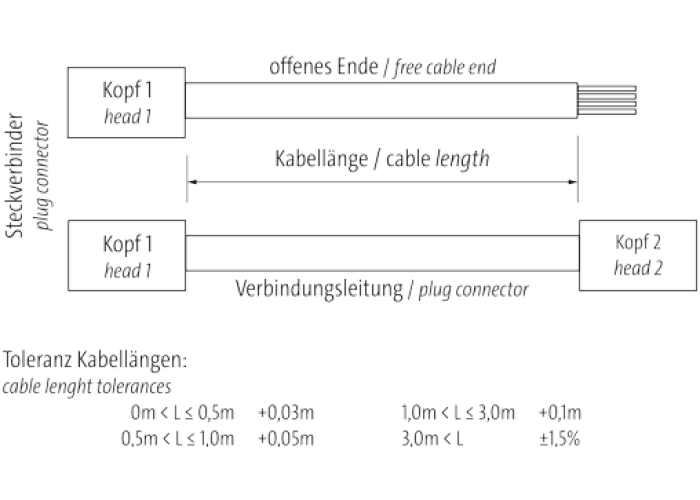

Cable length2 m

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Family construction formM12

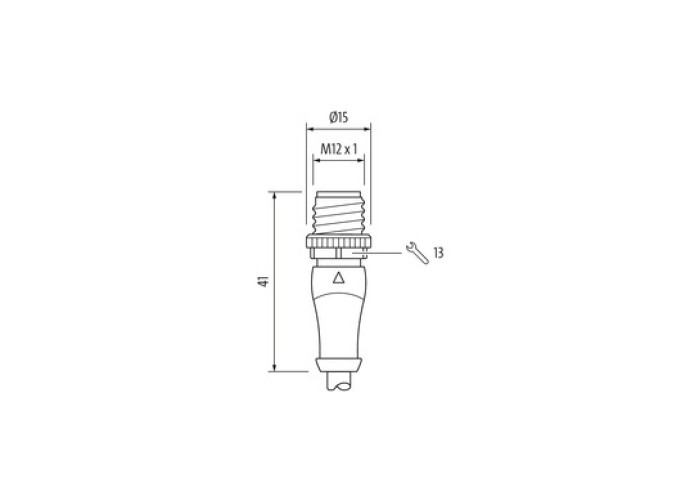

ThreadM12 x 1

suitable for corrugated tube (internal Ø)10 mm

Cable outletstraight

CodingA

MaterialPUR

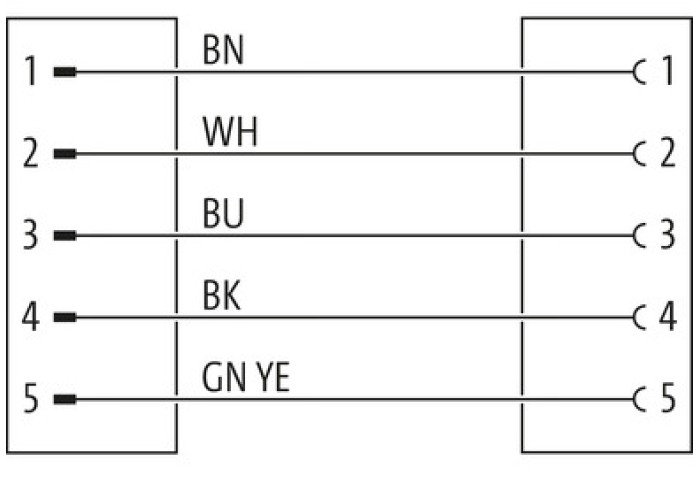

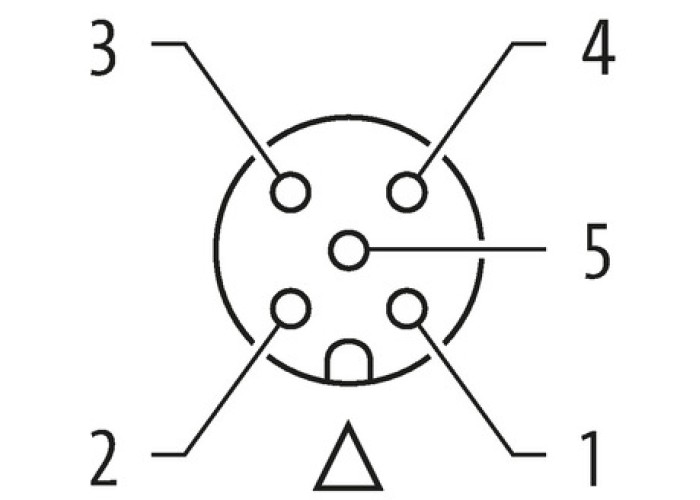

No. of poles5

Width across flatsSW13

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Family construction formM12

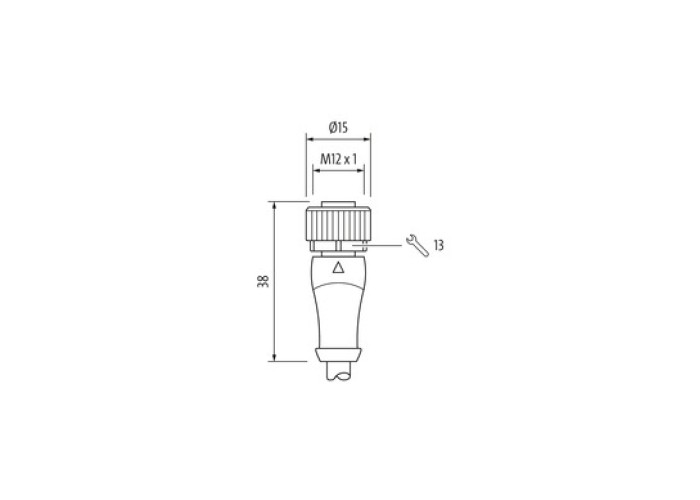

ThreadM12 x 1

suitable for corrugated tube (internal Ø)10 mm

Cable outletstraight

CodingA

MaterialPUR

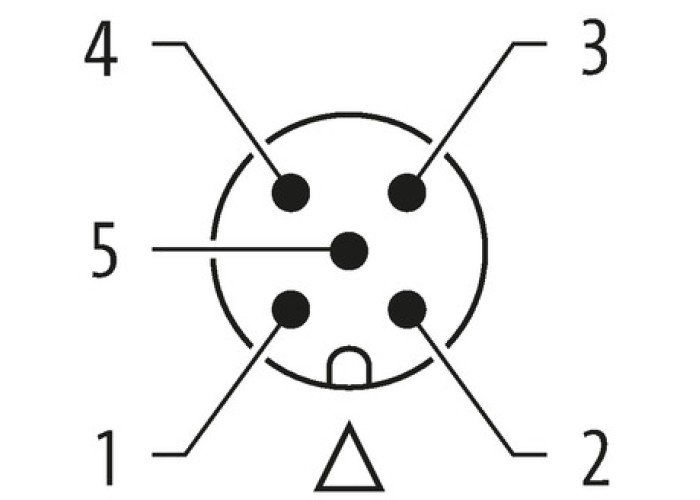

No. of poles5

Width across flatsSW13

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Operating voltage AC max.125 V

Operating voltage DC max.125 V

Current operating per contact max.4 A

Mounting setM12 x 1

Degree of protection (EN IEC 60529)IP65, IP67, IP66K

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage1,5 kV

Material group (IEC 60664-1)I

Coating lockingNickeled

Coating of fittingnickel plated

Locking materialZinc die-casting

Material screw connectionZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Operating temperature min.-30 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Product standardDIN EN 61076-2-101 (M12)
