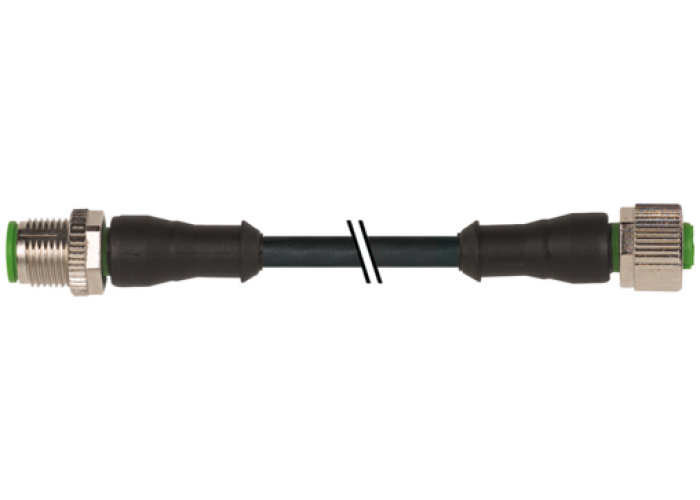

M12 male 0° / M12 female 0° A-cod. / PUR 4x0.34 bk UL/CSA+drag ch. 10m, Murrelektronik 7000-40021-6341000

Детайлна информация

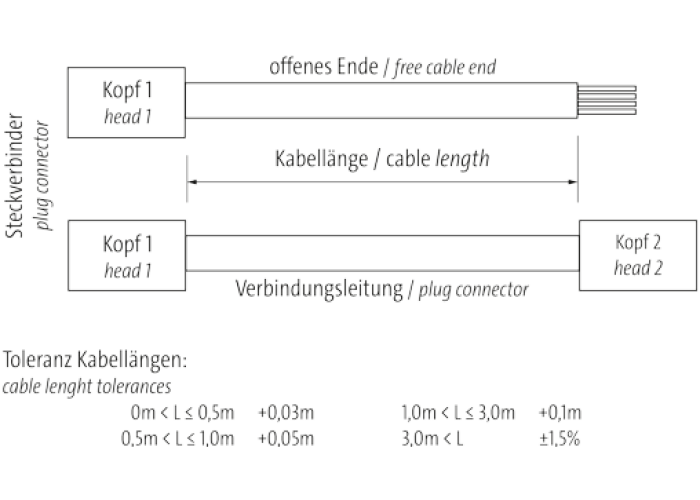

Cable length10 m

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Family construction formM12

ThreadM12 x 1

suitable for corrugated tube (internal Ø)10 mm

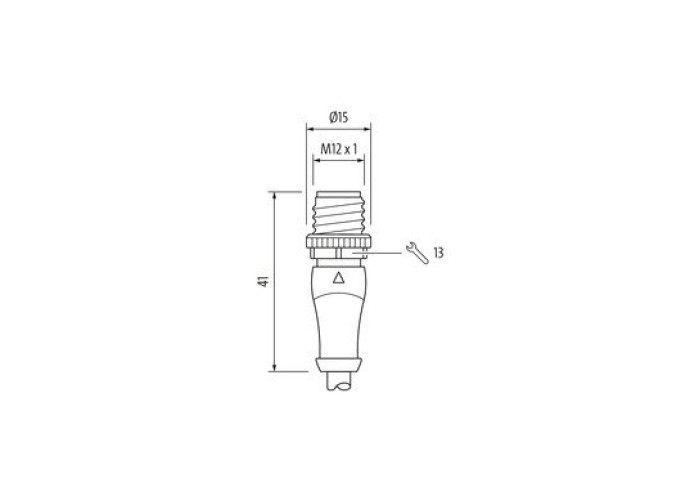

Gendermale

Cable outletstraight

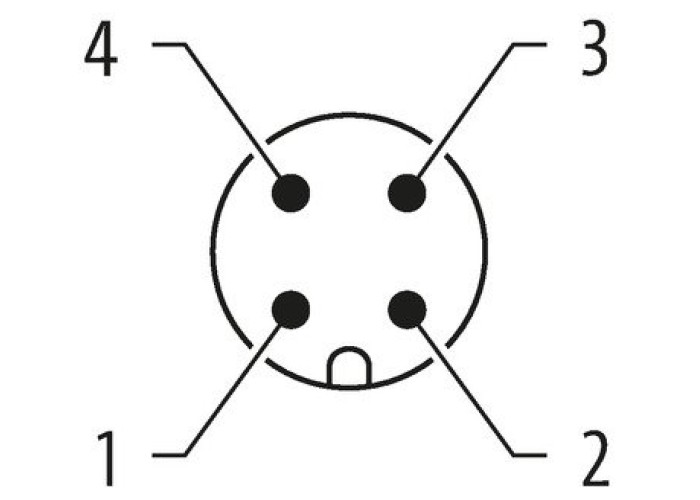

CodingA

MaterialPUR

No. of poles4

Width across flatsSW13

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Family construction formM12

ThreadM12 x 1

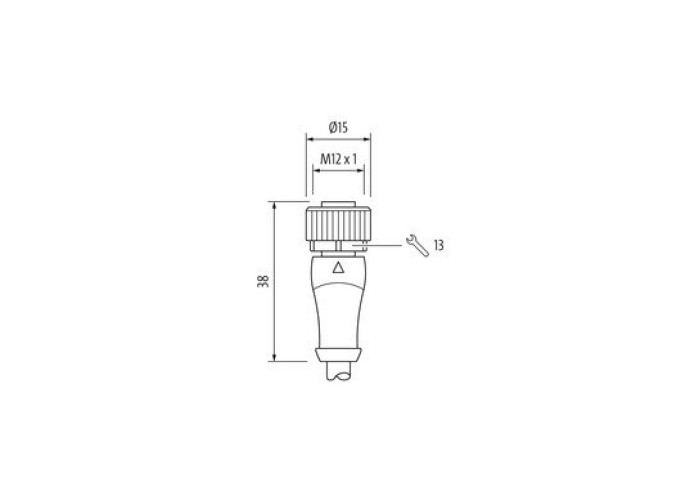

Genderfemale

suitable for corrugated tube (internal Ø)10 mm

Cable outletstraight

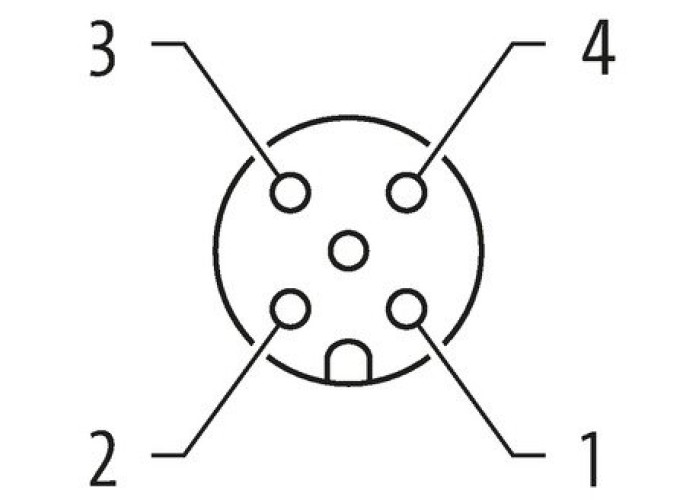

CodingA

MaterialPUR

No. of poles4

Width across flatsSW13

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Operating voltage AC max.250 V

Operating voltage DC max.250 V

Current operating per contact max.4 A

Status indication LEDno

Mounting setM12 x 1

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage2,5 kV

Material group (IEC 60664-1)I

Coating lockingNickeled

Coating of fittingnickel plated

Color contact carriergreen

Locking materialZinc die-casting

Material screw connectionZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Operating temperature min.-30 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Product standardDIN EN 61076-2-101 (M12)
