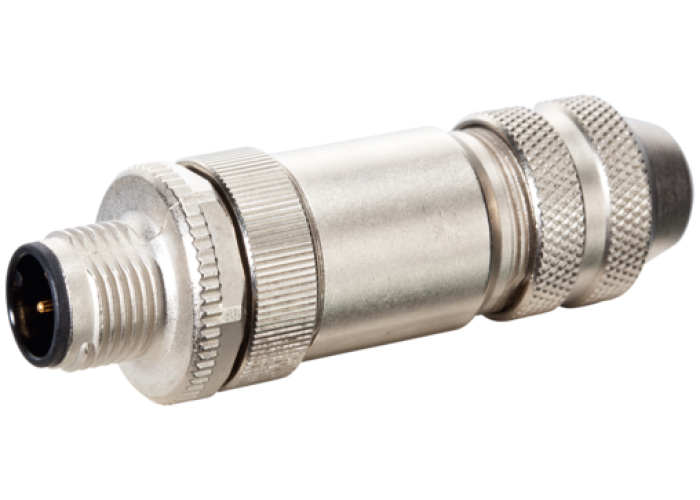

Конектор М12, 6..8mm, 5-пол., Мъжки, B-cod., Murrelektronik 7000-14001-0000000

Детайлна информация

Side 1

Tightening torque0,6 Nm

Family construction formM12

ThreadM12 x 1

Degree of protection (EN IEC 60529)IP67

Operating voltage AC max.60 V

Operating voltage DC max.60 V

Current operating per contact max.4 A

Connection cross section max.0,75 mm²

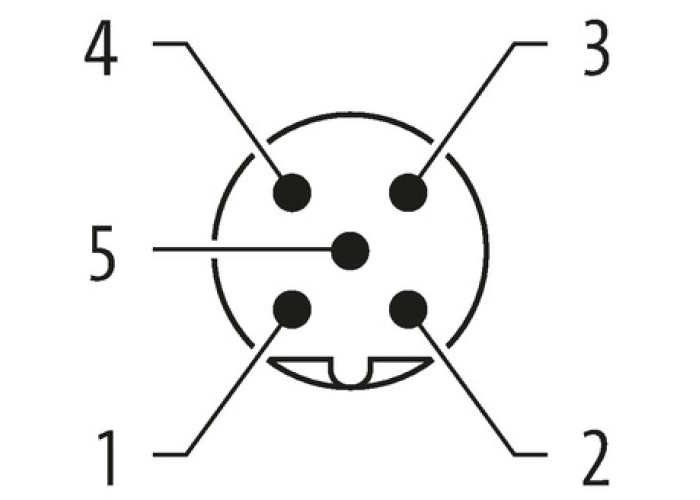

CodingB

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage1,5 kV

Material group (IEC 60664-1)II

Coating housingNickeled

Coating lockingNickeled

Material housingZinc die-casting

Locking materialZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Clamping range min.6 mm

Clamping range max.8 mm

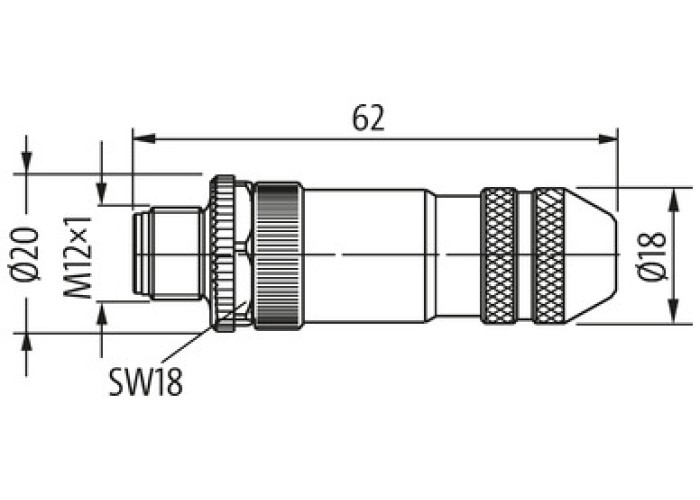

Height62 mm

Width20 mm

Depth20 mm

Operating temperature min.-40 °C

Operating temperature max.85 °C

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
