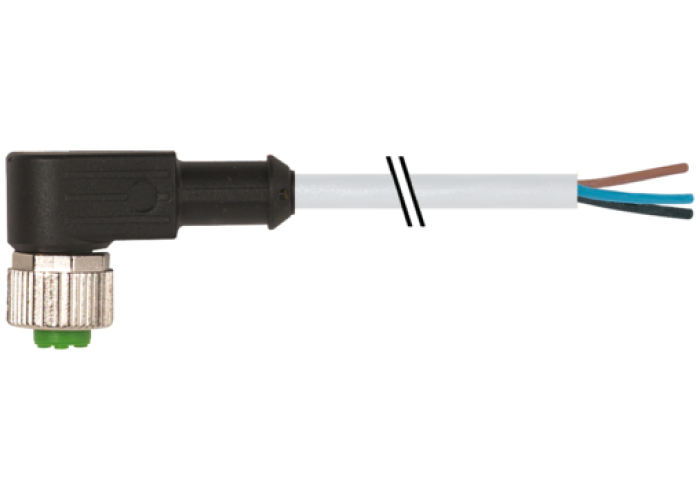

Конектор M12 Женски 90° A-cod. with cable / PVC 3x0.34 gy UL/CSA, 1.5m, Murrelektronik 7000-12321-2130150

Детайлна информация

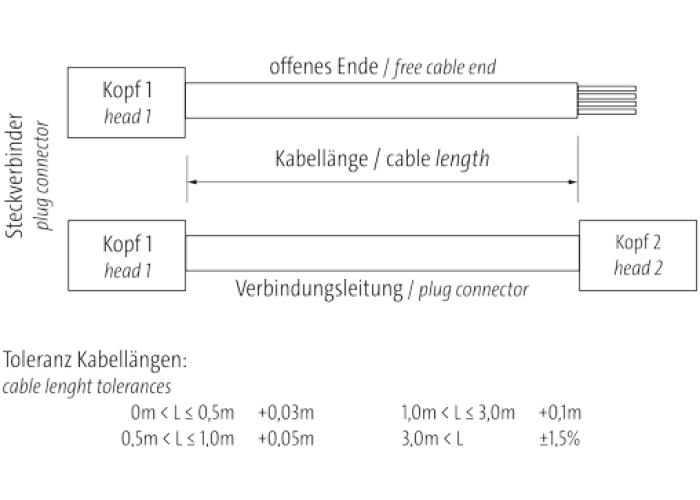

Cable length1,5 m

Tightening torque0,6 Nm

Mounting methodinserted, screwed

Coating contactgold plated

Family construction formM12

ThreadM12 x 1

suitable for corrugated tube (internal Ø)10 mm

Cable outletangled

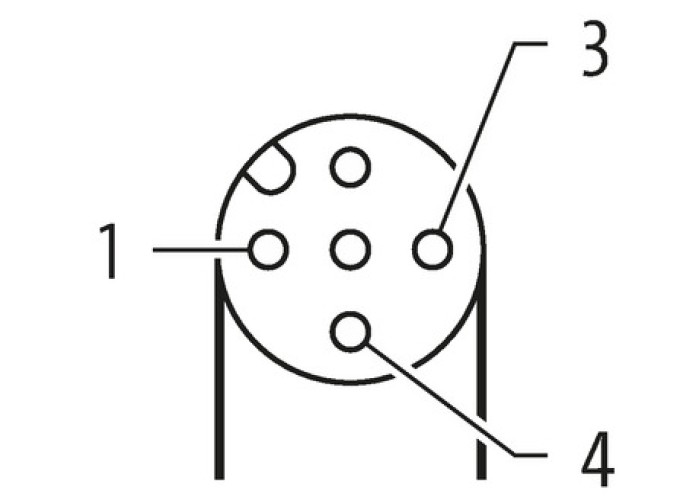

CodingA

Material contactCopper alloy

MaterialPUR

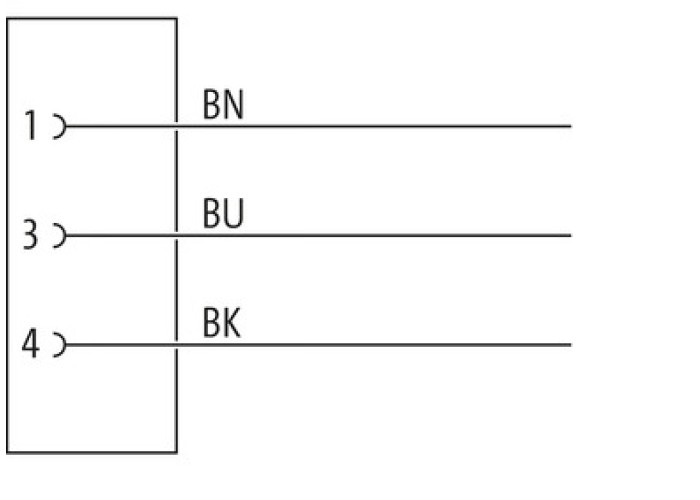

No. of poles3

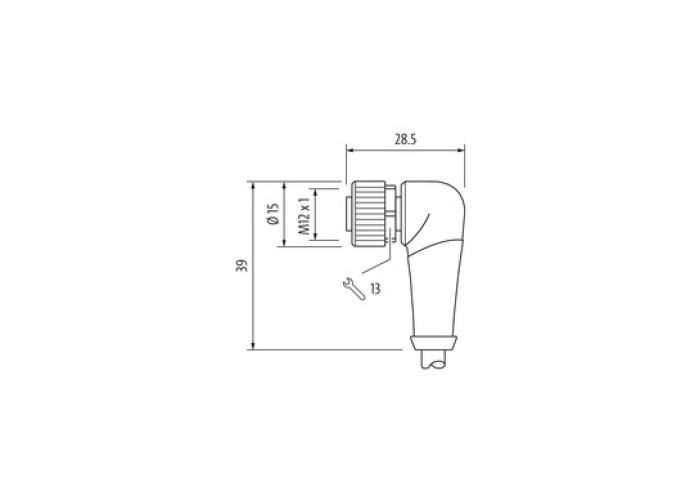

Width across flatsSW13

Degree of protection (EN IEC 60529)IP65, IP66K, IP67

Stripping length (jacket)20 mm

Family construction formfree cable end

Operating voltage AC max.250 V

Operating voltage DC max.250 V

Current operating per contact max.4 A

Status indication LEDno

Stripping length (jacket)20 mm

Mounting setM12 x 1

Genderfemale

Degree of protection (EN IEC 60529)IP65, IP67, IP66K

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage2,5 kV

Material group (IEC 60664-1)I

Coating lockingNickeled

Coating of fittingnickel plated

Locking materialZinc die-casting

Material screw connectionZinc die-casting

Mounting methodinserted, screwed, Shaking protection

Operating temperature min.-30 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Product standardDIN EN 61076-2-101 (M12)
