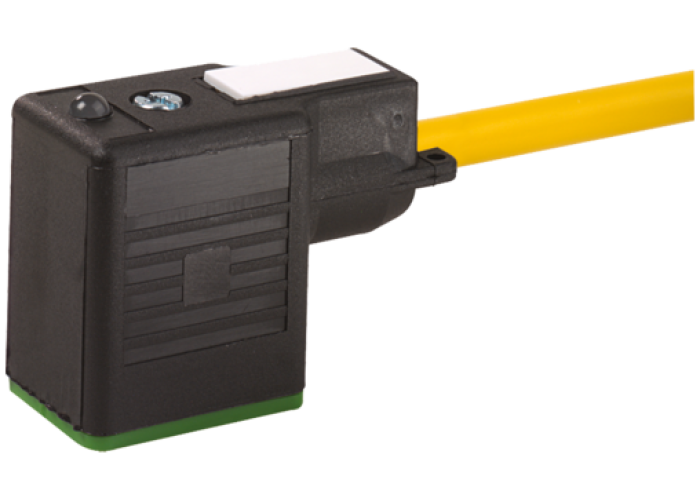

Вентилен щекер MSUD valve plug BI-11mm with cable / PVC 3x0.75 ye 1.5m, Murrelektronik 7000-11061-0160150

Детайлна информация

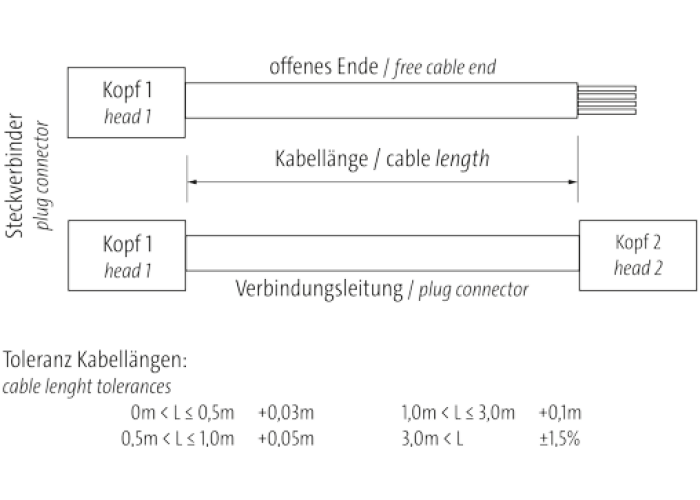

Cable length1,5 m

Tightening torque0,4 Nm

Mounting methodinserted, screwed

Family construction formMSUD BI

ThreadM3

MaterialPBT

Degree of protection (EN IEC 60529)IP67

Operating voltage AC max.250 V

Operating voltage DC max.250 V

Current operating per contact max.10 A

Mounting setM3

Additional condition protection degreeinserted, screwed

Pollution Degree3

Rated surge voltage4 kV

Coating of fittinggalvanized

Color housingblack

Material housingPlastic

Material screw connectionSteel

Mounting methodinserted, screwed

Operating temperature min.-25 °C

Operating temperature max.85 °C

Additional condition temperature rangedepending on cable quality

Note on strain reliefProtect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radiusAttention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
