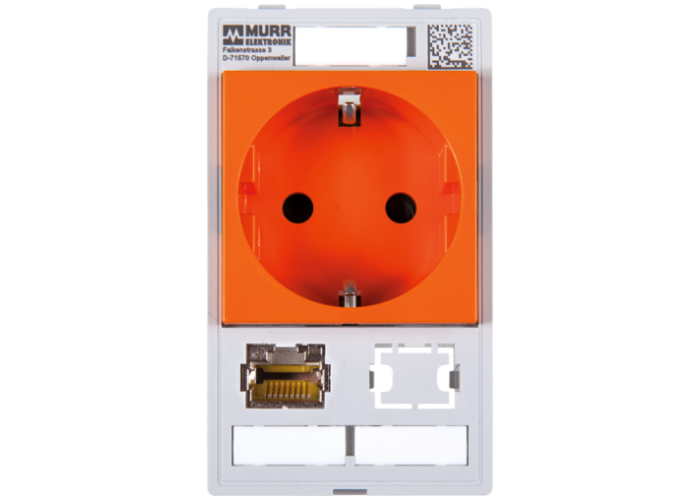

Modlink MSDD комбинирана вложка контакт шуко оранжев / 1x RJ45 + 1x data cutout, Murrelektronik 4000-68000-4620001

Детайлна информация

Device protection | Electrical

Degree of protection (EN IEC 60529)IP20

Height87,5 mm

Width50,7 mm

Depth43 mm

Operating temperature min.-5 °C

Operating temperature max.50 °C

Storage temperature min.-10 °C

Storage temperature max.60 °C

Connection informationThreaded hole M4

Tightening torque0,9 Nm

Connection cross section max.2,5 mm²

AWG number max.14

Operating voltage AC250 V

Operating current16 A

ConnectionSpring clamp terminals FK

No. of poles2 + PE

Connections per pole2

Protection contact presentyes

Operating voltage AC max. (UL-listed)30 V

Operating voltage DC max. (UL-listed)42,4 V

Current operating max. (UL)175 mA

Family construction formRJ45

Family type Back sideRJ45

Cable category min.Cat6a

Looking techniquesSnap-in connector
