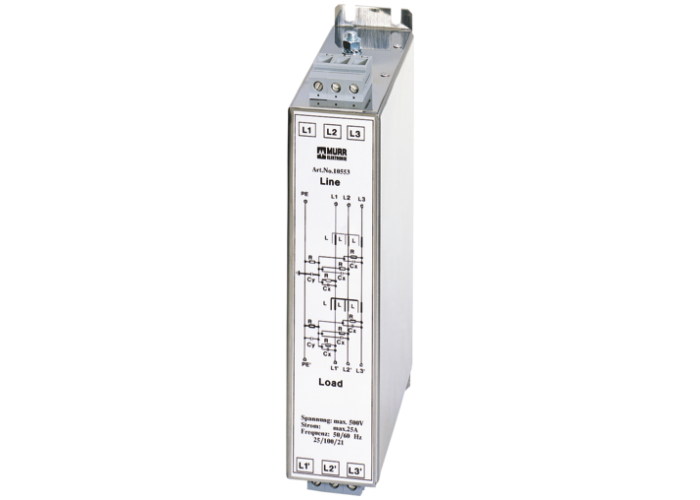

EMC филтър MEF 3-Phase 2-Stage, I:12A U:3x500 VAC book-style, Murrеlektronik 10551

Детайлна информация

Electrical data

Leakage current max.15 mA @ 250 V AC, 50 Hz

Power frequency50 ... 60 Hz

Operating voltage AC max.500 V

Phase number input3

Overload current18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)

Connection cross-section solid min.0,2 mm²

Connection cross-section solid max.10 mm²

Connection cross-section stranded/fine-stranded min.0,2 mm²

Connection cross-section stranded/fine-stranded max.6 mm²

AWG number solid min.24

AWG number solid max.7

AWG number stranded/fine stranded min.24

AWG number stranded/fine stranded max.9

Duration insulation test voltage2 s

Insulation test voltage L-L3,1 kV

Insulation test voltage L-N3,3 kV

Mounting methodscrewed

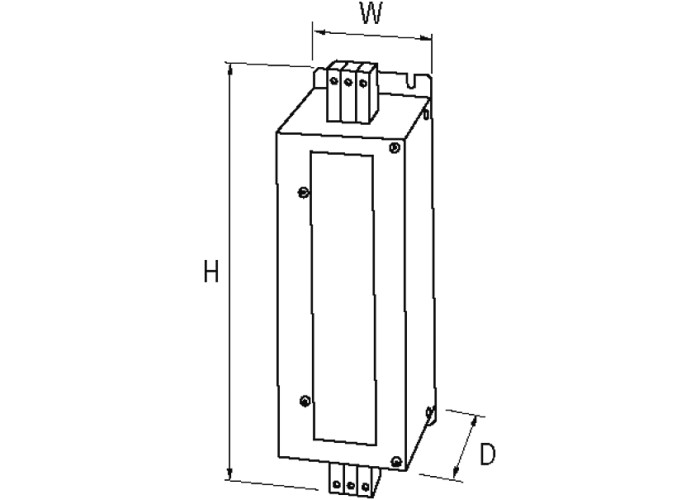

Height226 mm

Width50 mm

Depth140 mm

Climatic category (EN IEC 60068-1)25/085/21
