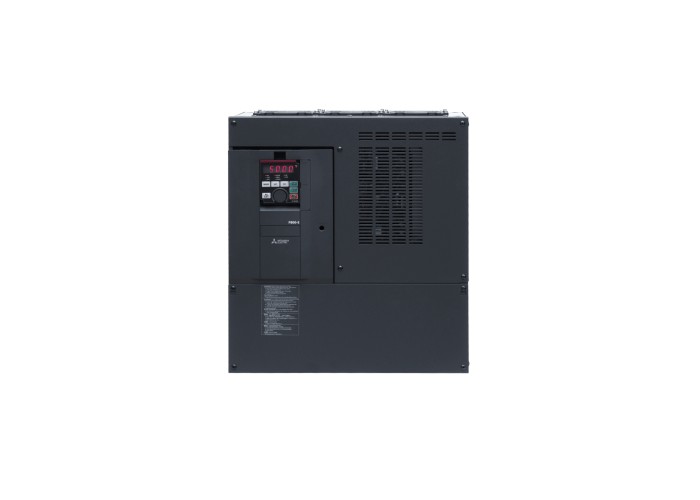

Mitsubishi Electric FR-F840-01160-E2-60 Инвертор (Честотен регулатор), Rated Power: 55kW, 3x380-500V,In max: 116A,(55kW, 116A),IP00

Детайлна информация

Inverter

SeriesFR-F800 SERIES

TypeFR-F800-E INVERTER

Minimum Rated Voltage (V)380

Min. Permissible Voltage (V)323

Maximum Rated Voltage (V)500

Max. Permissible Voltage (V)550

Current TypeAC

Phases3

Rated Output Current SLD (A)116

Rated Output Current LD (A)106

Rated Motor Capacity SLD (kW)55

Rated Motor Capacity LD (kW)55

Control MethodV/F CONTROLSOFT-PWM/HIGH FREQUENCY PWMPM SENSORLESS VECTOR CONTROLMAGNETIC FLUX VECTOR CONTROL

Motor TypeINDUCTION MOTOR, PM MOTOR

Integrated EMC FilterYES

Safe Torque Off (STO)YES

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayFR-DU08

Display Type5 DIGITS LED (12 SEGMENT)

PLC FunctionYES

Program Memory6K

Program Memory UnitSTEPS

Integrated Digital Inputs12

Digital Outputs (Transistor)5

Digital Outputs (Relay)2

Integrated Analogue Inputs3

Integrated Analogue Outputs2

IO Type of Terminal BlockSPRING CLAMP

ExpandableYES

USB1+1 MINI

Ethernet Port1

Built-In NetworkCC-LINK IE FIELD NETWORK BASICiQSSSLMPMELSOFT/FAMODBUS/TCPBACNET/IP

Leakage Current (mA)35(DELTA) / 2(STAR)

Power Loss SLD (W)1340

Power Loss LD (W)1220

Standby Power Consumption (W)28

Protection ClassIP00

Frequency Range (Hz)0,2–590

Product Dimensions & Weight

Width (mm)435

Height (mm)550

Depth (mm)250

Weight (kg)41
