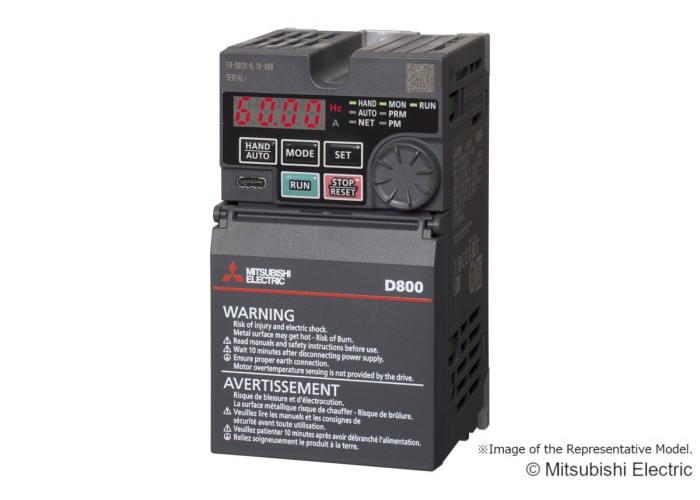

Инвертор (Честотен регулатор), 5.5kW, 400V class, 12.0A, Coated, Mitsubishi Electric FR-D840-5.5K-120-60

Детайлна информация

Inverter

SeriesFR-D800 SERIES

TypeFR-D800 COMPACT INVERTER

Minimum Rated Voltage (V)380

Min. Permissible Voltage (V)323

Maximum Rated Voltage (V)480

Max. Permissible Voltage (V)528

Current TypeAC

Phases3

Rated Output Current SLD (A)16,3

Rated Output Current LD (A)-

Rated Output Current ND (A)12,0

Rated Output Current HD (A)-

Rated Motor Capacity SLD (kW)7,50

Rated Motor Capacity LD (kW)-

Rated Motor Capacity ND (kW)5,5

Rated Motor Capacity HD (kW)-

Control MethodAdv. magnetic flux vectorPM sensorless vector controlV/F control

Motor TypeINDUCTION MOTOR

Brake Chopper ED (%)100

Integrated EMC FilterNO

Safe Torque Off (STO)YES

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayBUILT-IN

Display Type4 DIGITS LED

PLC FunctionNO

Integrated Digital Inputs5

Digital Outputs (Transistor)1

Digital Outputs (Relay)1

Integrated Analogue Inputs-

Integrated Analogue Outputs-

IO Type of Terminal BlockSPRING CLAMP

ExpandableNO

RS-4851

USBTYPE C

Ethernet Port-

Built-In NetworkMODBUS RTUCC-Link IE Field Network BasicCC-Link IE TSN

Leakage Current (mA)-

Protection ClassIP20

Frequency Range (Hz)0,2 TO 590 HZ

Product Dimensions & Weight

Width (mm)220

Height (mm)152

Depth (mm)155

Weight (kg)2,3
