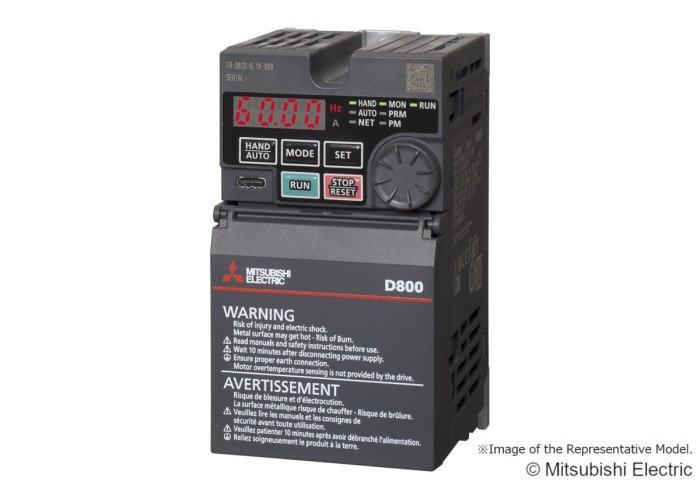

Инвертор (Честотен регулатор), 0.75kW, 200V class, Single-Phase Input, 4.2A, PROFINET, Coated, Mitsubishi Electric FR-D820S-0.75K-042-EPB-60

Детайлна информация

Inverter

SeriesFR-D800 SERIES

TypeFR-D800 COMPACT INVERTER

Minimum Rated Voltage (V)200

Min. Permissible Voltage (V)170

Maximum Rated Voltage (V)240

Max. Permissible Voltage (V)264

Current TypeAC

Phases1

Rated Output Current SLD (A)-

Rated Output Current LD (A)-

Rated Output Current ND (A)4,2

Rated Output Current HD (A)-

Rated Motor Capacity SLD (kW)-

Rated Motor Capacity LD (kW)-

Rated Motor Capacity ND (kW)0,75

Rated Motor Capacity HD (kW)-

Control MethodAdv. magnetic flux vectorPM sensorless vector controlV/F control

Motor TypeINDUCTION MOTOR

Brake Chopper ED (%)100

Integrated EMC FilterNO

Safe Torque Off (STO)YES

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayBUILT-IN

Display Type4 DIGITS LED

PLC FunctionNO

Integrated Digital Inputs5

Digital Outputs (Transistor)1

Digital Outputs (Relay)1

Integrated Analogue Inputs-

Integrated Analogue Outputs-

IO Type of Terminal BlockSPRING CLAMP

ExpandableNO

RS-485-

USBTYPE C

Ethernet Port1

Built-In NetworkMODBUS RTUPROFINETCC-Link IE Field Network BasicCC-Link IE TSN

Leakage Current (mA)-

Protection ClassIP20

Frequency Range (Hz)0,2 TO 590 HZ

Product Dimensions & Weight

Width (mm)68

Height (mm)128

Depth (mm)142,5

Weight (kg)0,8
