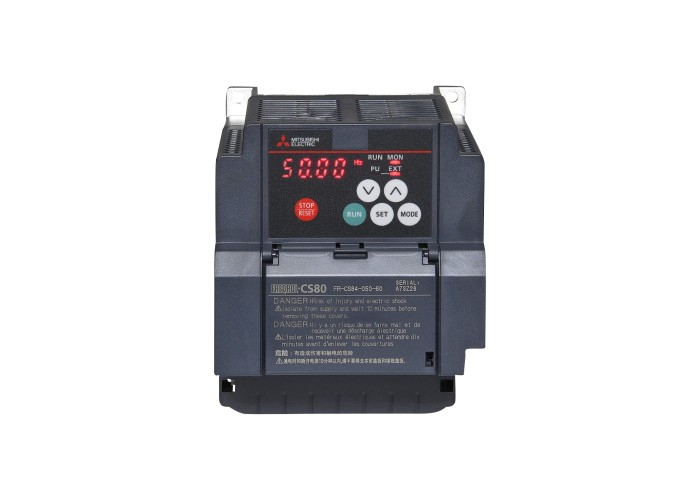

Инвертор (Честотен регулатор) 2,2kW 3x380-480V Rated Current: 5A IP20, Mitsubishi Electric FR-CS84-050-60

Детайлна информация

Inverter

SeriesFR-CS80 SERIES

TypeFR-CS84 COMPACT INVERTER

Minimum Rated Voltage (V)380

Min. Permissible Voltage (V)323

Maximum Rated Voltage (V)480

Max. Permissible Voltage (V)550

Current TypeAC

Phases3

Rated Output Current ND (A)5

Rated Motor Capacity ND (kW)2,2

Control MethodADVANCED MAGN. FLUX VEC. CTRL

Motor TypeINDUCTION MOTOR

Integrated EMC FilterNO

Safe Torque Off (STO)NO

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayFR-LU08

Display Type4 DIGITS LED

PLC FunctionNO

Integrated Digital Inputs5

Digital Outputs (Transistor)1

Digital Outputs (Relay)0

Integrated Analogue Inputs2

Integrated Analogue Outputs0

IO Type of Terminal BlockSPRING CLAMP

ExpandableYES

RS-4851

USBNO

Ethernet PortNO

Built-In NetworkMODBUS-RTU

Leakage Current (mA)1

Power Loss ND (W)75

Standby Power Consumption (W)-

Protection ClassIP20

Frequency Range (Hz)0,2–400

Product Dimensions & Weight

Width (mm)108

Height (mm)96

Depth (mm)130

Weight (kg)0,9
